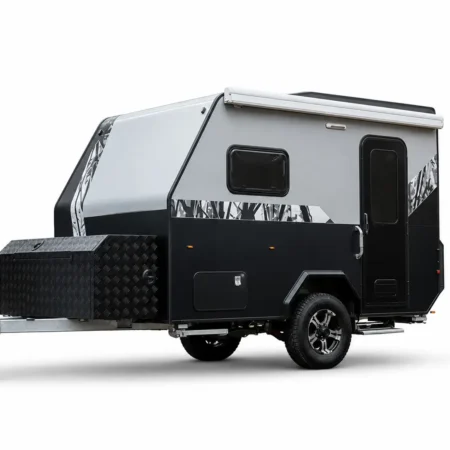

KKT-Atlas 11ft Plus Caravan
Original price was: $39,900.00.$35,900.00Current price is: $35,900.00.
Price shown before selected options, registration and branch transfer costs.
CONFIGURE YOUR TRAILER
Choose your pickup location, accessories and registration options below.
Order summary

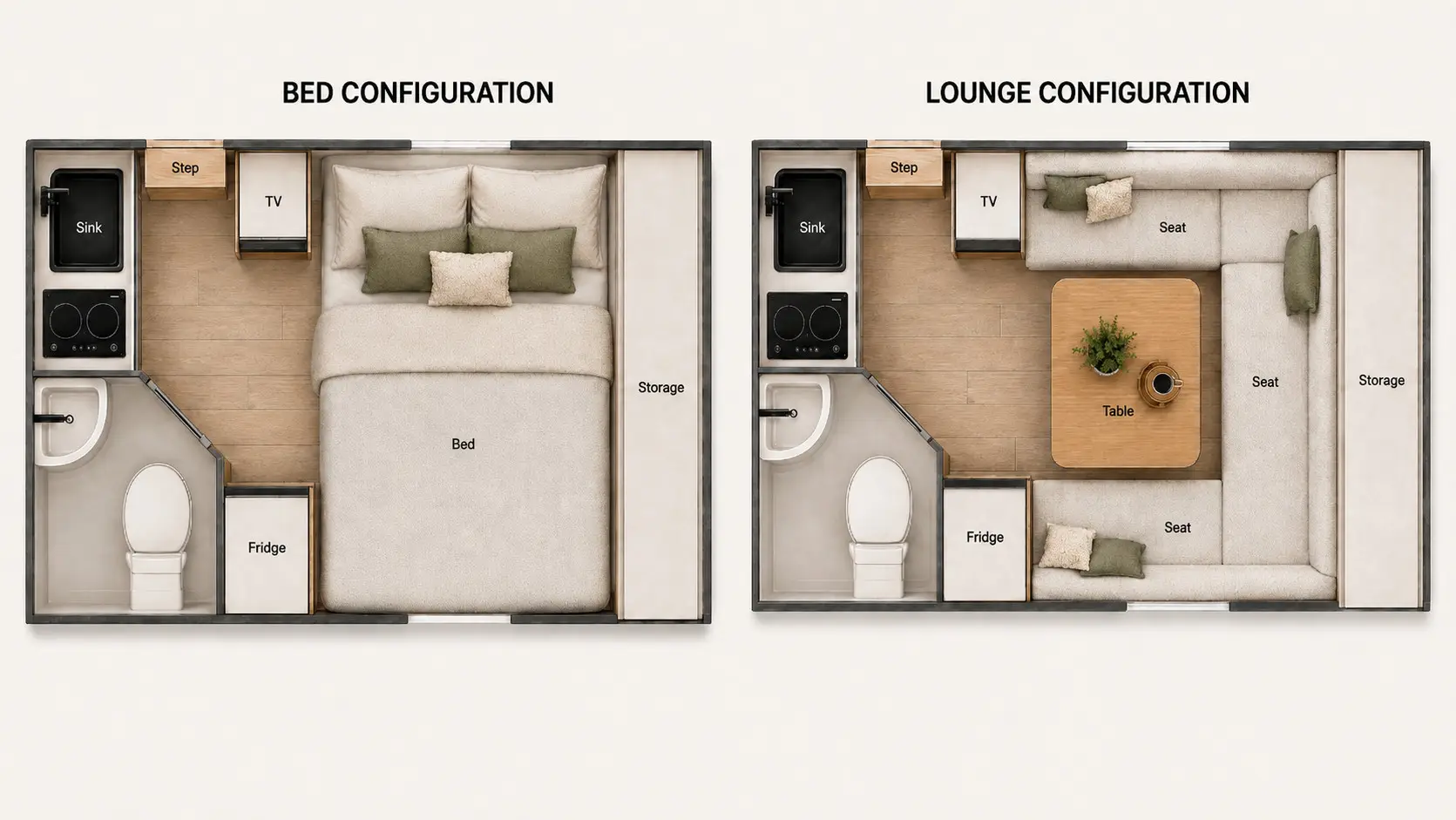

Explore the Floor Plan
View the layout at a glance and understand how the available space is organised before seeing the product in person.
Everything You Need to Know
Explore the features, construction and equipment that make this model ready for the road.
Compact Touring for Two
The KKT-Atlas 11ft Plus Caravan is designed for couples and solo travellers who want a compact on-road caravan without giving up the everyday comforts needed for regular touring.
Its 11ft hard top body provides a practical balance between interior usability, towing manageability and storage convenience.
With a 1900kg ATM, 1400kg tare weight and a calculated load capacity of approximately 500kg, the Atlas 11ft Plus is suitable for weekend escapes, regional road trips and holiday park travel.

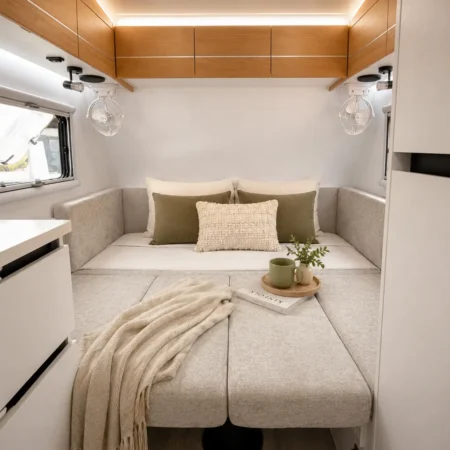

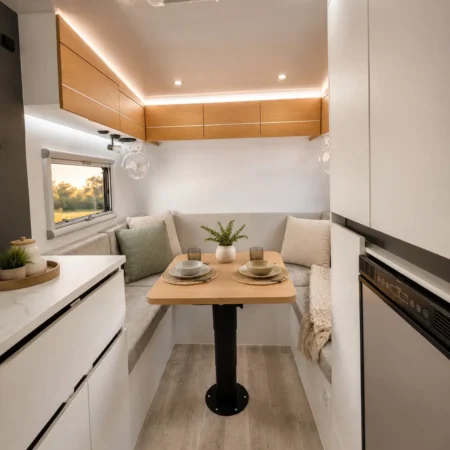

Flexible Lounge and Sleeping Area

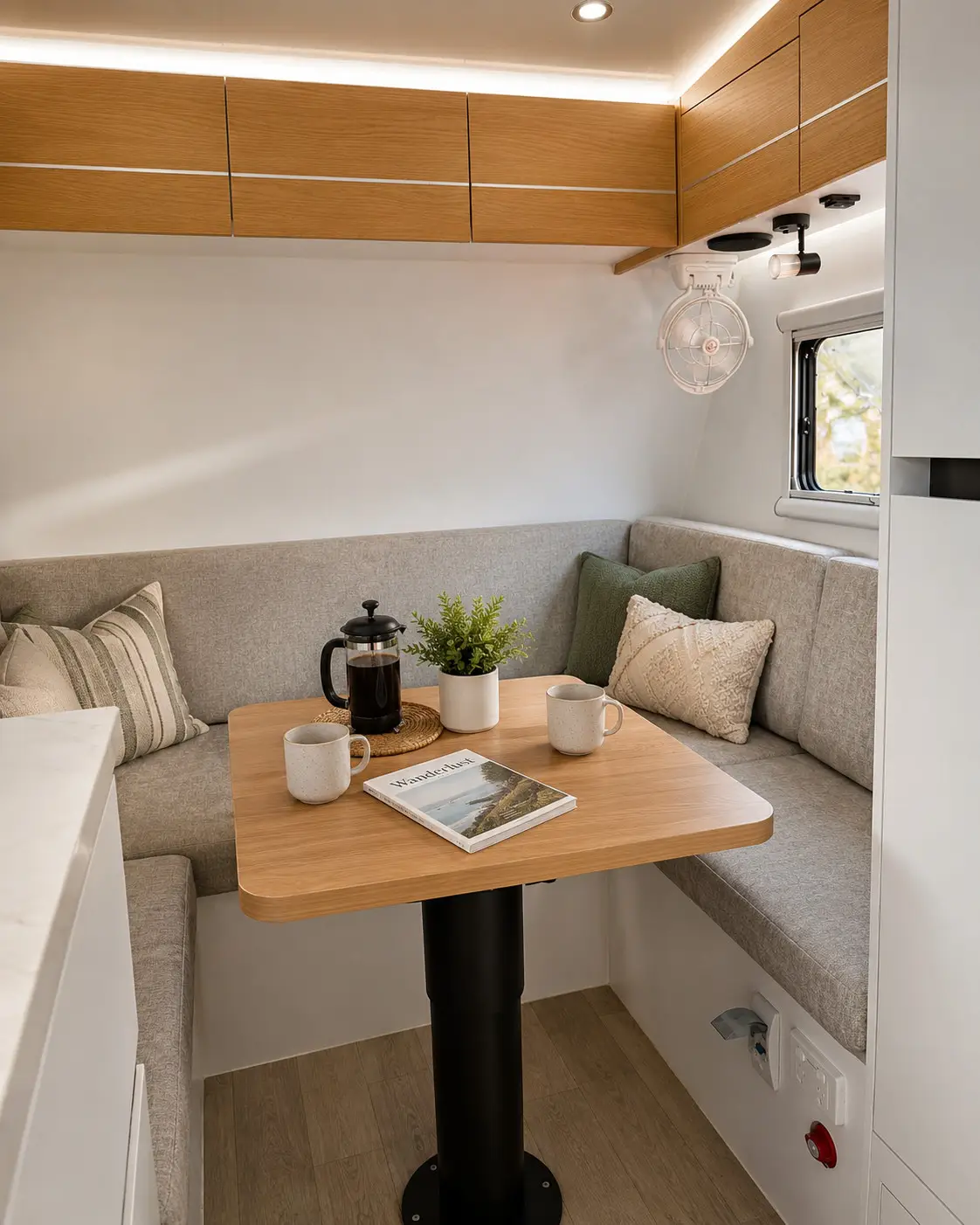

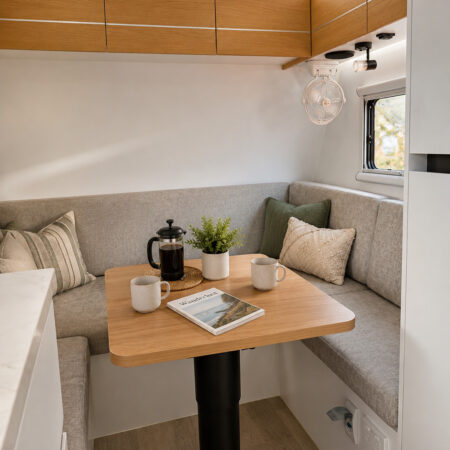

The interior features a comfortable U-shape lounge with cushions and a movable table.

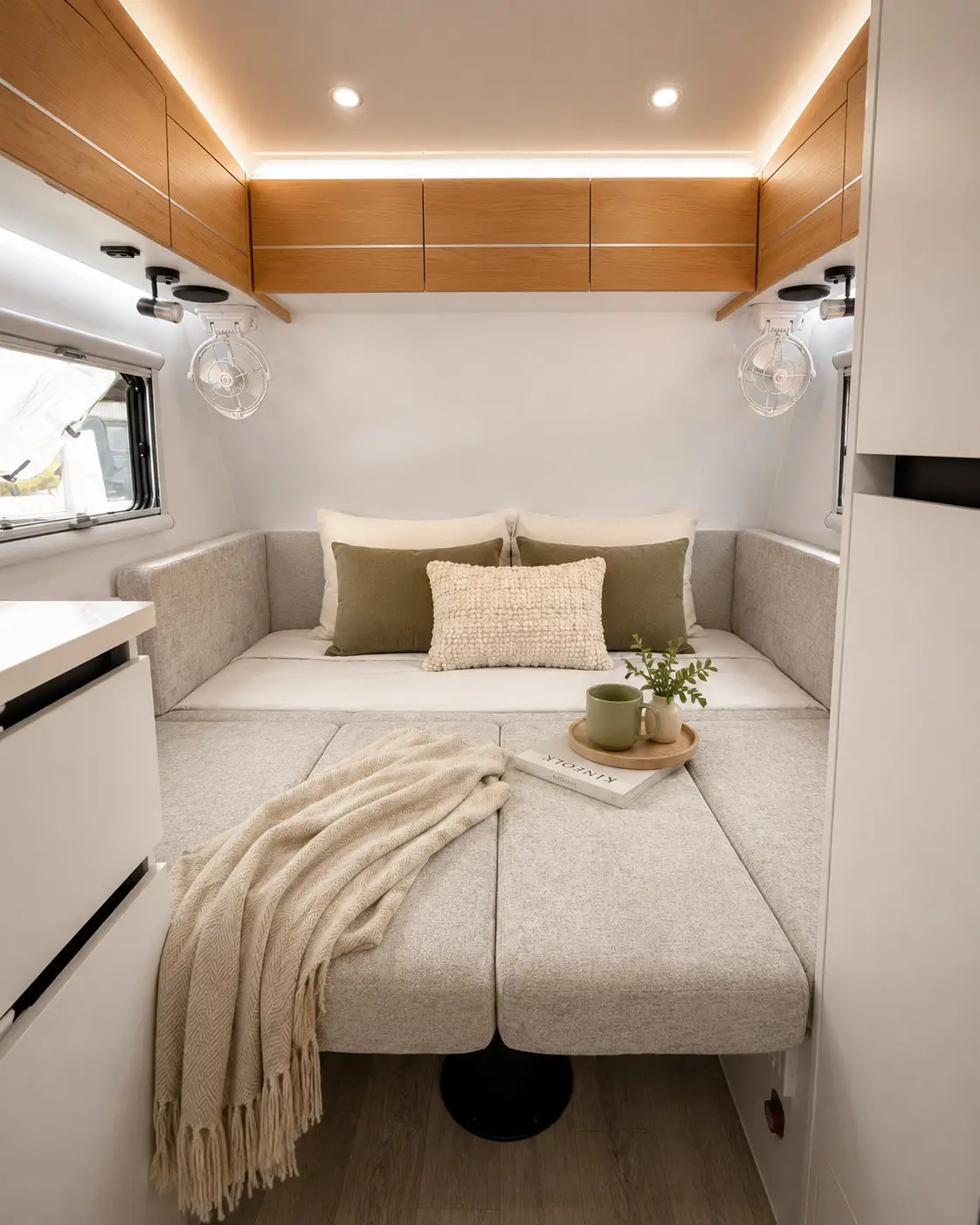

When required, the lounge converts into a generous 2000 × 1600mm bed, allowing the same space to function as both a daytime living area and a comfortable sleeping area for two people.
Under-seat storage and three internal utility drawers provide practical space for travel essentials and personal items.

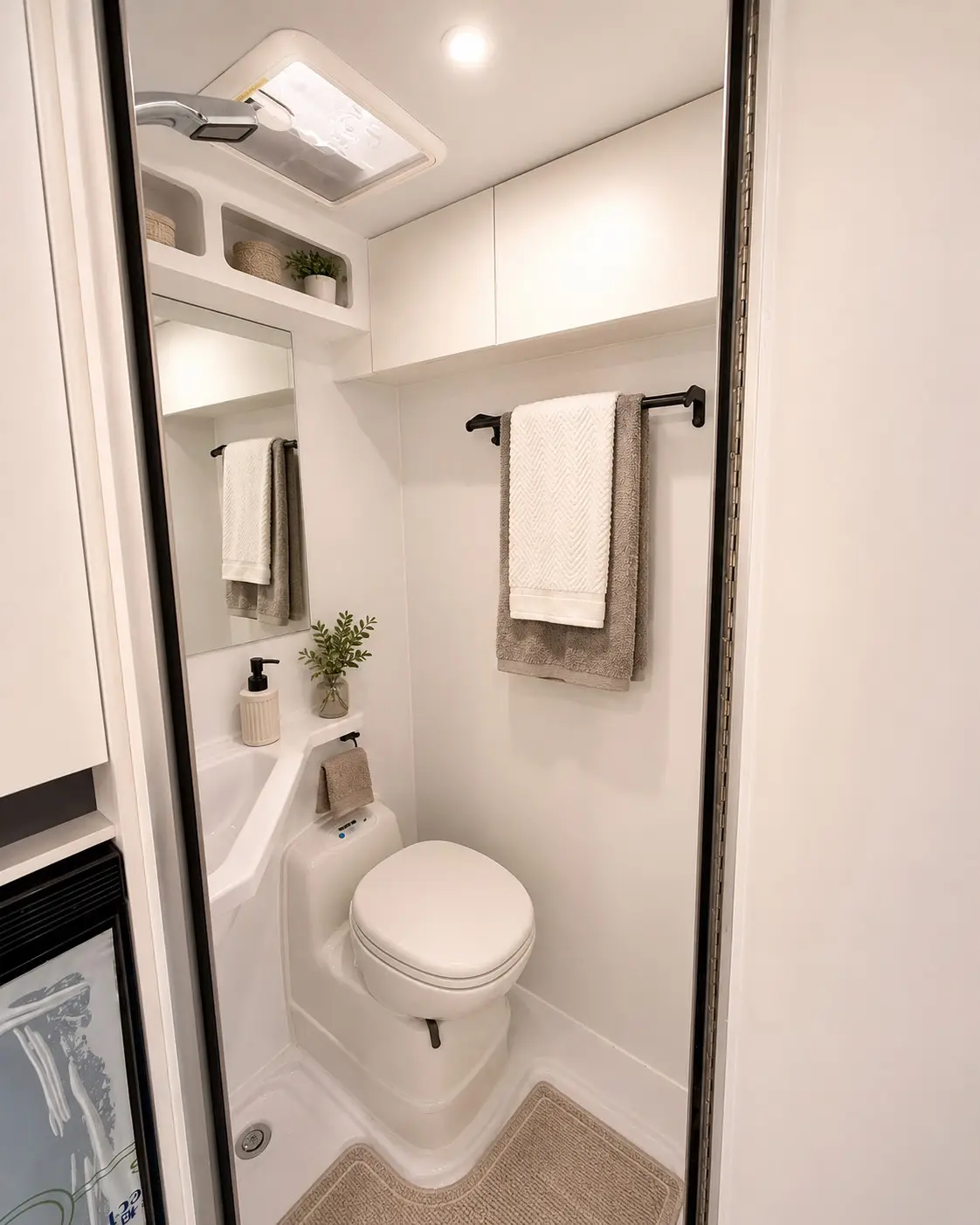

Built-In Ensuite
The Atlas 11ft Plus includes a built-in shower and toilet area, providing greater privacy and convenience while travelling.
The ensuite includes:
- Thetford toilet
- Multifunctional shower tap
- Hot and cold water access
- Dedicated grey water storage
This self-contained layout reduces reliance on shared campsite facilities.

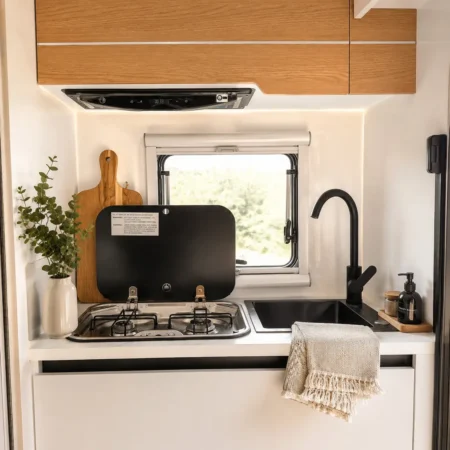

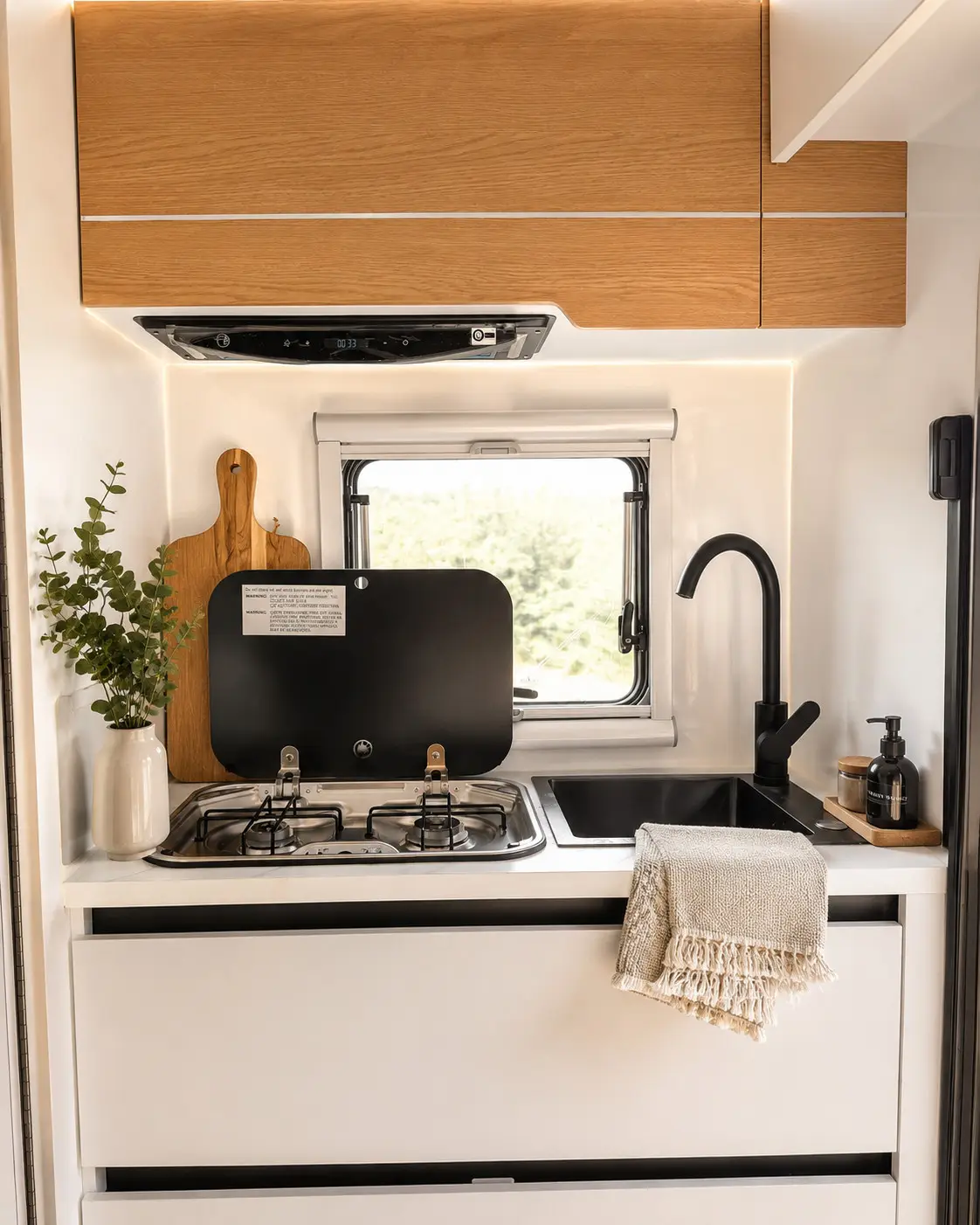

Practical Kitchen Facilities

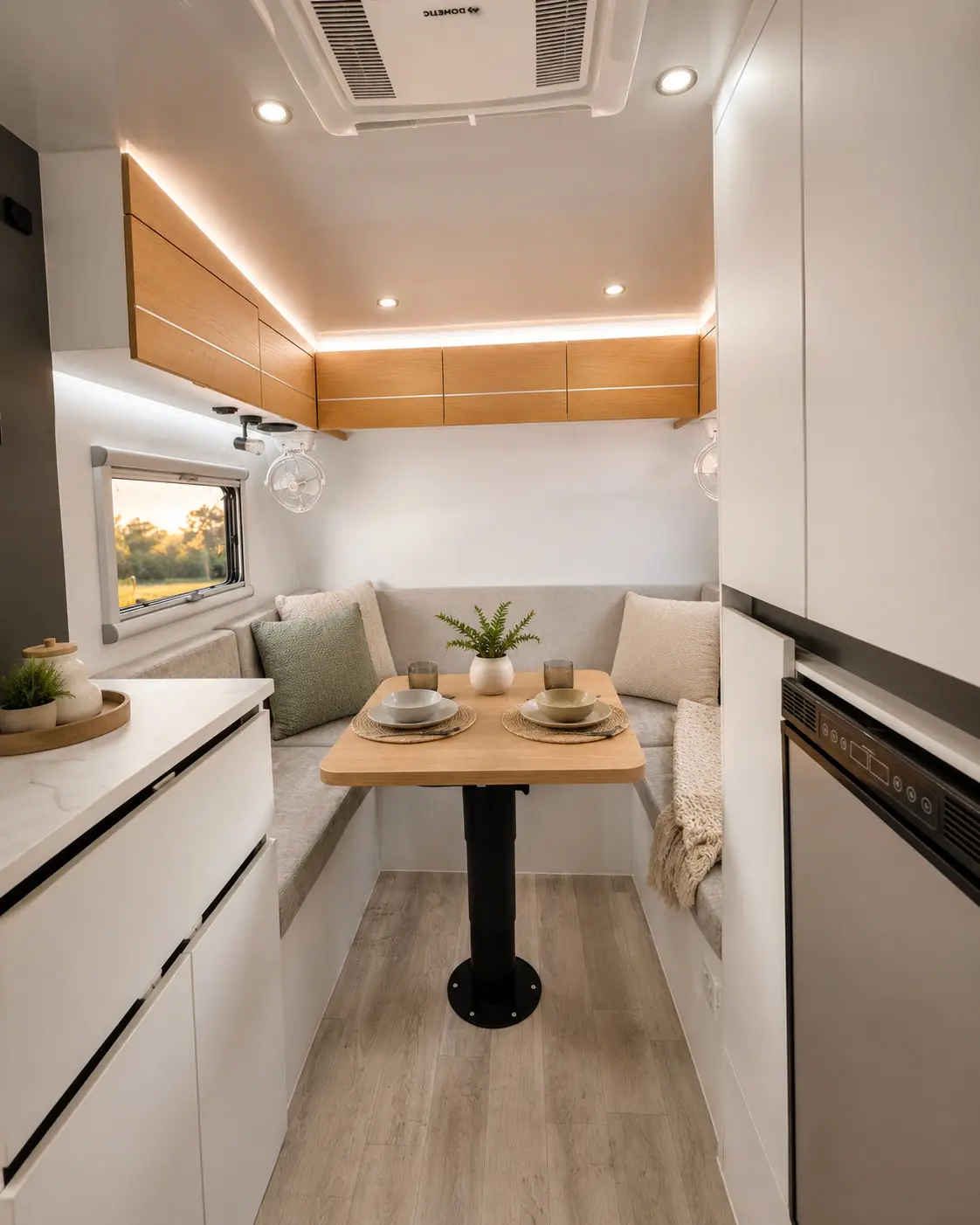

The kitchen area includes the essential equipment required for preparing meals while travelling.
Standard kitchen equipment includes:
- Two-burner gas stove
- Kitchen sink
- 72L 12V RV fridge
- Truma Ultrarapid LPG/electric 14L hot water system
- Standard 12V water pump
The kitchen layout supports straightforward food preparation and everyday campsite use.
Power and Solar Setup
The caravan is fitted with a 200W solar panel, 100Ah lithium battery and Projecta PM435C battery management system.
This setup supports the caravan’s 12V systems, lighting, fridge and selected onboard equipment while helping maintain battery charge during suitable solar conditions.
Air conditioning is included as standard for improved comfort during warmer travel conditions.
Water Storage
The Atlas 11ft Plus includes:
- 80L fresh water tank
- 80L grey water tank
- Standard 12V water pump
- 14L LPG/electric hot water system
These systems support the kitchen, shower and general water requirements during travel.
Galvanised Chassis Construction
The drawbar and chassis are manufactured from 100 × 50 × 3.0mm Q345 steel and are fully welded and galvanised.
This construction provides a strong structural foundation for regular on-road touring and helps protect the steel against corrosion and outdoor exposure.
Stable On-Road Running Gear
The caravan uses a 2.5-tonne torsion axle with an electric braking system.
The running gear includes:
- 10-inch electric brakes
- Hand brake
- 195 R15 tyres
- Alloy rims
- 3.5-tonne Australian casting coupler
- Heavy-duty 8-inch jockey wheel
- Two ADR-compliant safety chains
This setup supports stable and controlled on-road towing when correctly matched to a suitable tow vehicle.
Outdoor Living and Campsite Setup
A windout Solflex awning provides a sheltered outdoor living area.
Four heavy-duty drop-down stabiliser legs help support the caravan when parked, while the manual pull-out step provides easier entry and exit.
External courtesy lighting also assists with visibility around the caravan after dark.
Full Specifications
Review the complete specifications and equipment details for this model.
Specifications may vary between individual units and production updates. Contact our team if you require confirmation of a specific feature or measurement.
