EOFY Offer Notice: Only one EOFY promotion can be applied per trailer purchase. Offers, discounts, free selected toolbox and free spare wheel promotions cannot be combined.
-
Product Description

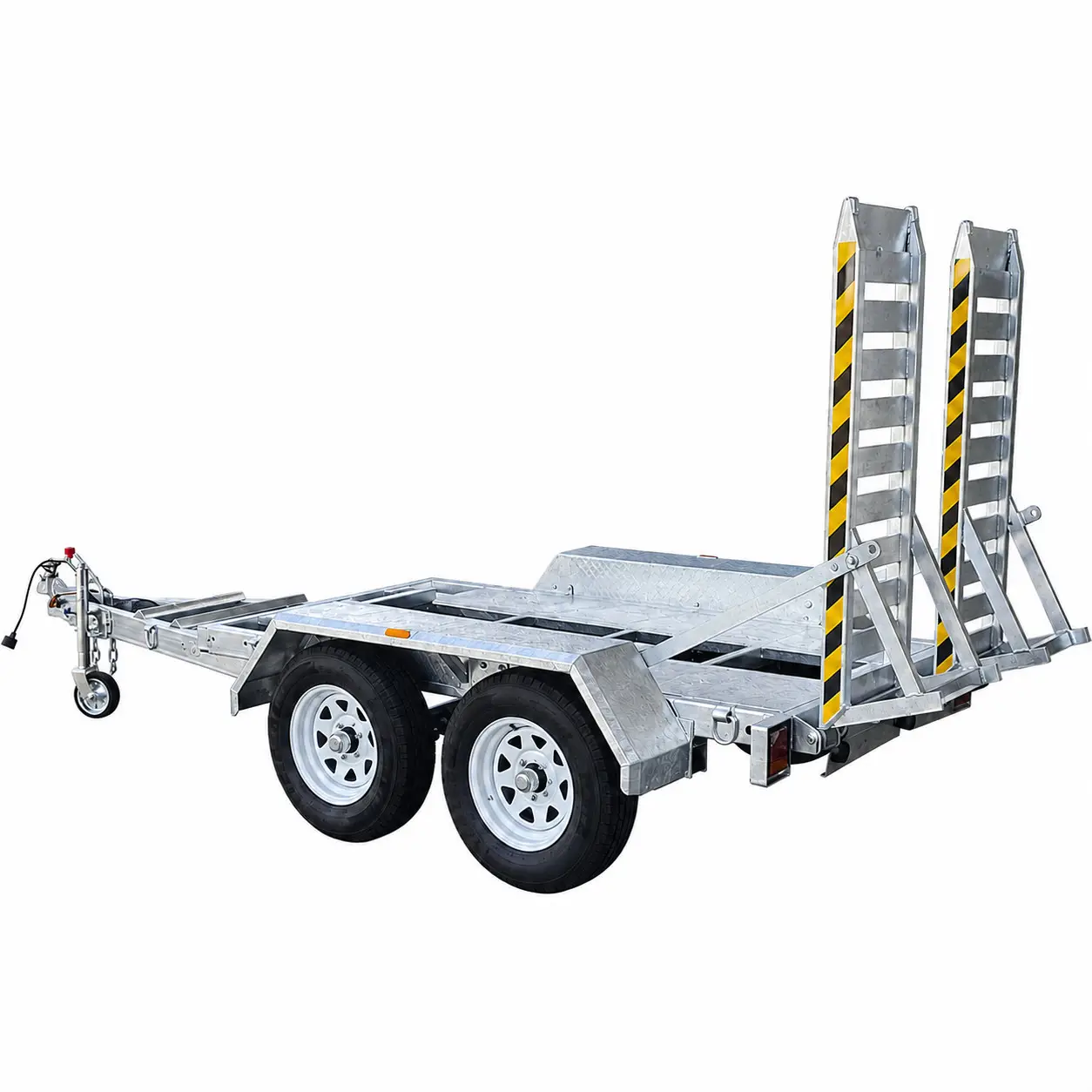

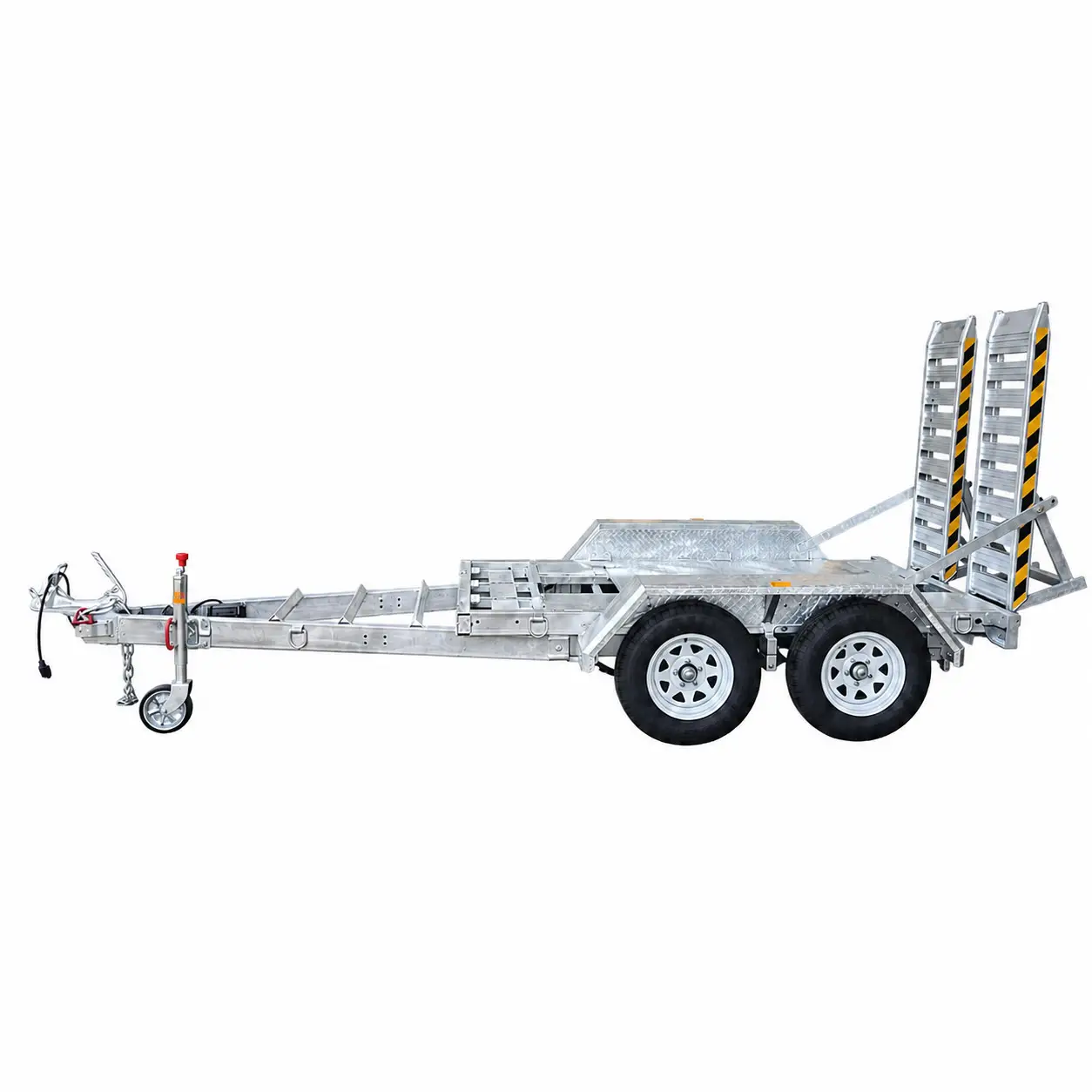

Discover the King Kong Trailers compact Mini Excavator Plant Trailer, designed for builders, landscapers, contractors and machinery operators who need a practical and reliable transport solution for smaller plant equipment.
Featuring a usable deck size of 2400mm × 1235mm, this tandem axle plant trailer is suitable for transporting selected mini excavators, trench rollers, compact loaders and other small machinery.
Available with either 2000kg or 3000kg ATM, customers can choose the model that best suits the weight and specifications of their equipment.
The fully welded hot-dip galvanised steel chassis provides strength, durability and corrosion resistance, while the checker plate floor offers a tough and practical loading surface for regular commercial use.
Two lightweight heavy-duty aluminium loading ramps are included, allowing machinery to be safely loaded and unloaded from the rear of the trailer.
-
Specifications
Specifications Details Model KKT Plant Trailer Trailer Type Tandem Axle Plant Trailer ATM 2000kg / 3000kg Usable Deck Size 2400mm × 1235mm Tare Weight Approx. 570kg – 3000kg ATM Model Carrying Capacity Approx. 2430kg – 3000kg ATM Model Construction Fully Welded Hot-Dip Galvanised Steel Flooring Checker Plate Floor Drawbar 120mm × 50mm × 4mm Axles Dual Axle Suspension Rocker Roller Suspension 2000kg ATM Brakes Mechanical Disc Brakes 3000kg ATM Brakes 10-Inch Electric Brakes Bearings Parallel Bearings – 3000kg ATM Model Loading Ramps 2 × Heavy-Duty Aluminium Ramps Ramp Size 1500mm × 460mm Each Ramp Load Capacity Up to 2000kg Jockey Wheel Swing-Up Jockey Wheel Lights LED Lights Trailer Plug 7-Pin Plug Safety Chains Heavy-Duty Hammerlock-Connected Safety Chains Attachment Brackets Optional Suitable For Mini Excavators, Trenchers, Skid Steers and Compact Machinery -
Suitable Applications
This compact plant trailer may be suitable for transporting:
- Mini excavators
- Trench rollers
- Compact loaders
- Small skid steers
- Landscaping machinery
- Agricultural equipment
- Construction equipment
- Pressure washers
- Chippers and shredders
The 2000kg ATM model is generally suited to lighter machinery, while the 3000kg ATM model provides increased carrying capacity for heavier equipment.
Customers must confirm the machine’s total operating weight, track width, overall dimensions and weight distribution before purchasing.
2000kg and 3000kg ATM Options
The trailer is available in two ATM configurations:
2000kg ATM Model
The 2000kg ATM model is fitted with a mechanical disc braking system and is suitable for selected lighter mini excavators and compact machinery.
3000kg ATM Model
The upgraded 3000kg ATM model is fitted with 10-inch electric brakes and parallel bearings.
The 3000kg ATM model has an approximate tare weight of 570kg and an approximate carrying capacity of 2430kg.
An electric brake controller must be fitted to the towing vehicle when towing the electric-braked model.
Aluminium Loading Ramps Included
Two heavy-duty aluminium loading ramps are included with the trailer.
Each ramp measures approximately:
- 1500mm long
- 460mm wide
The ramp set is rated to carry up to 2000kg, subject to correct positioning, loading procedures and even weight distribution.
The aluminium construction provides a strong but lightweight loading solution that can be handled more easily than traditional steel ramps.
Tandem Axle and Rocker Roller Suspension
The tandem axle design provides improved load distribution and towing stability compared with a single axle trailer.
Rocker roller suspension helps the wheels follow uneven surfaces and distributes the load between both axles, making the trailer suitable for regular commercial use and work-site conditions.
Heavy-Duty Galvanised Construction
The trailer features:
- Fully welded body and chassis
- Hot-dip galvanised steel construction
- Checker plate flooring
- Heavy-duty drawbar
- Hammerlock-connected safety chains
- Multiple machinery tie-down locations
- Swing-up jockey wheel
- LED trailer lights
- 7-pin trailer plug
Optional attachment holders can also be added to provide storage for excavator buckets and other machinery attachments.
-
Why Choose KING KONG TRAILERS?
At King Kong Trailers, our trailers are strong, durable and built to handle demanding Australian work conditions.
Manufactured using quality materials and practical designs, our trailers provide reliable transport solutions for builders, landscapers, contractors, machinery operators and commercial fleets.
We also offer:
- Flexible payment options
- On-site registration
- Multiple NSW and ACT pickup locations
- Bulk stock availability
- Spare parts and accessories
- Dedicated customer support
- Structural and parts warranty coverage
Get the job done right with a King Kong Trailer.
Contact our team on 1300 311 333 or visit one of our branches:
- Sydney: 3 Peachtree Road, Penrith NSW 2750
- Central Coast: 252 Manns Road, West Gosford NSW 2250
- Newcastle/Hunter: 382 Pacific Highway, Belmont North NSW 2280
- Canberra: 9 Aurora Avenue, Queanbeyan East NSW 2620
- Dubbo: 17 Depot Road, Dubbo NSW 2830
-
Additional Options
Additional options are calculated separately:
- Upgrade from 2000kg ATM to 3000kg ATM
- Spare wheel
- Spare wheel bracket
- Attachment holder set
- Undertray toolbox
- On-site administration
- Blue slip
- Private registration
- Business registration
- Regional branch freight
- Alternative trailer plug where available
Accessories and upgrade options are subject to stock availability and trailer compatibility.
-
Important Information
Customers must confirm that the trailer is suitable for their machinery before purchasing.
Please check:
- Machine operating weight
- Attachment and bucket weight
- Machine track width
- Overall machine length
- Weight distribution
- Trailer carrying capacity
- Tow vehicle towing capacity
- Towbar capacity
- Ball load
- Electric brake controller requirements
The stated load capacity is calculated by subtracting the trailer’s tare weight from its ATM.
Actual tare weight may vary due to manufacturing tolerances, registration requirements and accessories fitted to the trailer.
Product images are for illustration purposes only. Accessories or optional equipment displayed in photographs may not be included.
Specifications and product features may change without notice. Please confirm all details with our sales team before placing an order.
-
Warranty
- 5-Year Structural Warranty on all brand-new trailers. This warranty excludes surface rust, mistreatment, accidental damage, overloading and misuse.
- 1-Year Warranty on leaf springs, lights, wiring, jockey wheel and all other parts.
- Customers must bring the trailer to an authorised King Kong Trailers location for inspection and warranty maintenance.
- Warranty coverage does not apply to second-hand or used trailers or goods.
- Warranty does not cover normal wear and tear, abrasion, tyres, wheels, accidental damage, misuse or a lack of proper maintenance.
- Unauthorised modifications may void the trailer warranty.
- Labour, transport costs and consequential damage are not covered unless otherwise confirmed in writing by King Kong Trailers Pty Ltd.
KKT-PT84U2000M – 8 x 4 Galvanized Plant Trailer 2000KG ATM – Monocoque Chassis
From
$5,900.00
Please note: Cage, spare wheels and all other accessories, regional freights are calculated separately. For more information check our forms below.
Buy Now, Pay Later
Register & Go In 30 Minutes
12 Month Warranty
Apply with FASTR Finance
Repayments Calculator
Heavy-duty tandem axle plant trailer designed for transporting mini excavators, trench rollers and compact machinery.
Available in 2000kg or 3000kg ATM, with a 2400mm × 1235mm usable deck and two heavy-duty aluminium loading ramps included.[grw id=”4432″]
-
Product Description
Discover the King Kong Trailers compact Mini Excavator Plant Trailer, designed for builders, landscapers, contractors and machinery operators who need a practical and reliable transport solution for smaller plant equipment.
Featuring a usable deck size of 2400mm × 1235mm, this tandem axle plant trailer is suitable for transporting selected mini excavators, trench rollers, compact loaders and other small machinery.
Available with either 2000kg or 3000kg ATM, customers can choose the model that best suits the weight and specifications of their equipment.
The fully welded hot-dip galvanised steel chassis provides strength, durability and corrosion resistance, while the checker plate floor offers a tough and practical loading surface for regular commercial use.
Two lightweight heavy-duty aluminium loading ramps are included, allowing machinery to be safely loaded and unloaded from the rear of the trailer.
-
Specifications
Specifications Details Model KKT Plant Trailer Trailer Type Tandem Axle Plant Trailer ATM 2000kg / 3000kg Usable Deck Size 2400mm × 1235mm Tare Weight Approx. 570kg – 3000kg ATM Model Carrying Capacity Approx. 2430kg – 3000kg ATM Model Construction Fully Welded Hot-Dip Galvanised Steel Flooring Checker Plate Floor Drawbar 120mm × 50mm × 4mm Axles Dual Axle Suspension Rocker Roller Suspension 2000kg ATM Brakes Mechanical Disc Brakes 3000kg ATM Brakes 10-Inch Electric Brakes Bearings Parallel Bearings – 3000kg ATM Model Loading Ramps 2 × Heavy-Duty Aluminium Ramps Ramp Size 1500mm × 460mm Each Ramp Load Capacity Up to 2000kg Jockey Wheel Swing-Up Jockey Wheel Lights LED Lights Trailer Plug 7-Pin Plug Safety Chains Heavy-Duty Hammerlock-Connected Safety Chains Attachment Brackets Optional Suitable For Mini Excavators, Trenchers, Skid Steers and Compact Machinery -
Suitable Applications
This compact plant trailer may be suitable for transporting:
- Mini excavators
- Trench rollers
- Compact loaders
- Small skid steers
- Landscaping machinery
- Agricultural equipment
- Construction equipment
- Pressure washers
- Chippers and shredders
The 2000kg ATM model is generally suited to lighter machinery, while the 3000kg ATM model provides increased carrying capacity for heavier equipment.
Customers must confirm the machine’s total operating weight, track width, overall dimensions and weight distribution before purchasing.
2000kg and 3000kg ATM Options
The trailer is available in two ATM configurations:
2000kg ATM Model
The 2000kg ATM model is fitted with a mechanical disc braking system and is suitable for selected lighter mini excavators and compact machinery.
3000kg ATM Model
The upgraded 3000kg ATM model is fitted with 10-inch electric brakes and parallel bearings.
The 3000kg ATM model has an approximate tare weight of 570kg and an approximate carrying capacity of 2430kg.
An electric brake controller must be fitted to the towing vehicle when towing the electric-braked model.
Aluminium Loading Ramps Included
Two heavy-duty aluminium loading ramps are included with the trailer.
Each ramp measures approximately:
- 1500mm long
- 460mm wide
The ramp set is rated to carry up to 2000kg, subject to correct positioning, loading procedures and even weight distribution.
The aluminium construction provides a strong but lightweight loading solution that can be handled more easily than traditional steel ramps.
Tandem Axle and Rocker Roller Suspension
The tandem axle design provides improved load distribution and towing stability compared with a single axle trailer.
Rocker roller suspension helps the wheels follow uneven surfaces and distributes the load between both axles, making the trailer suitable for regular commercial use and work-site conditions.
Heavy-Duty Galvanised Construction
The trailer features:
- Fully welded body and chassis
- Hot-dip galvanised steel construction
- Checker plate flooring
- Heavy-duty drawbar
- Hammerlock-connected safety chains
- Multiple machinery tie-down locations
- Swing-up jockey wheel
- LED trailer lights
- 7-pin trailer plug
Optional attachment holders can also be added to provide storage for excavator buckets and other machinery attachments.
-
Why Choose KING KONG TRAILERS?
At King Kong Trailers, our trailers are strong, durable and built to handle demanding Australian work conditions.
Manufactured using quality materials and practical designs, our trailers provide reliable transport solutions for builders, landscapers, contractors, machinery operators and commercial fleets.
We also offer:
- Flexible payment options
- On-site registration
- Multiple NSW and ACT pickup locations
- Bulk stock availability
- Spare parts and accessories
- Dedicated customer support
- Structural and parts warranty coverage
Get the job done right with a King Kong Trailer.
Contact our team on 1300 311 333 or visit one of our branches:
- Sydney: 3 Peachtree Road, Penrith NSW 2750
- Central Coast: 252 Manns Road, West Gosford NSW 2250
- Newcastle/Hunter: 382 Pacific Highway, Belmont North NSW 2280
- Canberra: 9 Aurora Avenue, Queanbeyan East NSW 2620
- Dubbo: 17 Depot Road, Dubbo NSW 2830
-
Additional Options
Additional options are calculated separately:
- Upgrade from 2000kg ATM to 3000kg ATM
- Spare wheel
- Spare wheel bracket
- Attachment holder set
- Undertray toolbox
- On-site administration
- Blue slip
- Private registration
- Business registration
- Regional branch freight
- Alternative trailer plug where available
Accessories and upgrade options are subject to stock availability and trailer compatibility.
-
Important Information
Customers must confirm that the trailer is suitable for their machinery before purchasing.
Please check:
- Machine operating weight
- Attachment and bucket weight
- Machine track width
- Overall machine length
- Weight distribution
- Trailer carrying capacity
- Tow vehicle towing capacity
- Towbar capacity
- Ball load
- Electric brake controller requirements
The stated load capacity is calculated by subtracting the trailer’s tare weight from its ATM.
Actual tare weight may vary due to manufacturing tolerances, registration requirements and accessories fitted to the trailer.
Product images are for illustration purposes only. Accessories or optional equipment displayed in photographs may not be included.
Specifications and product features may change without notice. Please confirm all details with our sales team before placing an order.
-
Warranty
- 5-Year Structural Warranty on all brand-new trailers. This warranty excludes surface rust, mistreatment, accidental damage, overloading and misuse.
- 1-Year Warranty on leaf springs, lights, wiring, jockey wheel and all other parts.
- Customers must bring the trailer to an authorised King Kong Trailers location for inspection and warranty maintenance.
- Warranty coverage does not apply to second-hand or used trailers or goods.
- Warranty does not cover normal wear and tear, abrasion, tyres, wheels, accidental damage, misuse or a lack of proper maintenance.
- Unauthorised modifications may void the trailer warranty.
- Labour, transport costs and consequential damage are not covered unless otherwise confirmed in writing by King Kong Trailers Pty Ltd.
