KKT-FT168-4500 - 16×8 Hot-Dip Galvanised Flat Top Trailer 4500kg ATM

01 / 13

SKU KKT-FT168-4500 Category Flat Top Trailers

KKT-FT168-4500 – 16×8 Hot-Dip Galvanised Flat Top Trailer 4500kg ATM

Original price was: $11,199.00.Current price is: $10,899.00.

Price shown before selected options, registration and branch transfer costs.

CONFIGURE YOUR TRAILER

Choose your pickup location, accessories and registration options below.

Choose your preferred pickup location(branches):

Sydney

Gosford (+$150.00)

Newcastle (+$350.00)

Queanbeyan (+$350.00)

Dubbo (+$1,100.00)

Mesh Cage

225R15C Spare Wheel

Spare Wheel Bracket

Heavy Duty Aluminium Loading Ramps

Aluminium Loading Ramps Holder

Blue Slip

Product price:	$10,899.00
Total options:
Order total:

Pay Deposit (10%)
Pay in Full

Pay a 10% deposit per item

Request a Quote

YOUR TRAILER CONFIGURATION

Order summary

KKT-FT168-4500

TRAILER MODEL KKT-FT168-4500 - 16×8 Hot-Dip Galvanised Flat Top Trailer 4500kg ATM

PICKUP BRANCH Select a pickup branch

Selected add-ons 0 items

OPTION SELECTION PRICE

No optional accessories selected.

Flexible finance options Buy now and choose a repayment option that suits you.

Apply with FASTR Repayments Calculator

PRODUCT INFORMATION

KKT-FT168-4500 - 16×8 Hot-Dip Galvanised Flat Top Trailer 4500kg ATM

Compare the product overview, features, specifications, construction, towing setup, available options, warranty and common questions.

4500kg ATM Rating

TBC Approx. Payload

TBC Tare Weight

4720mm × 2320mm × 300mm internal area Trailer Size

5 Years Structural Warranty

Product Overview

Heavy-duty 16×8 galvanised flat top trailer with 4500kg ATM, checker plate floor and removable drop-down gates.

The KKT-FT168-4500 is a tandem axle hot-dip galvanised flat top trailer with a 4500kg ATM.

Its internal loading area measures approximately 4720mm × 2320mm × 300mm, providing a large flat platform for compatible trade, construction, agricultural and commercial transport tasks.

The trailer combines a fully welded hot-dip galvanised body and chassis with removable side and rear drop-down gates, checker plate flooring and tie-down rails.

The tandem axle running gear includes dual 50mm solid round axles, rocker roller suspension, 12-inch electric drum brakes on all four wheels and 195/R15C tyres.

Technical Specifications

Model / SKU	KKT-FT168-4500
3D URL	flat_top
Trailer Type	Flat Top Trailer
Size	16x8
Axle Type	Tandem Axle
ATM	ATM 4500kg
Brake Type	Electric Braked
Body Finish	Hot Dip Galvanised

Build, Capacity & Towing

4500kg ATM

TBC Tare

TBC Approx. Payload

Axle Type

Tandem Axle

Brake Type

Electric Braked

Body Finish

Hot Dip Galvanised

Brakes	Electric Braked
Axle	Tandem Axle

Actual carrying capacity can change when cages, ramps, toolboxes, spare wheels or other accessories are fitted. Always confirm the final trailer setup and your vehicle's towing capacity before use.

Options & Included Equipment

Flat Top Trailer Design

The flat top design provides a wide and practical loading platform for compatible materials, equipment and commercial cargo.

This layout is useful for loading from the side or rear, depending on the type of cargo and loading equipment used.

Removable Side and Rear Drop-Down Gates

The removable side and rear drop-down gates provide flexible access to the trailer body.

The gates can assist with loading and unloading compatible cargo, but must be correctly refitted and secured before towing.

Checker Plate Floor

The checker plate floor provides a durable loading base for trade, construction, farm and general transport applications.

Regular cleaning and inspection are recommended, especially after carrying wet, loose or abrasive materials.

Tie-Down Rails

Tie-down rails provide practical restraint points for compatible cargo and equipment.

All restraints must be appropriately rated and suitable for the intended load.

Electric Brakes

The trailer is fitted with 12-inch electric drum brakes on all four wheels.

A compatible electric brake controller is required in the towing vehicle.

Rocker Roller Suspension

The trailer uses 60mm, 7-leaf, 7mm rocker roller suspension.

This setup is designed for heavy-duty tandem axle trailer applications.

What's Included

KKT-FT168-4500 flat top trailer
Fully welded hot-dip galvanised body and chassis
Checker plate floor
Removable side drop-down gates
Removable rear drop-down gate
Tie-down rails
Tandem axle running gear
Dual 50mm solid round axles
Rocker roller suspension
12-inch electric drum brakes on all four wheels
195/R15C tyres
50mm coupling rated to 3500kg
8-inch swing-up jockey wheel
12V–24V LED lighting system
7-pin trailer plug
Flat, small round and large round plug compatibility
Cargo, machinery, straps, registration and items not specifically listed in the selected configuration or quotation are not included.

The trailer has a maximum 4500kg ATM.
The tare weight for this model has not yet been confirmed.
Final payload should be confirmed against the certified tare weight shown on the compliance plate.
Loads must be evenly distributed and properly secured before towing.
Cargo must be suitable for the trailer size, gate setup and legal loaded weight.
Side and rear gates must be fully secured before towing.
A compatible electric brake controller is required in the towing vehicle.
The towing vehicle and towbar must be rated for the trailer’s actual loaded weight.
Images may show optional equipment or a representative configuration.
Component appearance may vary slightly between production batches.

Warranty & Frequently Asked Questions

5-Year Structural Warranty Applies to the main structural construction of eligible brand-new King Kong Trailers.

1-Year Component Warranty Selected components including leaf springs, lights, wiring and jockey wheels are covered for one year.

Yes. Compatible cages, canvas covers, ladder racks, toolboxes, spare wheels, ramps and other options are shown in the configuration section above. Available options vary by product.

Registration is not automatically included unless it is selected in the configuration. Registration availability, administration charges and branch-related costs depend on the selected pickup location.

Where available, you can choose the deposit option in the purchase section. The remaining balance and payment requirements will be shown or confirmed before pickup.

Choose the branch that is most convenient for you. Product pricing, stock availability, registration services and transfer charges can vary between Sydney / Penrith, Central Coast / Gosford, Newcastle, Canberra / Queanbeyan and Dubbo.

Product images and interactive 3D models are provided for reference. Final details can vary depending on stock, production updates, selected accessories and the final configuration.

Eligible brand-new King Kong trailers include a five-year structural warranty. Selected components, including leaf springs, lights, wiring and jockey wheels, are covered for one year. Terms and conditions apply.

Need help choosing?

Confirm the right setup before you order.

Our team can help confirm the correct product, ATM rating, accessories, registration option, stock and pickup location for your requirements.

Review Configuration Call 1300 311 333

Model Comparison

Compare Similar Models

Compare key specifications across closely related models. The current product is highlighted so you can quickly review size, capacity and running-gear differences.

Swipe or scroll horizontally to compare all models.

Trailer Size

4720mm × 2320mm × 300mm internal area

4720mm × 2320mm × 300mm internal trailer size

2.4m

ATM

4500kg

3500kg

4500kg

Payload

TBC

2140kg

3200kg

Tare Weight

TBC

1360kg

1300kg

Axle

Tandem Axle

Tri-Axle

Brakes

Electric Braked

Best For

Construction material transport, Trade equipment transport

Machinery transport, Pallet transport

Build Details

Built better where it counts.

A closer look at the construction details commonly found across the King Kong Trailers range. Select a feature to explore the materials, structure and practical finishing behind the build.

Selected build detail

Universal Trailer Details

01 / 06

Purchase Experience

From choosing the right setup to collecting with confidence.

A trailer purchase should feel clear from the beginning. Our role is to help remove uncertainty around product choice, final setup and collection, so you know what you are ordering before you arrive.

Three stages. One clear process.

This section focuses only on the buying and handover experience, without repeating specifications, warranty, finance or branch information shown elsewhere.

Choose with clarity

Review the selected model, intended use and compatible equipment before placing an order or requesting a quote.

→

Confirm before collection

Our team can verify the final setup and collection requirements before you travel, reducing last-minute changes and uncertainty.

→

Leave ready to tow

Receive a practical handover and clear guidance on the trailer setup, followed by ongoing support when questions arise after collection.

→

Customer Reviews

Trusted by customers who rely on their trailers.

Fifteen selected five-star customer reviews and ratings. On desktop, the carousel moves three reviews at a time so visitors can browse more feedback with fewer transitions.

Auto playing · 3 reviews per slide

“

Shawn and the team were great to deal with. This is the second trailer I’ve purchased from them. Needless to say, good quality.

Keegan Byrnes Google Review

“

Great service and availability. Shawn helped make sure we had everything we needed with the trailer. Easy to communicate with and super friendly.

PHYLLi Designs Google Review

“

Exceptionally quick service and a very well-manufactured trailer. I bought an 8×5 trailer with a ramp, high sides, spare wheel and toolbox and got good value for money.

Connect3 Pabbly Connect Google Review

“

Highly recommended to everyone. Good price with fantastic service.

Dave Lee Google Review

“

Very helpful service and awesome build quality. The trailers are heavy duty.

William Thomson Google Review

“

Great service. Will definitely be using these guys again in the future.

Alex Fuller Google Review

“

The product is great and the team are very helpful.

Kevin Fraser Google Review

“

Excellent service and great products. Highly recommended.

Rong Li Google Review

“

Thank you to the team for their excellent service.

Giorgios Siailis Google Review

“

Excellent business to deal with. Fred and Shawn were very helpful.

Corey Dennis Google Review

“

Easy to deal with.

Dean Rixon Google Review

“

Very good service. Thank you.

Geoff Nagle Google Review

“

Great service.

Brodie Anderson Google Review

★

Five-star rating shared on Google.

Luke Newcombe 5-Star Google Rating

★

Five-star rating shared on Google.

Inma Vassar 5-Star Google Rating

KKT-FT168-4500 – 16×8 Hot-Dip Galvanised Flat Top Trailer 4500kg ATM

CONFIGURE YOUR TRAILER

Choose your pickup location, accessories and registration options below.

Choose your preferred pickup location(branches):

Mesh Cage

225R15C Spare Wheel

Spare Wheel Bracket

Heavy Duty Aluminium Loading Ramps

Aluminium Loading Ramps Holder

Blue Slip

KKT-FT168-4500 - 16×8 Hot-Dip Galvanised Flat Top Trailer 4500kg ATM

Product Overview

Features & Recommended Uses

Key Features

Recommended Uses

Technical Specifications

Build, Capacity & Towing

Axle Type

Brake Type

Body Finish

Options & Included Equipment

Flat Top Trailer Design

The flat top design provides a wide and practical loading platform for compatible materials, equipment and commercial cargo.

This layout is useful for loading from the side or rear, depending on the type of cargo and loading equipment used.

Removable Side and Rear Drop-Down Gates

The removable side and rear drop-down gates provide flexible access to the trailer body.

The gates can assist with loading and unloading compatible cargo, but must be correctly refitted and secured before towing.

Checker Plate Floor

The checker plate floor provides a durable loading base for trade, construction, farm and general transport applications.

Regular cleaning and inspection are recommended, especially after carrying wet, loose or abrasive materials.

Tie-Down Rails

Tie-down rails provide practical restraint points for compatible cargo and equipment.

All restraints must be appropriately rated and suitable for the intended load.

Electric Brakes

The trailer is fitted with 12-inch electric drum brakes on all four wheels.

A compatible electric brake controller is required in the towing vehicle.

Rocker Roller Suspension

The trailer uses 60mm, 7-leaf, 7mm rocker roller suspension.

This setup is designed for heavy-duty tandem axle trailer applications.

What's Included

Warranty & Frequently Asked Questions

Confirm the right setup before you order.

Compare Similar Models

KKT-FT168-4500 - 16×8 Hot-Dip Galvanised Flat Top Trailer 4500kg ATM

KKT-FT1683500 - 16×8 Hot-Dip Galvanised Flat Top Trailer 3500kg ATM

KKT-FT1683500RP - 16×8 Hot-Dip Galvanised Flat Top Trailer 3500kg ATM with Ramps

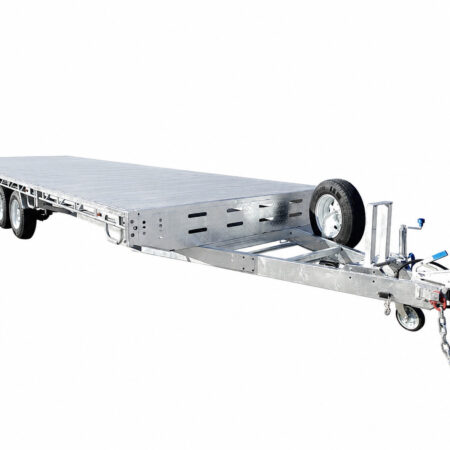

KKT-FT2084500-20×8 (6×2.4m) Tri-Axle Flat Top/ Flat Deck Trailer 4500kg ATM （Pre-Order）
