$5,599.00Original price was: $5,599.00.$4,949.00Current price is: $4,949.00.
Price shown before selected options, registration and branch transfer costs.
The KKT-BTT57200 is a galvanised dual axle boat trailer with a 2000kg ATM, 500kg tare weight and 1500kg load capacity. It is designed to suit compatible boats from 5.2m to 5.7m, or approximately 17ft to 18.7ft. It features a fully welded galvanised chassis, roller or skid system, 3500lbs manual winch, mechanical disc brakes, dual galvanised 50mm round solid axles, galvanised rims, 175R13C tyres, waterproof LED lighting and a 50mm 2000kg override coupling.
CONFIGURE YOUR TRAILER
Choose your pickup location, accessories and registration options below.
Compare the product overview, features,
specifications, construction, towing setup,
available options, warranty and common questions.
2000kgATM Rating
1500kgApprox. Payload
500kgTare Weight
5.2m–5.7m / 17ft–18.7ftTrailer Size
5 YearsStructural Warranty
Product Overview
Galvanised 5.7m dual axle boat trailer with 2000kg ATM, mechanical disc brakes, waterproof LED lighting and roller or skid system.
The KKT-BTT57200 is a galvanised dual axle boat trailer designed to suit compatible boats from 5.2m to 5.7m, or approximately 17ft to 18.7ft.
It has a 2000kg ATM, 500kg tare weight and 1500kg load capacity, with a width between guards of approximately 1895mm.
The trailer features a fully welded galvanised chassis with galvanised U-bolts, nuts and plates throughout.
The running gear includes dual galvanised 50mm round solid axles, mechanical disc brakes, galvanised rims, 13-inch wheels and 175R13C tyres.
Additional features include a roller or skid system, 3500lbs manual winch, 50mm 2000kg override coupling, 8-inch swing-up jockey wheel, UV-stabilised mudguards and custom waterproof LED lighting.
Actual carrying capacity can change when
cages, ramps, toolboxes, spare wheels or
other accessories are fitted. Always confirm
the final trailer setup and your vehicle's
towing capacity before use.
Options & Included Equipment

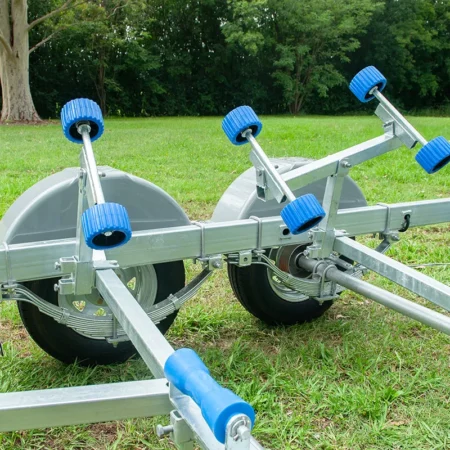

Roller or Skid System
The trailer can be configured with a roller system or skid system.
These systems assist with supporting the boat during loading, launching, retrieval and transport.
The boat must be correctly positioned and secured before towing.
Fully Welded Galvanised Chassis
The fully welded galvanised chassis provides a strong and durable base for marine trailer use.
Galvanised U-bolts, nuts and plates throughout help improve corrosion resistance.
Regular rinsing and maintenance are recommended after saltwater exposure.

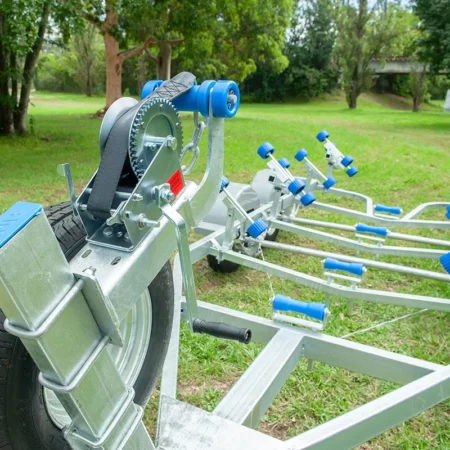

3500lbs Manual Winch
The 3500lbs manual winch assists with loading and retrieving compatible boats.
The winch strap, hook and mounting points should be checked regularly for wear or damage.
Mechanical Disc Brakes
The trailer is fitted with mechanical disc brakes.
Brakes should be inspected and maintained regularly, especially after marine or saltwater use.
Galvanised Eye-to-Slipper Springs
The trailer uses galvanised 45mm, 7-leaf, 6mm eye-to-slipper springs.
This spring setup is designed for dual axle marine trailer applications.
Waterproof LED Lighting System
The custom waterproof LED lighting system is designed for boat trailer use.
Lights and wiring should be checked before each trip.
UV-Stabilised Mudguards
Stylish grey or white UV-stabilised mudguards are included.
Colour may vary depending on selected configuration or availability.
Compatible options are shown in the product
configuration section above.
Flat, small round and large round plug compatibility
Boat, motor, fuel, marine accessories, straps, registration and items not specifically listed in the selected configuration or quotation are not included.
The trailer has a maximum 2000kg ATM.
The stated tare weight is 500kg.
The stated load capacity is 1500kg.
Final payload should be confirmed against the certified tare weight shown on the compliance plate.
Boat size, hull shape and total loaded boat weight must be suitable for the trailer.
The boat must be correctly positioned, balanced and secured before towing.
The trailer should be rinsed and maintained after saltwater use.
Brakes, bearings, lights and wiring should be checked regularly.
The towing vehicle and towbar must be rated for the trailer’s actual loaded weight.
Mudguard colour may vary depending on configuration or availability.
Images may show optional equipment or a representative configuration.
Component appearance may vary slightly between production batches.
Warranty & Frequently Asked Questions
5-Year Structural Warranty
Applies to the main structural
construction of eligible brand-new
King Kong Trailers.
1-Year Component Warranty
Selected components including leaf
springs, lights, wiring and jockey
wheels are covered for one year.
Yes. Compatible cages, canvas covers, ladder racks, toolboxes, spare wheels, ramps and other options are shown in the configuration section above. Available options vary by product.
Registration is not automatically included unless it is selected in the configuration. Registration availability, administration charges and branch-related costs depend on the selected pickup location.
Where available, you can choose the deposit option in the purchase section. The remaining balance and payment requirements will be shown or confirmed before pickup.
Choose the branch that is most convenient for you. Product pricing, stock availability, registration services and transfer charges can vary between Sydney / Penrith, Central Coast / Gosford, Newcastle, Canberra / Queanbeyan and Dubbo.
Product images and interactive 3D models are provided for reference. Final details can vary depending on stock, production updates, selected accessories and the final configuration.
Eligible brand-new King Kong trailers include a five-year structural warranty. Selected components, including leaf springs, lights, wiring and jockey wheels, are covered for one year. Terms and conditions apply.
