Compare the product overview, features,
specifications, construction, towing setup,
available options, warranty and common questions.
2000kgATM Rating
1480kgApprox. Payload
520kgTare Weight
3000mm × 1830mm × 300mm internal areaTrailer Size
5 YearsStructural Warranty
Product Overview

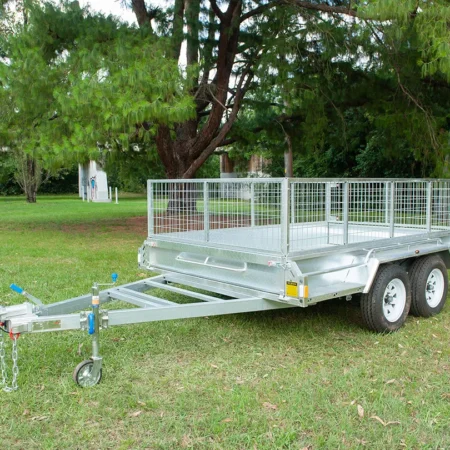

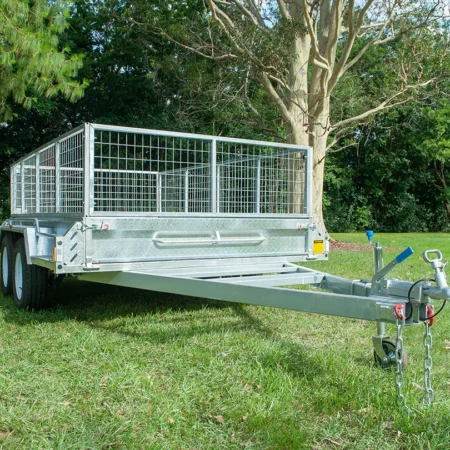

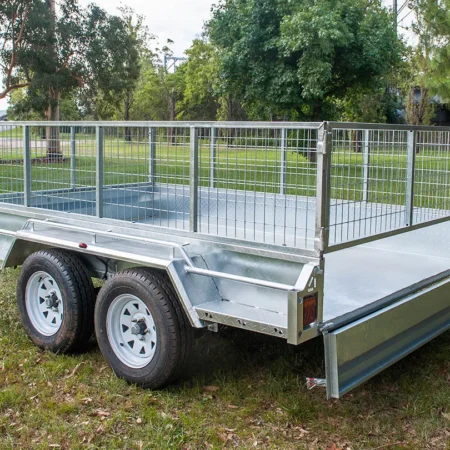

Heavy-duty 10×6 galvanised tandem axle box trailer with 2000kg ATM, reinforced checker plate floor and mechanical disc brakes.
The KKT-T1062000 is a tandem axle hot-dip galvanised box trailer with a 2000kg ATM, 520kg tare weight excluding cage and 1480kg load capacity.
Its internal loading area measures approximately 3000mm × 1830mm × 300mm, providing a practical 10×6 body size for trade, landscaping, farm, property maintenance and general transport use.
The trailer combines a fully welded hot-dip galvanised body and chassis with a checker plate floor reinforced by 50mm × 50mm SHS supports, 300mm fully welded sides, removable front and rear drop-down gates, full step-up platforms on both sides, tie-down rails all around and welded ladder rack holders.
The tandem axle running gear includes dual 50mm round solid axles, mechanical disc brakes, 60mm 6-leaf rocker roller suspension, 14-inch Sunraysia rims and 185/14 LT tyres.
Features & Recommended Uses
Key Features
2000kg ATM
520kg tare weight excluding cage
1480kg load capacity
Approximate 10×6 trailer size
Internal dimensions: 3000mm × 1830mm × 300mm
1800mm drawbar length
100mm × 50mm RHS drawbar section
Fully welded body and chassis
Hot-dip galvanised construction
Checker plate floor
50mm × 50mm SHS floor reinforcement
Left-to-right and front-to-back floor reinforcement
300mm high fully welded sides
Removable front drop-down gate
Removable rear drop-down gate
Full step-up platforms on both sides
Tie-down rails all around
Welded ladder rack holders
2 heavy-duty locking points on drawbar
Dual 50mm round solid axles
Mechanical disc brakes
60mm rocker roller suspension
6-leaf, 6mm spring setup
14-inch Sunraysia rims
185/14 LT tyres
50mm 2000kg override coupling
8-inch swing-up jockey wheel
LED tail lights
7-pin trailer plug
Compatible with flat, small round and large round connections
Recommended Uses
Trade equipment transport
Construction material transport
Landscaping work
Farm and acreage use
Property maintenance
Tool transport
Garden supply transport
Bulky cargo transport
General cargo transport
Worksite material transport
Technical Specifications
Model / SKU
KKT-T1062000
3D URL
tandem_box_trailer
Trailer Type
Tandem Axle Box Trailer
Size
10x6
ATM
ATM 2000kg
Axle Type
Tandem Axle
Brake Type
Mechanical Braked
Body Finish
Hot Dip Galvanised
Build, Capacity & Towing
2000kgATM
520kgTare
1480kgApprox. Payload
Axle Type
Tandem Axle
Brake Type
Mechanical Braked
Body Finish
Hot Dip Galvanised
Brakes
Mechanical Braked
Axle
Tandem Axle Box Trailer
Actual carrying capacity can change when
cages, ramps, toolboxes, spare wheels or
other accessories are fitted. Always confirm
the final trailer setup and your vehicle's
towing capacity before use.
Options & Included Equipment
Reinforced Checker Plate Floor
The checker plate floor is reinforced with 50mm × 50mm SHS supports running left to right and front to back.
The floor should be kept clean and inspected regularly, especially after carrying heavy, wet or abrasive loads.
300mm Fully Welded Sides
The 300mm high fully welded sides provide practical containment for tools, materials and compatible cargo.
All cargo must be properly secured before transport.

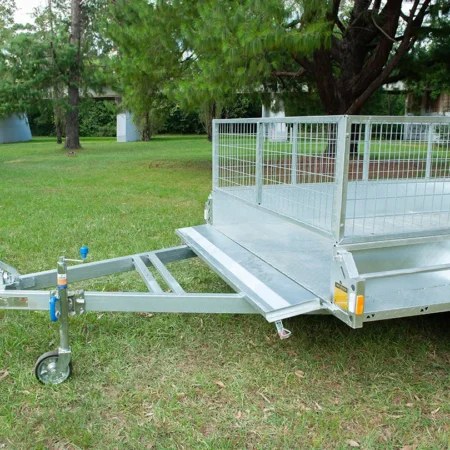

Removable Drop-Down Gates
The removable front and rear drop-down gates provide improved access to the trailer body.
All gates must be correctly closed and secured before towing.
Full Step-Up Platforms
Full step-up platforms are fitted on both sides of the trailer for practical access.
The platforms should be kept clear of loose items before transport.
Tie-Down Rails
Tie-down rails are fitted all around the trailer to provide practical restraint points.
Only appropriately rated restraint equipment should be used.
Welded Ladder Rack Holders
Welded ladder rack holders provide flexibility for compatible trade use.
Any ladder rack or long item must be correctly fitted and secured before towing.

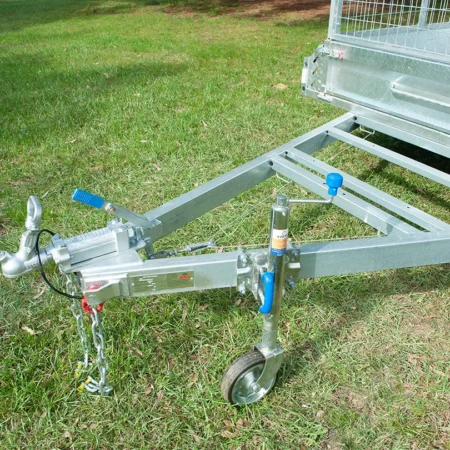

Heavy-Duty Drawbar Locking Points
The drawbar includes 2 heavy-duty locking points.
These provide additional practicality for securing compatible accessories or equipment.
Mechanical Disc Brakes
The trailer is fitted with mechanical disc brakes.
Brakes should be checked and maintained regularly for safe towing performance.
Rocker Roller Suspension
The 60mm, 6-leaf, 6mm rocker roller suspension is designed for tandem axle trailer applications.
It supports stable load handling and practical towing performance.

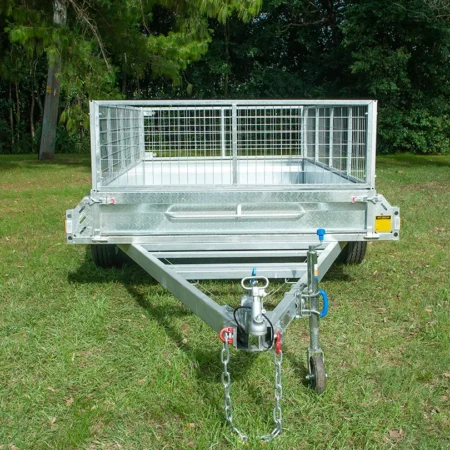

2000kg Override Coupling
The trailer includes a 50mm 2000kg override coupling.
The towing vehicle and towbar must be rated for the trailer’s actual loaded weight.
Compatible options are shown in the product
configuration section above.
What's Included
KKT-T1062000 tandem axle box trailer
2000kg ATM configuration
Fully welded hot-dip galvanised body and chassis
Checker plate floor
50mm × 50mm SHS floor reinforcement
300mm high fully welded sides
Removable front drop-down gate
Removable rear drop-down gate
Full step-up platforms on both sides
Tie-down rails all around
Welded ladder rack holders
2 heavy-duty locking points on drawbar
1800mm drawbar
100mm × 50mm RHS drawbar section
Dual 50mm round solid axles
Mechanical disc brakes
60mm, 6-leaf, 6mm rocker roller suspension
14-inch Sunraysia rims
185/14 LT tyres
50mm 2000kg override coupling
8-inch swing-up jockey wheel
LED tail lights
7-pin trailer plug
Flat, small round and large round plug compatibility
Cage, cargo, machinery, straps, registration and items not specifically listed in the selected configuration or quotation are not included.
The trailer has a maximum 2000kg ATM.
The stated tare weight is 520kg excluding cage.
The stated load capacity is 1480kg.
If a cage or additional accessories are fitted, the final tare weight may increase and available payload may decrease.
Final payload should be confirmed against the certified tare weight shown on the compliance plate.
Loads must be evenly distributed and properly secured before towing.
Cargo must be suitable for the trailer size, side height and legal loaded weight.
Front gate, rear gate and loose items must be fully secured before towing.
Brakes, bearings, tyres, gates and coupling should be checked regularly.
The towing vehicle and towbar must be rated for the trailer’s actual loaded weight.
Images may show optional equipment or a representative configuration.
Component appearance may vary slightly between production batches.
Warranty & Frequently Asked Questions
5-Year Structural Warranty
Applies to the main structural
construction of eligible brand-new
King Kong Trailers.
1-Year Component Warranty
Selected components including leaf
springs, lights, wiring and jockey
wheels are covered for one year.
Yes. Compatible cages, canvas covers, ladder racks, toolboxes, spare wheels, ramps and other options are shown in the configuration section above. Available options vary by product.
Registration is not automatically included unless it is selected in the configuration. Registration availability, administration charges and branch-related costs depend on the selected pickup location.
Where available, you can choose the deposit option in the purchase section. The remaining balance and payment requirements will be shown or confirmed before pickup.
Choose the branch that is most convenient for you. Product pricing, stock availability, registration services and transfer charges can vary between Sydney / Penrith, Central Coast / Gosford, Newcastle, Canberra / Queanbeyan and Dubbo.
Product images and interactive 3D models are provided for reference. Final details can vary depending on stock, production updates, selected accessories and the final configuration.
