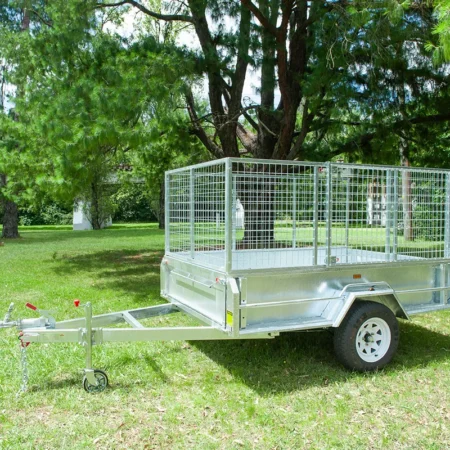

KKT-S85U - 8×5 Premium Single Axle Hot-Dip Galvanised Box Trailer 1400kg ATM

01 / 18

SKU KKT-S85UL1400 & KKT-S85UH1400 Categories Box Trailers, Single Axle Box Trailers

KKT-S85U – 8×5 Premium Single Axle Hot-Dip Galvanised Box Trailer 1400kg ATM

Original price was: $2,799.00.Current price is: $2,599.00.

Price shown before selected options, registration and branch transfer costs.

CONFIGURE YOUR TRAILER

Choose your pickup location, accessories and registration options below.

Choose your preferred pickup location(branches):

Sydney

Gosford (+$100.00)

Newcastle (+$250.00)

Queanbeyan (+$350.00)

Dubbo (+$500.00)

Mesh Cage

Trailer Body Side Wall Upgrade

Canvas Cover

Ladder Racks

Spare Wheel

Spare Wheel Bracket

Side Wall Tie Down Points

Mower Pad

Tool Box

Fold Down Ramp

On-Site Administration Fee

Blueslip or Registration

Product price:	$2,599.00
Total options:
Order total:

Pay Deposit (10%)
Pay in Full

Pay a 10% deposit per item

Request a Quote

YOUR TRAILER CONFIGURATION

Order summary

KKT-S85UL1400 & KKT-S85UH1400

TRAILER MODEL KKT-S85U - 8×5 Premium Single Axle Hot-Dip Galvanised Box Trailer 1400kg ATM

PICKUP BRANCH Select a pickup branch

Selected add-ons 0 items

OPTION SELECTION PRICE

No optional accessories selected.

Flexible finance options Buy now and choose a repayment option that suits you.

Apply with FASTR Repayments Calculator

PRODUCT INFORMATION

KKT-S85U - 8×5 Premium Single Axle Hot-Dip Galvanised Box Trailer 1400kg ATM

Compare the product overview, features, specifications, construction, towing setup, available options, warranty and common questions.

1400kg ATM Rating

1160kg Approx. Payload

240kg Tare Weight

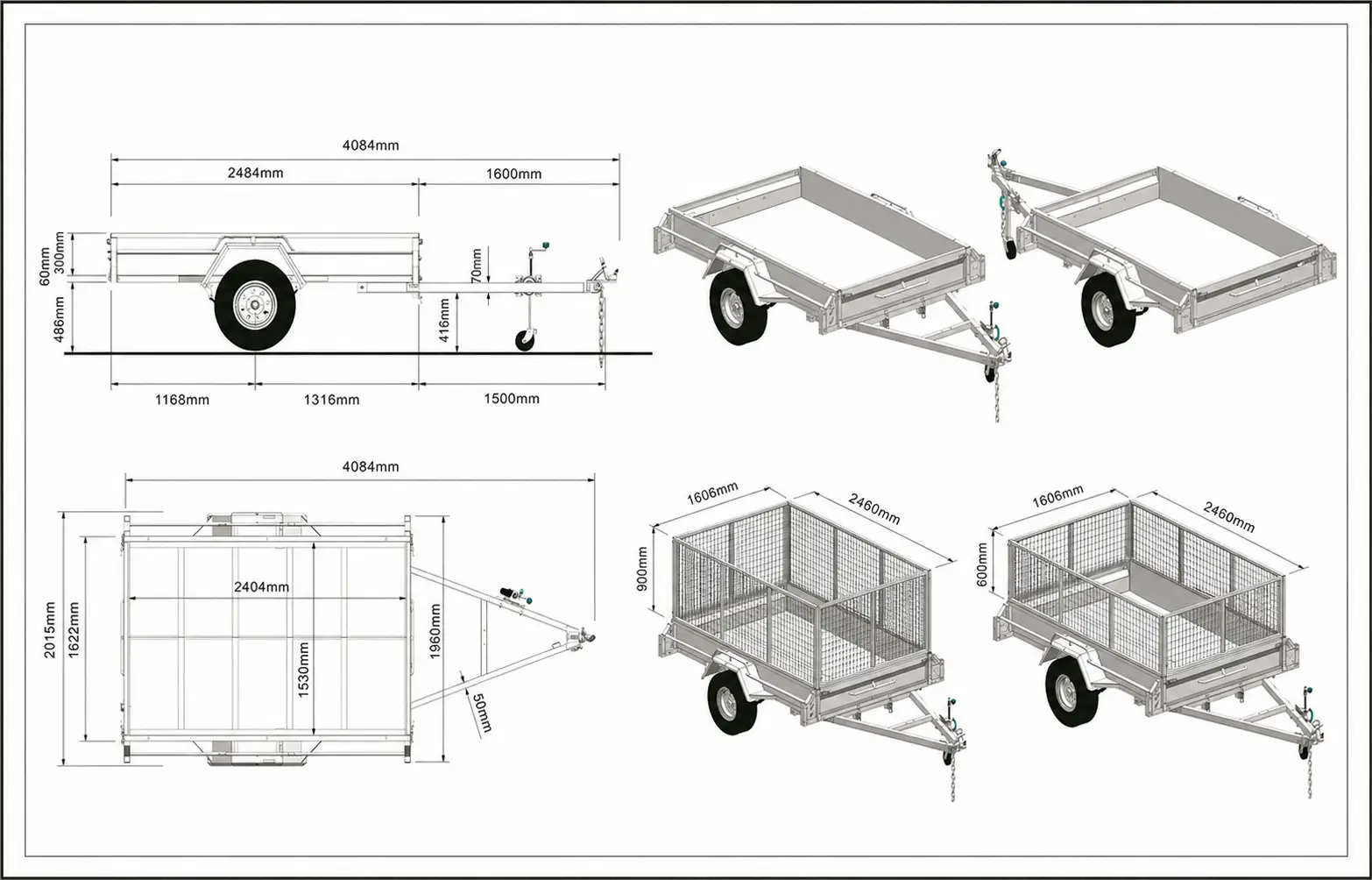

2400mm × 1530mm × 300mm internal area Trailer Size

5 Years Structural Warranty

Product Overview

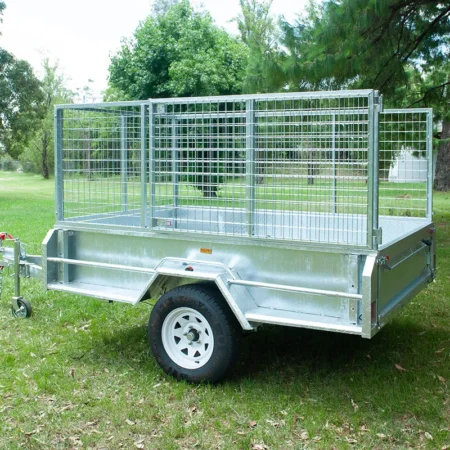

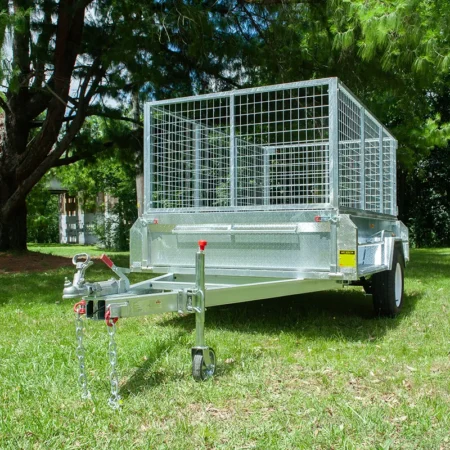

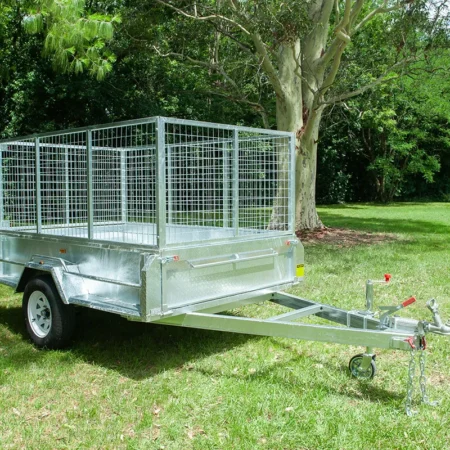

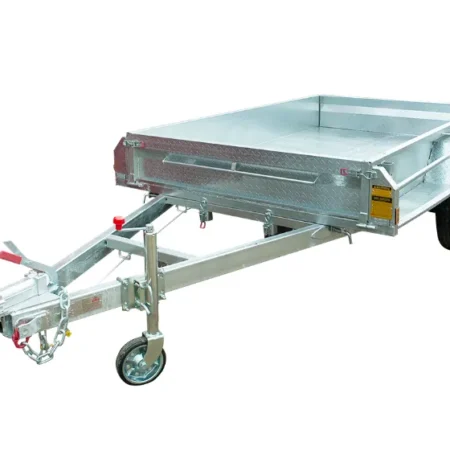

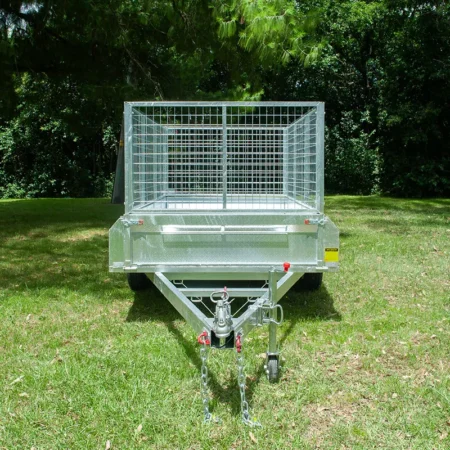

Premium 8×5 hot-dip galvanised single axle box trailer with 1400kg ATM, reinforced checker plate floor and mechanical disc brakes.

The KKT-S85U is a premium single axle hot-dip galvanised box trailer with a 1400kg ATM, 240kg tare weight excluding cage and other accessories, and 1160kg load capacity.

Its internal loading area measures approximately 2400mm × 1530mm × 300mm, providing a practical 8×5 body size for trade, landscaping, property maintenance, farm and general transport use.

The trailer combines a fully welded hot-dip galvanised body and chassis with a reinforced checker plate floor, 300mm fully welded sides, removable front and rear drop-down gates, tie-down rails all around, welded ladder rack holders and 6 locking points on the drawbar.

The running gear includes a single 50mm round solid axle, mechanical disc brakes, 45mm heavy-duty 9-leaf springs, brand new 185R14 LT tyres, a 50mm 2000kg override coupling and a 6-inch swing-up jockey wheel.

Features & Recommended Uses

Key Features

1400kg ATM
240kg tare weight excluding cage and other accessories
1160kg load capacity
Approximate 8×5 trailer size
Internal dimensions: 2400mm × 1530mm × 300mm
1600mm drawbar length
100mm × 50mm RHS drawbar section
Fully welded body and chassis
Hot-dip galvanised construction
Checker plate floor
50mm × 50mm SHS support beams left to right
40mm × 40mm SHS support beams front to back
300mm high fully welded sides
Removable front drop-down gate
Removable rear drop-down gate
Tie-down rails all around
Welded ladder rack holders
6 locking points on drawbar
Single 50mm round solid axle
Mechanical disc brakes
45mm heavy-duty springs
9-leaf spring setup
Brand new 185R14 LT tyres
50mm 2000kg override coupling
6-inch swing-up jockey wheel
LED tail lights
7-pin trailer plug
Compatible with flat, small round and large round connections

Recommended Uses

Trade equipment transport
Landscaping work
Garden supply transport
Property maintenance
Farm and acreage use
Tool transport
Light construction material transport
Household cargo transport
Camping and recreational cargo
General cargo transport

Technical Specifications

Model / SKU	KKT-S85UL1400 & KKT-S85UH1400
3D URL	tandem_box_trailer
Trailer Type	Single Axle Box Trailer
Size	8x5
ATM	ATM 1400kg
Axle Type	Single Axle
Brake Type	Mechanical Braked
Body Finish	Hot Dip Galvanised

Build, Capacity & Towing

1400kg ATM

240kg Tare

1160kg Approx. Payload

Axle Type

Single Axle

Brake Type

Mechanical Braked

Body Finish

Hot Dip Galvanised

Brakes	Mechanical Braked
Axle	Single Axle Box Trailer

Actual carrying capacity can change when cages, ramps, toolboxes, spare wheels or other accessories are fitted. Always confirm the final trailer setup and your vehicle's towing capacity before use.

Options & Included Equipment

Reinforced Checker Plate Floor

The checker plate floor is supported by 50mm × 50mm SHS beams left to right and 40mm × 40mm SHS beams front to back.

This provides a durable loading base for compatible tools, materials and general cargo.

300mm Fully Welded Sides

The 300mm high fully welded sides provide practical containment for tools, materials and compatible cargo.

All cargo must be properly secured before transport.

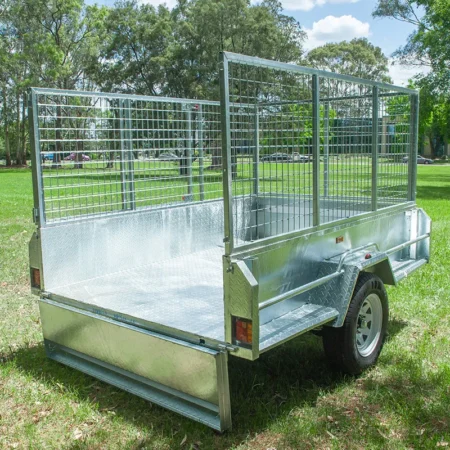

Removable Drop-Down Gates

The removable front and rear drop-down gates provide improved access to the trailer body.

All gates must be correctly closed and secured before towing.

Tie-Down Rails

Tie-down rails are fitted all around the trailer to provide practical restraint points.

Only appropriately rated restraint equipment should be used.

Welded Ladder Rack Holders

Welded ladder rack holders provide flexibility for compatible trade use.

Any ladder rack or long item must be correctly fitted and secured before towing.

Drawbar Locking Points

The drawbar includes 6 locking points for added practicality.

All accessories or secured items must be properly fitted before towing.

Mechanical Disc Brakes

The trailer is fitted with mechanical disc brakes.

Brakes should be checked and maintained regularly for safe towing performance.

Heavy-Duty 9-Leaf Springs

The trailer uses 45mm heavy-duty 9-leaf springs.

This setup supports practical single axle trailer use with compatible loads.

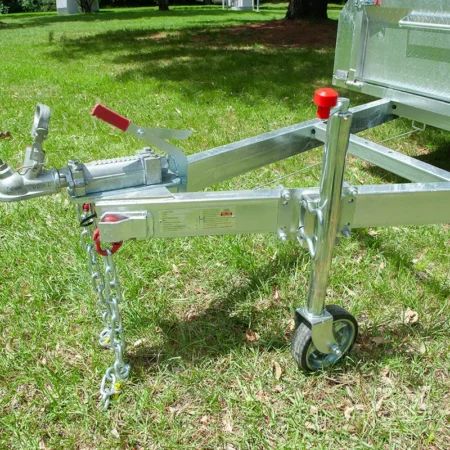

2000kg Override Coupling

The trailer includes a 50mm 2000kg override coupling.

The towing vehicle and towbar must be rated for the trailer’s actual loaded weight.

What's Included

KKT-S85U premium single axle box trailer
1400kg ATM configuration
Fully welded hot-dip galvanised body and chassis
Checker plate floor
50mm × 50mm SHS left-to-right support beams
40mm × 40mm SHS front-to-back support beams
300mm high fully welded sides
Removable front drop-down gate
Removable rear drop-down gate
Tie-down rails all around
Welded ladder rack holders
6 locking points on drawbar
1600mm drawbar
100mm × 50mm RHS drawbar section
Single 50mm round solid axle
Mechanical disc brakes
45mm heavy-duty 9-leaf springs
Brand new 185R14 LT tyres
50mm 2000kg override coupling
6-inch swing-up jockey wheel
LED tail lights
7-pin trailer plug
Flat, small round and large round plug compatibility
Cage, other accessories, cargo, machinery, straps, registration and items not specifically listed in the selected configuration or quotation are not included.

The trailer has a maximum 1400kg ATM.
The stated tare weight is 240kg excluding cage and other accessories.
The stated load capacity is 1160kg.
If a cage or additional accessories are fitted, the final tare weight may increase and available payload may decrease.
Final payload should be confirmed against the certified tare weight shown on the compliance plate.
Loads must be evenly distributed and properly secured before towing.
Cargo must be suitable for the trailer size, side height and legal loaded weight.
Front gate, rear gate and loose items must be fully secured before towing.
Brakes, bearings, tyres, gates and coupling should be checked regularly.
The towing vehicle and towbar must be rated for the trailer’s actual loaded weight.
Images may show optional equipment or a representative configuration.
Component appearance may vary slightly between production batches.

Warranty & Frequently Asked Questions

5-Year Structural Warranty Applies to the main structural construction of eligible brand-new King Kong Trailers.

1-Year Component Warranty Selected components including leaf springs, lights, wiring and jockey wheels are covered for one year.

Yes. Compatible cages, canvas covers, ladder racks, toolboxes, spare wheels, ramps and other options are shown in the configuration section above. Available options vary by product.

Registration is not automatically included unless it is selected in the configuration. Registration availability, administration charges and branch-related costs depend on the selected pickup location.

Where available, you can choose the deposit option in the purchase section. The remaining balance and payment requirements will be shown or confirmed before pickup.

Choose the branch that is most convenient for you. Product pricing, stock availability, registration services and transfer charges can vary between Sydney / Penrith, Central Coast / Gosford, Newcastle, Canberra / Queanbeyan and Dubbo.

Product images and interactive 3D models are provided for reference. Final details can vary depending on stock, production updates, selected accessories and the final configuration.

Eligible brand-new King Kong trailers include a five-year structural warranty. Selected components, including leaf springs, lights, wiring and jockey wheels, are covered for one year. Terms and conditions apply.

Need help choosing?

Confirm the right setup before you order.

Our team can help confirm the correct product, ATM rating, accessories, registration option, stock and pickup location for your requirements.

Review Configuration Call 1300 311 333

Model Comparison

Compare Similar Models

Compare key specifications across closely related models. The current product is highlighted so you can quickly review size, capacity and running-gear differences.

Swipe or scroll horizontally to compare all models.

Trailer Size

2400mm × 1530mm × 300mm internal area

7×4

ATM

1400kg

2000kg

3500kg

750kg

Payload

1160kg

1520kg

2820kg

530kg

Tare Weight

240kg

480kg

680kg

220kg

Axle

Single Axle Box Trailer

Tandem Axle Box Trailer

Single Axle Box Trailer

Brakes

Mechanical Braked

Electric Braked

Unbraked

Best For

Trade equipment transport, Landscaping work

Trade equipment transport, Construction material transport

Construction material transport, Trade equipment transport

General cargo transport, Garden supply transport
