KKT-FT127TP1-3500RP – 12×7 Hydraulic Tipper Galvanised Flat Top Trailer 3500kg ATM WITH 600mm CAGE AND LOADING RAMP
$12,500.00Original price was: $12,500.00.$12,000.00Current price is: $12,000.00.
Price shown before selected options, registration and branch transfer costs.

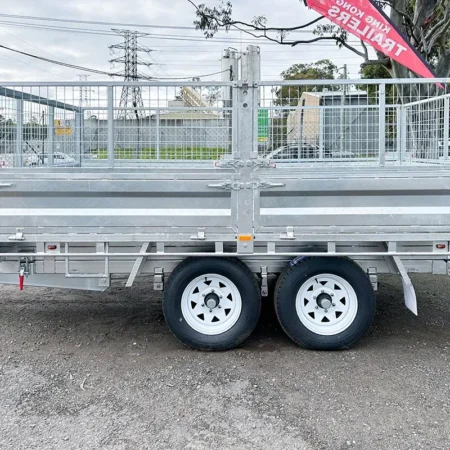

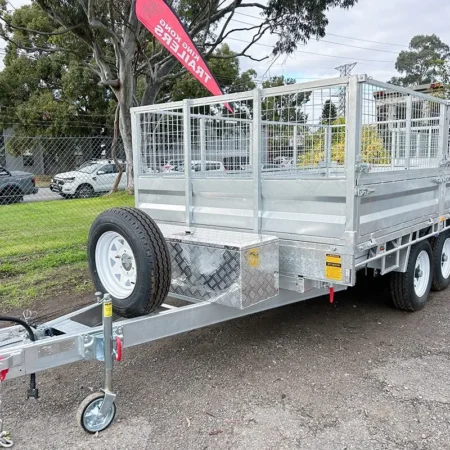

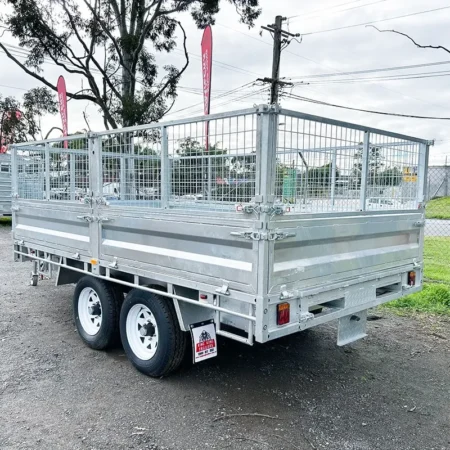

The KKT-FT127TP1-3500RP is a heavy-duty 12×7 hydraulic tipper galvanised flat top trailer with a 3500kg ATM, 600mm high cage and loading ramp. It features a fully hot-dipped galvanised finish, 425mm side wall, hydraulic pump with 4-stage cylinders, deep cycle battery system, dual 50mm solid Dexter axles, 12-inch electric brakes on all wheels, breakaway system, large toolbox, LED lighting, side marker lights and 15-inch light truck wheels.
CONFIGURE YOUR TRAILER
Choose your pickup location, accessories and registration options below.
YOUR TRAILER CONFIGURATION
Order summary
KKT-FT127TP1-3500RP
TRAILER MODEL
KKT-FT127TP1-3500RP - 12×7 Hydraulic Tipper Galvanised Flat Top Trailer 3500kg ATM WITH 600mm CAGE AND LOADING RAMP
PICKUP BRANCH
Select a pickup branch
Selected add-ons
0 items
OPTIONSELECTIONPRICE
No optional accessories selected.
Flexible finance options
Buy now and choose a repayment option that suits you.
KKT-FT127TP1-3500RP - 12×7 Hydraulic Tipper Galvanised Flat Top Trailer 3500kg ATM WITH 600mm CAGE AND LOADING RAMP
Compare the product overview, features,
specifications, construction, towing setup,
available options, warranty and common questions.
3500kgATM Rating
TBCApprox. Payload
TBCTare Weight
3515mm × 2000mm internal areaTrailer Size
5 YearsStructural Warranty
Product Overview
Heavy-duty 12×7 hydraulic tipper flat top trailer with 3500kg ATM, 600mm cage, loading ramp, Dexter axles and deep cycle battery system.
The KKT-FT127TP1-3500RP is a hydraulic tipper galvanised flat top trailer with a 3500kg ATM, 600mm high cage and loading ramp.
Its internal loading area measures approximately 3515mm × 2000mm, with a 425mm side wall and 400mm high side panel and rear door setup, making it suitable for compatible trade, landscaping, farm, construction and worksite transport tasks.
The trailer combines a fully hot-dipped galvanised finish with hydraulic pump, 4-stage hydraulic cylinders, deep cycle battery system, dual 50mm solid Dexter axles, 12-inch electric brakes on all wheels and a breakaway system.
Additional equipment includes a 1200mm × 400mm × 400mm toolbox, 8-inch jockey wheel, 15-inch light truck wheels, LED tail lights, side marker lights, 2 × 13mm safety chains and 2 × 5.3T hammer locks.
Features & Recommended Uses
Key Features
3500kg ATM
Approximate 12×7 trailer size
Internal dimensions: 3515mm × 2000mm
1800mm drawbar length
150mm × 50mm RHS drawbar section
Fully hot-dipped galvanised finish
Hydraulic tipper flat top trailer design
600mm high cage
425mm side wall
400mm high side panel and rear door
Loading ramp included
Hydraulic pump
4-stage hydraulic cylinders
Deep cycle battery system included
Dual 50mm solid Dexter axles
12-inch electric brakes on all wheels
Breakaway system
1200mm × 400mm × 400mm toolbox
8-inch jockey wheel
15-inch light truck wheels
LED tail lights
Side marker lights included
2 × 13mm safety chains
2 × 5.3T hammer locks
User manual included
Recommended Uses
Landscaping work
Construction use
Farm and acreage use
Green waste transport
Mulch and soil transport
Trade equipment transport
Property maintenance
Worksite material transport
Bulky cargo transport
Compatible general cargo
Technical Specifications
Model / SKU
KKT-FT127TP1-3500RP
3D URL
hydraulic_tipper
Trailer Type
Flat Top Trailer, Hydraulic Tipper Trailer
Size
12x7
ATM
ATM 3500kg
Axle Type
Tandem Axle
Brake Type
Electric Braked
Body Finish
Hot Dip Galvanised
Tipper Type
Hydraulic Tipper
Build, Capacity & Towing
3500kgATM
TBCTare
TBCApprox. Payload
Axle Type
Tandem Axle
Brake Type
Electric Braked
Body Finish
Hot Dip Galvanised
Brakes
Electric Braked
Axle
Tandem Axle
Actual carrying capacity can change when
cages, ramps, toolboxes, spare wheels or
other accessories are fitted. Always confirm
the final trailer setup and your vehicle's
towing capacity before use.
Options & Included Equipment
600mm High Cage
The 600mm high cage provides additional load containment for bulky or loose cargo.
It is suitable for compatible green waste, landscaping materials, tools and worksite loads.
The cage must be fully secured before towing.
Loading Ramp
The loading ramp provides practical loading access for compatible equipment and cargo.
The ramp must be correctly positioned on firm, stable ground before use.
The loaded equipment must remain within the trailer’s rated capacity and be suitable for the ramp setup.

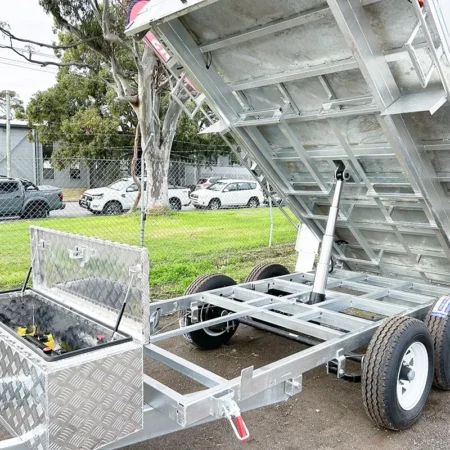

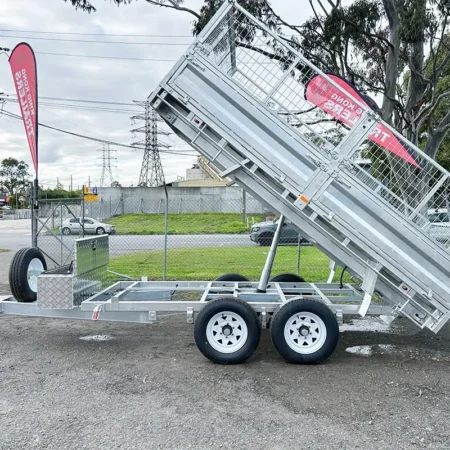

Hydraulic Tipping System
The hydraulic tipping system includes a hydraulic pump and 4-stage cylinders.
It is designed to assist with unloading suitable materials such as green waste, mulch, soil and other compatible loose loads.
The trailer must be positioned on firm, stable and level ground before tipping.
Deep Cycle Battery System
The deep cycle battery system supports the hydraulic tipping function.
It should be charged, maintained and inspected according to the supplied user manual.
Side Panels and Rear Door
The trailer includes a 425mm side wall and 400mm high side panel and rear door setup.
This provides a practical enclosed lower body section for general cargo and loose materials.
All side panels and rear doors must be secured before towing.
Dexter Axles
Dual 50mm solid Dexter axles are fitted for heavy-duty tandem axle trailer operation.
Regular inspection and servicing should be carried out according to trailer maintenance requirements.
Electric Brakes and Breakaway System
The trailer is fitted with 12-inch electric brakes on all wheels and a breakaway system.
A compatible electric brake controller is required in the towing vehicle.
Toolbox
The included toolbox measures approximately 1200mm × 400mm × 400mm.
It provides practical storage for trailer accessories, tools and small equipment.
The toolbox must be closed and secured before towing.
Safety Chains and Hammer Locks
The trailer includes 2 × 13mm safety chains with 2 × 5.3T hammer locks.
All towing and safety components must be correctly connected before transport.
Compatible options are shown in the product
configuration section above.
What's Included
KKT-FT127TP1-3500RP hydraulic tipper flat top trailer
3500kg ATM configuration
Fully hot-dipped galvanised finish
600mm high cage
425mm side wall
400mm high side panel and rear door
Loading ramp
1800mm drawbar
150mm × 50mm RHS drawbar section
Hydraulic pump
4-stage hydraulic cylinders
Deep cycle battery system
Dual 50mm solid Dexter axles
12-inch electric brakes on all wheels
Breakaway system
1200mm × 400mm × 400mm toolbox
8-inch jockey wheel
15-inch light truck wheels
LED tail lights
Side marker lights
2 × 13mm safety chains
2 × 5.3T hammer locks
User manual
Cargo, machinery, straps, registration and items not specifically listed in the selected configuration or quotation are not included.
The trailer has a maximum 3500kg ATM.
The tare weight for this model has not been provided.
Final payload should be confirmed against the certified tare weight shown on the compliance plate.
Loads must be evenly distributed and properly secured before towing.
The hydraulic tipping system must only be operated on firm, stable and level ground.
Do not tip the trailer with an uneven, unsecured or overloaded load.
The loading ramp must be correctly positioned and secured before loading or unloading.
Cage panels, side panels, rear door, toolbox, ramp and loose items must be fully secured before towing.
A compatible electric brake controller is required in the towing vehicle.
The breakaway system must be correctly maintained and functional before towing.
The towing vehicle and towbar must be rated for the trailer’s actual loaded weight.
Images may show optional equipment or a representative configuration.
Component appearance may vary slightly between production batches.
Warranty & Frequently Asked Questions
5-Year Structural Warranty
Applies to the main structural
construction of eligible brand-new
King Kong Trailers.
1-Year Component Warranty
Selected components including leaf
springs, lights, wiring and jockey
wheels are covered for one year.
Yes. Compatible cages, canvas covers, ladder racks, toolboxes, spare wheels, ramps and other options are shown in the configuration section above. Available options vary by product.
Registration is not automatically included unless it is selected in the configuration. Registration availability, administration charges and branch-related costs depend on the selected pickup location.
Where available, you can choose the deposit option in the purchase section. The remaining balance and payment requirements will be shown or confirmed before pickup.
Choose the branch that is most convenient for you. Product pricing, stock availability, registration services and transfer charges can vary between Sydney / Penrith, Central Coast / Gosford, Newcastle, Canberra / Queanbeyan and Dubbo.
Product images and interactive 3D models are provided for reference. Final details can vary depending on stock, production updates, selected accessories and the final configuration.
Eligible brand-new King Kong trailers include a five-year structural warranty. Selected components, including leaf springs, lights, wiring and jockey wheels, are covered for one year. Terms and conditions apply.
