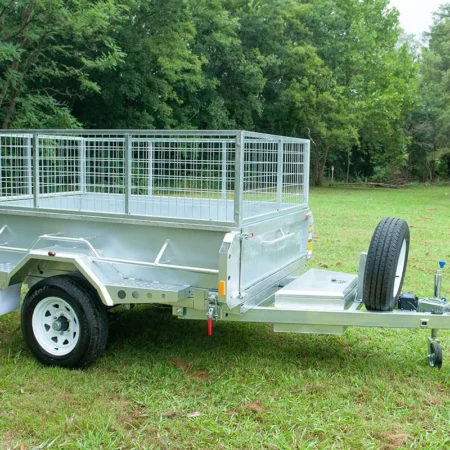

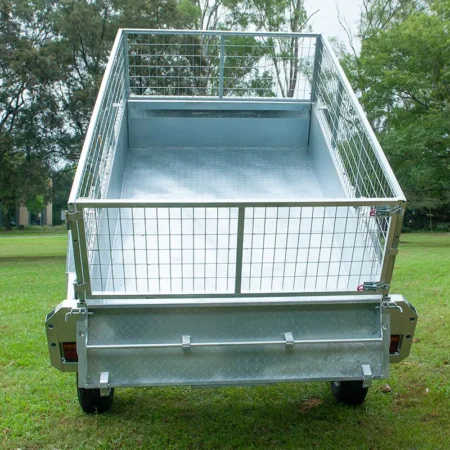

KKT-SP85H1800 - 8×5 Hydraulic Tipper Galvanised Box Trailer 1800kg ATM with Electric Brake

01 / 16

SKU SP85H1800 Category Hydraulic Tipper Trailers

KKT-SP85H1800 – 8×5 Hydraulic Tipper Galvanised Box Trailer 1800kg ATM with Electric Brake

Original price was: $6,730.00.Current price is: $6,199.00.

Price shown before selected options, registration and branch transfer costs.

CONFIGURE YOUR TRAILER

Choose your pickup location, accessories and registration options below.

Choose your preferred pickup location(branches):

Sydney

Gosford (+$100.00)

Newcastle (+$250.00)

Queanbeyan (+$350.00)

Dubbo (+$1,100.00)

Mesh Cage

Canvas Cover

Ladder Racks

195R15 Spare Wheel

Spare Wheel Bracket

Side Wall Tie Down Points

Trapezoid Tool Box

Heavy Duty Aluminium Loading Ramps

Aluminium Loading Ramps Holder

Solar Panel

On-Site Administration Fee

Blueslip or Registration

Product price:	$6,199.00
Total options:
Order total:

Choose your payment option

Pay Deposit
Pay in Full

Pay a 10% deposit per item

Request a Quote

YOUR TRAILER CONFIGURATION

Order summary

SP85H1800

TRAILER MODEL KKT-SP85H1800 - 8×5 Hydraulic Tipper Galvanised Box Trailer 1800kg ATM with Electric Brake

PICKUP BRANCH Select a pickup branch

Selected add-ons 0 items

OPTION SELECTION PRICE

No optional accessories selected.

Flexible finance options Buy now and choose a repayment option that suits you.

Apply with FASTR Repayments Calculator

PRODUCT INFORMATION

KKT-SP85H1800 - 8×5 Hydraulic Tipper Galvanised Box Trailer 1800kg ATM with Electric Brake

Compare the product overview, features, specifications, construction, towing setup, available options, warranty and common questions.

1800kg ATM Rating

1100kg Approx. Payload

700kg Tare Weight

2440mm × 1530mm × 425mm internal area Trailer Size

5 Years Structural Warranty

Product Overview

Compact 8×5 hydraulic tipper trailer with 1800kg ATM, electric brake, deep cycle battery system and hot-dip galvanised construction.

The KKT-SP851800 is a single axle hydraulic tipper galvanised box trailer with a 1800kg ATM, 700kg tare weight and 1100kg load capacity.

Its internal loading area measures approximately 2440mm × 1530mm × 425mm, providing a practical 8×5 body size with added side height for landscaping, property maintenance, farm and general transport applications.

The trailer combines a fully welded hot-dip galvanised body and chassis with checker plate flooring, removable front and rear drop-down gates, tie-down rails and a steel toolbox.

A 2.0T, 3-stage hydraulic cylinder with hydraulic power pack supports tipping operation, while the deep cycle battery system supports practical hydraulic use.

The running gear includes a single 50mm round solid axle, 12-inch electric drum brakes on two wheels, heavy-duty 60mm wide 8-leaf offroad springs, 15-inch wheels and 195R15C tyres.

Features & Recommended Uses

Key Features

1800kg ATM
700kg tare weight
1100kg load capacity
Approximate 8×5 trailer size
Internal dimensions: 2440mm × 1530mm × 425mm
1500mm drawbar length
120mm × 50mm drawbar section
Fully welded body and chassis
Hot-dip galvanised construction
Checker plate floor
Hydraulic tipping system
2.0T, 3-stage hydraulic cylinder
Hydraulic power pack
Deep cycle battery system included
Removable front drop-down gate
Removable rear drop-down gate
Tie-down rails
Steel toolbox included
User manual included
Single 50mm round solid axle
12-inch electric drum brakes
Electric brakes on two wheels
Heavy-duty 60mm wide offroad springs
8-leaf, 8mm eye-to-eye spring setup
15-inch wheels
195R15C tyres
50mm coupling rated to 3500kg
8-inch swing-up jockey wheel
12V–24V LED tail lights
7-pin trailer plug
Compatible with flat, small round and large round connections

Recommended Uses

Landscaping work
Property maintenance
Farm and acreage use
Green waste transport
Soil and mulch transport
Light construction use
Trade equipment transport
Garden supply transport
General cargo transport
Small worksite transport

Technical Specifications

Model / SKU	SP85H1800
3D URL	hydraulic_tipper
Trailer Type	Hydraulic Tipper Trailer
Size	8x5
ATM	ATM 1800kg
Axle Type	Single Axle
Brake Type	Electric Braked
Body Finish	Hot Dip Galvanised
Tipper Type	Hydraulic Tipper

Build, Capacity & Towing

1800kg ATM

700kg Tare

1100kg Approx. Payload

Axle Type

Single Axle

Brake Type

Electric Braked

Body Finish

Hot Dip Galvanised

Brakes	Electric Braked
Axle	Single Axle

Actual carrying capacity can change when cages, ramps, toolboxes, spare wheels or other accessories are fitted. Always confirm the final trailer setup and your vehicle's towing capacity before use.

Options & Included Equipment

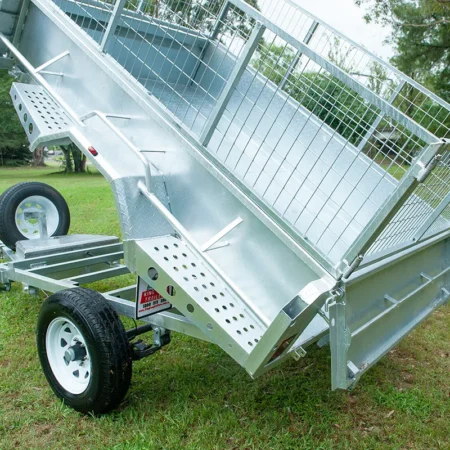

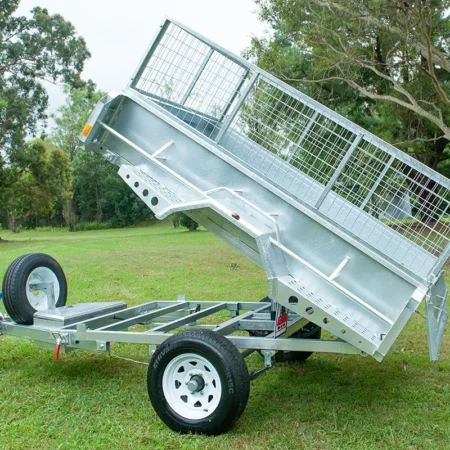

Hydraulic Tipping System

The hydraulic tipping system includes a 2.0T, 3-stage hydraulic cylinder and hydraulic power pack.

It is designed to assist with unloading suitable materials such as soil, mulch, green waste and compatible loose loads.

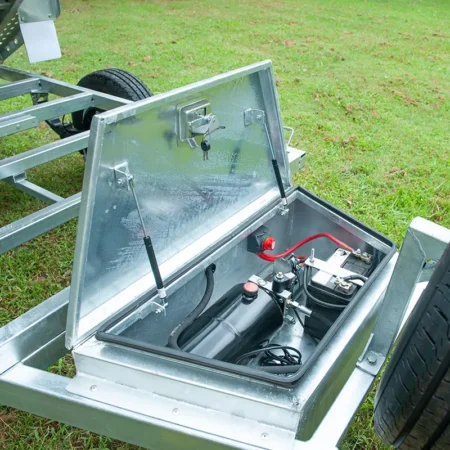

Deep Cycle Battery System

The deep cycle battery system supports the hydraulic tipping function.

It should be charged, maintained and inspected according to the supplied user manual.

425mm High Body

The 425mm high body provides added containment for loose materials and general cargo.

All cargo must be properly secured before transport.

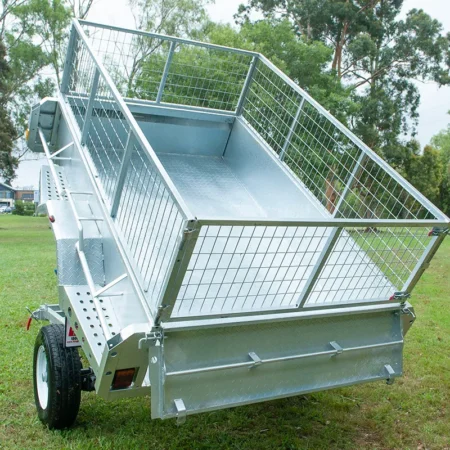

Removable Drop-Down Gates

The removable front and rear drop-down gates provide improved access to the trailer body.

All gates must be correctly closed and secured before towing.

Checker Plate Floor

The checker plate floor provides a durable loading base for materials, equipment and general cargo.

The floor should be kept clean and inspected regularly, especially after carrying soil, gravel, green waste or wet materials.

Tie-Down Rails

Tie-down rails provide practical restraint points for compatible cargo and equipment.

Only appropriately rated restraint equipment should be used.

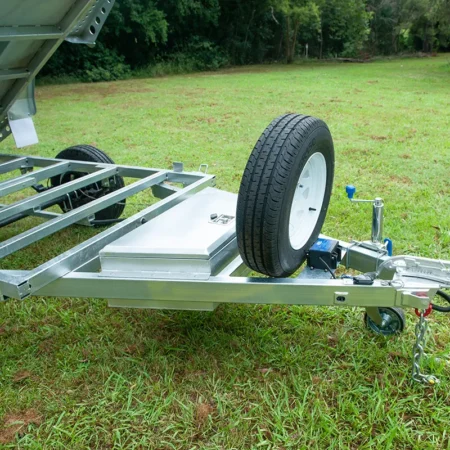

Steel Toolbox

The steel toolbox provides practical storage for small tools, straps and trailer accessories.

The toolbox must be closed and secured before towing.

Electric Brakes

The trailer is fitted with 12-inch electric drum brakes on two wheels.

A compatible electric brake controller is required in the towing vehicle.

Heavy-Duty Offroad Springs

The trailer uses heavy-duty 60mm wide, 8-leaf, 8mm eye-to-eye offroad springs.

This setup supports practical single axle trailer use across suitable worksite and property conditions.

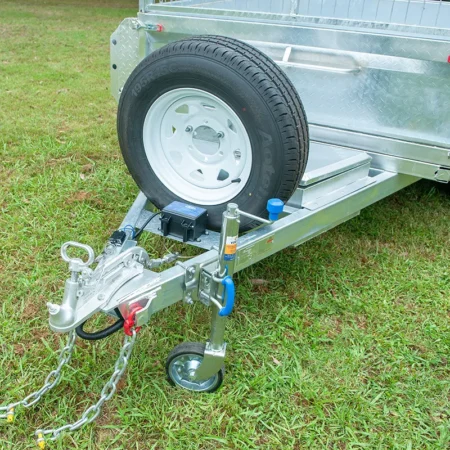

3500kg Coupling

The trailer includes a 50mm coupling rated to 3500kg.

The towing vehicle and towbar must be rated for the trailer’s actual loaded weight.

What's Included

KKT-SP851800 hydraulic tipper trailer
1800kg ATM configuration
Fully welded hot-dip galvanised body and chassis
Checker plate floor
425mm high body
Removable front drop-down gate
Removable rear drop-down gate
Tie-down rails
2.0T, 3-stage hydraulic cylinder
Hydraulic power pack
Deep cycle battery system
Steel toolbox
User manual
Single 50mm round solid axle
12-inch electric drum brakes on two wheels
Heavy-duty 60mm wide offroad springs
8-leaf, 8mm eye-to-eye spring setup
15-inch wheels
195R15C tyres
50mm coupling rated to 3500kg
8-inch swing-up jockey wheel
12V–24V LED lighting system
7-pin trailer plug
Flat, small round and large round plug compatibility
Cage, cargo, machinery, straps, registration and items not specifically listed in the selected configuration or quotation are not included.

The trailer has a maximum 1800kg ATM.
The stated tare weight is 700kg.
The stated load capacity is 1100kg.
Final payload should be confirmed against the certified tare weight shown on the compliance plate.
Loads must be evenly distributed and properly secured before towing.
The hydraulic tipping system must only be operated on firm, stable and level ground.
Do not tip the trailer with an uneven, unsecured or overloaded load.
Front gate, rear gate, toolbox and loose items must be fully secured before towing.
A compatible electric brake controller is required in the towing vehicle.
The towing vehicle and towbar must be rated for the trailer’s actual loaded weight.
Lights, brakes, bearings, tyres and hydraulic components should be checked regularly.
Images may show optional equipment or a representative configuration.
Component appearance may vary slightly between production batches.

Warranty & Frequently Asked Questions

5-Year Structural Warranty Applies to the main structural construction of eligible brand-new King Kong Trailers.

1-Year Component Warranty Selected components including leaf springs, lights, wiring and jockey wheels are covered for one year.

Yes. Compatible cages, canvas covers, ladder racks, toolboxes, spare wheels, ramps and other options are shown in the configuration section above. Available options vary by product.

Registration is not automatically included unless it is selected in the configuration. Registration availability, administration charges and branch-related costs depend on the selected pickup location.

Where available, you can choose the deposit option in the purchase section. The remaining balance and payment requirements will be shown or confirmed before pickup.

Choose the branch that is most convenient for you. Product pricing, stock availability, registration services and transfer charges can vary between Sydney / Penrith, Central Coast / Gosford, Newcastle, Canberra / Queanbeyan and Dubbo.

Product images and interactive 3D models are provided for reference. Final details can vary depending on stock, production updates, selected accessories and the final configuration.

Eligible brand-new King Kong trailers include a five-year structural warranty. Selected components, including leaf springs, lights, wiring and jockey wheels, are covered for one year. Terms and conditions apply.
