KKT-FT127TP3-3500 - 12×7 Hydraulic 3-Way Tipper Galvanised Flat Top Trailer 3500kg ATM WITH 900mm CAGE

01 / 11

SKU KKT-FT127TP3-3500 Categories Flat Top Trailers, Hydraulic Tipper Trailers

KKT-FT127TP3-3500 – 12×7 Hydraulic 3-Way Tipper Galvanised Flat Top Trailer 3500kg ATM WITH 900mm CAGE

Original price was: $13,500.00.Current price is: $13,000.00.

Price shown before selected options, registration and branch transfer costs.

CONFIGURE YOUR TRAILER

Choose your pickup location, accessories and registration options below.

Choose your preferred pickup location(branches):

Sydney

Gosford (+$150.00)

Newcastle (+$350.00)

Queanbeyan (+$350.00)

Dubbo (+$1,400.00)

Ladder Racks

195R15 Spare Wheel

Spare Wheel Bracket

Rectangle Shape Tool Box

Heavy Duty Aluminium Loading Ramps

Aluminium Loading Ramps Holder

Solar Panel

On-Site Administration Fee

Blueslip or Registration

Product price:	$13,000.00
Total options:
Order total:

Pay Deposit (10%)
Pay in Full

Pay a 10% deposit per item

Request a Quote

YOUR TRAILER CONFIGURATION

Order summary

KKT-FT127TP3-3500

TRAILER MODEL KKT-FT127TP3-3500 - 12×7 Hydraulic 3-Way Tipper Galvanised Flat Top Trailer 3500kg ATM WITH 900mm CAGE

PICKUP BRANCH Select a pickup branch

Selected add-ons 0 items

OPTION SELECTION PRICE

No optional accessories selected.

Flexible finance options Buy now and choose a repayment option that suits you.

Apply with FASTR Repayments Calculator

PRODUCT INFORMATION

KKT-FT127TP3-3500 - 12×7 Hydraulic 3-Way Tipper Galvanised Flat Top Trailer 3500kg ATM WITH 900mm CAGE

Compare the product overview, features, specifications, construction, towing setup, available options, warranty and common questions.

3500kg ATM Rating

1800kg Approx. Payload

1700kg Tare Weight

12ft × 7ft flat top trailer Trailer Size

5 Years Structural Warranty

Product Overview

Heavy-duty 12×7 galvanised 3-way hydraulic tipper trailer with 3500kg ATM, 900mm cage and Dexter tandem axles.

The KKT-FT127TP3-3500 is a hydraulic 3-way tipper galvanised flat top trailer with a 3500kg ATM, 1700kg tare weight and 1800kg load capacity.

The 12ft × 7ft flat top trailer body provides a practical loading area for trade, landscaping, farm, construction and worksite transport tasks.

The trailer combines a hot-dip galvanised fully welded steel chassis with a heavy-duty checker plate floor, 900mm cage, galvanised mudguards and a 3-way hydraulic tipping system capable of tipping left, right or rear.

The hydraulic system uses a 4-stage hydraulic cylinder with 5T capacity, while the running gear includes Dexter tandem axles, 12-inch electric brakes and 15-inch wheels.

Technical Specifications

Model / SKU	KKT-FT127TP3-3500
3D URL	hydraulic_tipper
Trailer Type	Flat Top Trailer, Hydraulic Tipper Trailer
Size	12x7
ATM	ATM 3500kg
Brake Type	Electric Braked
Body Finish	Hot Dip Galvanised
Tipper Type	3-Way Hydraulic Tipper

Build, Capacity & Towing

3500kg ATM

1700kg Tare

1800kg Approx. Payload

Brake Type

Electric Braked

Body Finish

Hot Dip Galvanised

Brakes	Electric Braked

Actual carrying capacity can change when cages, ramps, toolboxes, spare wheels or other accessories are fitted. Always confirm the final trailer setup and your vehicle's towing capacity before use.

Options & Included Equipment

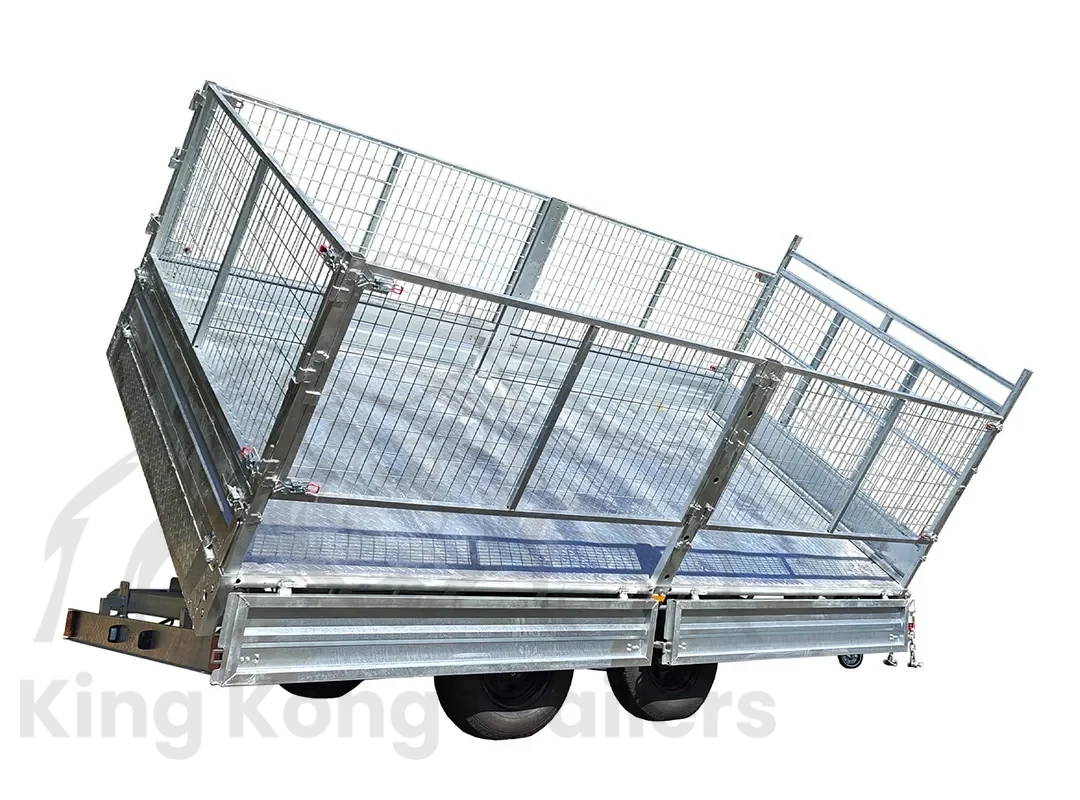

3-Way Hydraulic Tipping System

The 3-way hydraulic tipping system allows unloading to the left, right or rear.

This is useful when site access is limited or when materials need to be unloaded in a specific direction.

The trailer must only be tipped on firm, stable and level ground.

4-Stage Hydraulic Cylinder

The hydraulic system uses a 4-stage cylinder with 5T capacity.

This supports the 3-way tipping operation and should be inspected and maintained according to the supplied user manual.

900mm Cage

The 900mm cage provides additional containment for bulky or loose cargo.

It is suitable for compatible green waste, landscaping materials, tools and worksite loads.

The cage must be fully secured before towing.

Heavy-Duty Checker Plate Floor

The heavy-duty checker plate floor provides a strong loading base for materials, equipment and general cargo.

Regular cleaning and inspection are recommended, especially after carrying wet, loose or abrasive loads.

Dexter Tandem Axles

Dexter tandem axles are fitted for heavy-duty trailer operation.

Regular servicing and inspection should be carried out according to trailer maintenance requirements.

Electric Brakes

The trailer is fitted with 12-inch electric brakes.

A compatible electric brake controller is required in the towing vehicle.

Lightweight Aluminium Loading Ramps

Lightweight aluminium loading ramps are available as an optional feature.

Ramp suitability must be confirmed based on the equipment weight, loading angle and intended use.

Ladder Racks

Ladder racks are available as an optional feature.

They provide additional carrying flexibility for compatible long items such as ladders, pipes and trade materials.

Hammerlock Safety Chain Setup

The safety chain is hammerlock-connected for a strong and secure towing setup.

All safety chains must be correctly connected before towing.

What's Included

KKT-FT127TP3-3500 hydraulic 3-way tipper flat top trailer
3500kg ATM configuration
900mm cage
Hot-dip galvanised fully welded steel chassis
Heavy-duty checker plate floor
3-way hydraulic tipping system
4-stage 5T hydraulic cylinder
Galvanised mudguards
Dexter tandem axles
12-inch electric brakes
15-inch wheels
Swing-up jockey wheel
Hammerlock-connected safety chain setup
Lightweight aluminium loading ramps, ladder racks, cargo, machinery, straps, registration and items not specifically listed in the selected configuration or quotation are not included unless selected.

The trailer has a maximum 3500kg ATM.
The stated tare weight is 1700kg.
The stated load capacity is 1800kg.
Final payload should be confirmed against the certified tare weight shown on the compliance plate.
Loads must be evenly distributed and properly secured before towing.
The 3-way hydraulic tipping system must only be operated on firm, stable and level ground.
Do not tip the trailer with an uneven, unsecured or overloaded load.
Cage panels, gates, hydraulic components and loose items must be fully secured before towing.
A compatible electric brake controller is required in the towing vehicle.
The towing vehicle and towbar must be rated for the trailer’s actual loaded weight.
Optional loading ramps must be suitable for the weight and type of equipment being loaded.
Images may show optional equipment or a representative configuration.
Component appearance may vary slightly between production batches.

Warranty & Frequently Asked Questions

5-Year Structural Warranty Applies to the main structural construction of eligible brand-new King Kong Trailers.

1-Year Component Warranty Selected components including leaf springs, lights, wiring and jockey wheels are covered for one year.

Yes. Compatible cages, canvas covers, ladder racks, toolboxes, spare wheels, ramps and other options are shown in the configuration section above. Available options vary by product.

Registration is not automatically included unless it is selected in the configuration. Registration availability, administration charges and branch-related costs depend on the selected pickup location.

Where available, you can choose the deposit option in the purchase section. The remaining balance and payment requirements will be shown or confirmed before pickup.

Choose the branch that is most convenient for you. Product pricing, stock availability, registration services and transfer charges can vary between Sydney / Penrith, Central Coast / Gosford, Newcastle, Canberra / Queanbeyan and Dubbo.

Product images and interactive 3D models are provided for reference. Final details can vary depending on stock, production updates, selected accessories and the final configuration.

Eligible brand-new King Kong trailers include a five-year structural warranty. Selected components, including leaf springs, lights, wiring and jockey wheels, are covered for one year. Terms and conditions apply.

Need help choosing?

Confirm the right setup before you order.

Our team can help confirm the correct product, ATM rating, accessories, registration option, stock and pickup location for your requirements.

Review Configuration Call 1300 311 333

Model Comparison

Compare Similar Models

Compare key specifications across closely related models. The current product is highlighted so you can quickly review size, capacity and running-gear differences.

Swipe or scroll horizontally to compare all models.

Similar Model

KKT-FT127TP1-3500RP - 12×7 Hydraulic Tipper Galvanised Flat Top Trailer 3500kg ATM WITH 600mm CAGE AND LOADING RAMP

SKU: KKT-FT127TP1-3500RP

View This Model

Similar Model

KKT-FT127TP3-3500RP - 12×7 Hydraulic 3-Way Tipper Galvanised Flat Top Trailer 3500kg ATM WITH 600mm CAGE AND LOADING RAMPS

SKU: KKT-FT127TP3-3500RP

View This Model

Trailer Size

12ft × 7ft flat top trailer

3515mm × 2000mm internal area

3530mm × 2030mm × 300mm internal area

ATM

3500kg

Payload

1800kg

1960kg

1800kg

Tare Weight

1700kg

1540kg

1700kg

Axle

—

Tandem Axle

Brakes

Electric Braked

Tipping System

hydraulic_tipper

Best For

Landscaping work, Construction use

Construction material transport, Landscaping supply transport

Landscaping work, Construction use
