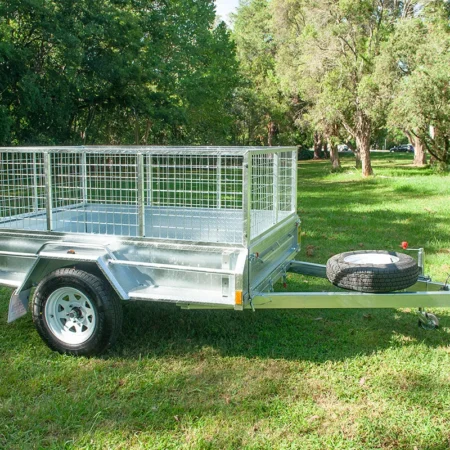

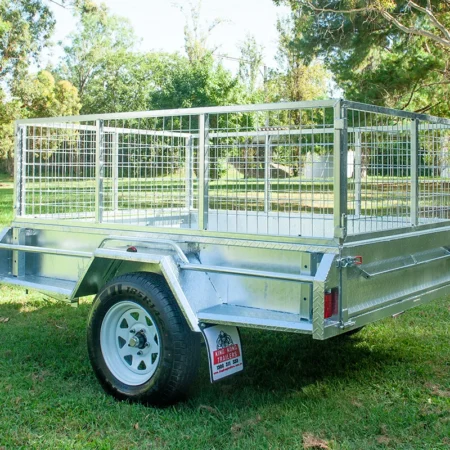

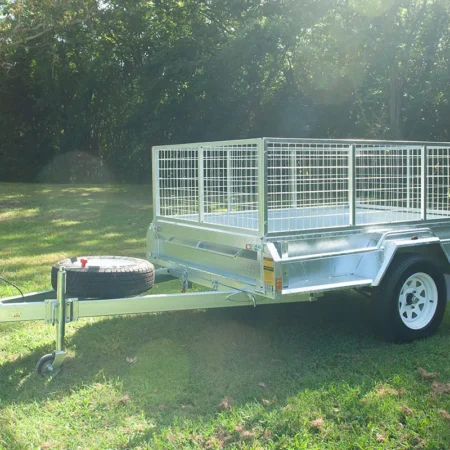

KKT-S75750 - 7×5 Premium Single Axle Hot-Dip Galvanised Tilting Box Trailer 750kg ATM

01 / 15

SKU KKT-S75750 Categories Box Trailers, Single Axle Box Trailers

KKT-S75750 – 7×5 Premium Single Axle Hot-Dip Galvanised Tilting Box Trailer 750kg ATM

Original price was: $2,099.00.Current price is: $1,849.00.

Price shown before selected options, registration and branch transfer costs.

The KKT-S75750 is a premium 7×5 single axle hot-dip galvanised tilting box trailer with a 750kg ATM, 220kg tare weight excluding cage and 530kg load capacity. It features a fully welded hot-dip galvanised body and chassis, 2.5mm fully welded checker plate floor, one-piece folded checker plate side and floor design, tilting function with 4 locking points on the drawbar, removable front and rear drop-down gate, 32mm tie rail bar, ladder rack holders, 40mm round solid axle, 7-leaf springs, Sunraysia rims and ADR standard quick release coupling.

CONFIGURE YOUR TRAILER

Choose your pickup location, accessories and registration options below.

Choose your preferred pickup location(branches):

Sydney

Gosford (+$100.00)

Newcastle (+$250.00)

Queanbeyan (+$350.00)

Dubbo (+$500.00)

Mesh Cage

Canvas Cover

Ladder Racks

Spare Wheel

Spare Wheel Bracket

Side Wall Tie Down Points

Mower Pad

Tool Box

Fold Down Ramp

On-Site Administration Fee

Blueslip or Registration

Product price:	$1,849.00
Total options:
Order total:

Request a Quote

Pay Deposit (10%)
Pay in Full

Pay a 10% deposit per item

Request a Quote

Please note: If you need your order processed within 24 hours, please call our sale team to place your order directly. Online orders typically take up to 5 days to process due to payment system delays.

YOUR TRAILER CONFIGURATION

Order summary

KKT-S75750

TRAILER MODEL KKT-S75750 - 7×5 Premium Single Axle Hot-Dip Galvanised Tilting Box Trailer 750kg ATM

PICKUP BRANCH Select a pickup branch

Selected add-ons 0 items

OPTION SELECTION PRICE

No optional accessories selected.

Flexible finance options Buy now and choose a repayment option that suits you.

Apply with FASTR Repayments Calculator

PRODUCT INFORMATION

KKT-S75750 - 7×5 Premium Single Axle Hot-Dip Galvanised Tilting Box Trailer 750kg ATM

Compare the product overview, features, specifications, construction, towing setup, available options, warranty and common questions.

750kg ATM Rating

530kg Approx. Payload

220kg Tare Weight

7×5 Trailer Size

5 Years Structural Warranty

Product Overview

Premium 7×5 hot-dip galvanised tilting box trailer with 750kg ATM, checker plate body and practical tilt loading function.

The KKT-S75750 is a premium single axle hot-dip galvanised tilting box trailer with a 750kg ATM, 220kg tare weight excluding cage and 530kg load capacity.

It features a fully welded body and chassis, 2.5mm checker plate floor, one-piece folded checker plate side and floor construction, RHS chassis support, removable front and rear drop-down gate, 32mm tie rail bar and ladder rack holders.

The tilting function is supported by 4 locking points on the drawbar, improving loading and unloading access for suitable light-duty cargo.

The running gear includes a 40mm round solid axle, 7-leaf 6mm eye-to-eye springs, brand new Sunraysia 185/14 inch rims with LT tyres, 50mm ADR standard quick release coupling, 6-inch swing-up jockey wheel, 10mm ADR safety chain, LED combination tail lights and a 7-pin flat plug.

Features & Recommended Uses

Key Features

750kg ATM
220kg tare weight excluding cage
530kg load capacity
Premium 7×5 single axle box trailer
Tilting box trailer design
Hot-dip galvanised construction
Fully welded body and chassis
2.5mm checker plate floor
Two fully welded checker plate floor pieces
Checker plate side and floor folded in one piece
50mm × 50mm RHS horizontal chassis frames
40mm × 40mm RHS vertical support
1500mm drawbar length
Removable front drop-down gate
Removable rear drop-down gate
32mm tie rail bar
Tilting function
4 locking points on drawbar
Ladder rack holders
Compliance plate / VIN number
Mudflaps
40mm round solid axle
7-leaf, 6mm eye-to-eye springs
Brand new Sunraysia rims
185/14 LT tyres
50mm ADR standard quick release coupling
6-inch swing-up jockey wheel
10mm ADR safety chain
LED combination tail lights with protective covering
7-pin flat trailer plug

Recommended Uses

General cargo transport
Garden supply transport
Property maintenance
Camping and recreational cargo
Household item transport
Light trade use
Tool transport
Small equipment transport
Rubbish and green waste transport
Everyday utility towing

Technical Specifications

Model / SKU	KKT-S75750
Trailer Type	Single Axle Box Trailer
Size	7x5
ATM	ATM 750kg
Axle Type	Single Axle
Brake Type	Unbraked
Body Finish	Hot Dip Galvanised

Build, Capacity & Towing

750kg ATM

220kg Tare

530kg Approx. Payload

Axle Type

Single Axle

Brake Type

Unbraked

Body Finish

Hot Dip Galvanised

Brakes	Unbraked
Axle	Single Axle Box Trailer

Actual carrying capacity can change when cages, ramps, toolboxes, spare wheels or other accessories are fitted. Always confirm the final trailer setup and your vehicle's towing capacity before use.

Options & Included Equipment

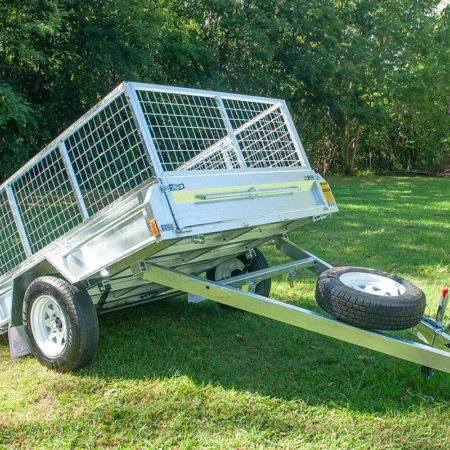

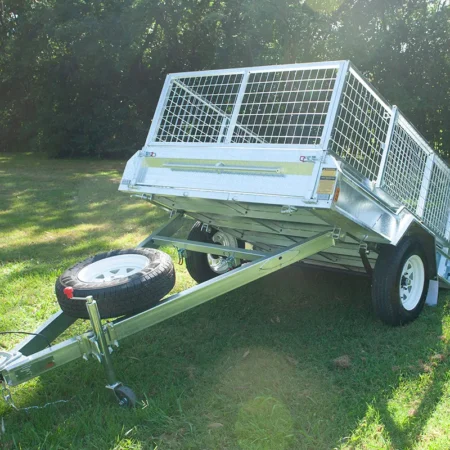

Tilting Function

The tilting function helps improve loading and unloading access for suitable cargo and light equipment.

The trailer must be locked securely using the drawbar locking points before towing.

4 Drawbar Locking Points

The drawbar includes 4 locking points for the tilting function.

All locking points must be checked and secured before transport.

2.5mm Checker Plate Floor

The floor is made from 2.5mm checker plate using two fully welded checker plate pieces.

The floor should be kept clean and inspected regularly, especially after carrying wet or abrasive loads.

One-Piece Folded Side and Floor Design

The side and floor are formed from checker plate folded in one piece.

This design supports a practical and strong trailer body for general-use applications.

RHS Chassis Support

The chassis uses 50mm × 50mm RHS horizontal frames and 40mm × 40mm RHS vertical support.

This provides structural support for the trailer body and loading area.

Removable Drop-Down Gate

The removable front and rear drop-down gate setup provides improved access to the trailer body.

All gates must be correctly closed and secured before towing.

32mm Tie Rail Bar

The 32mm tie rail bar provides practical restraint points for compatible cargo.

Only appropriately rated restraint equipment should be used.

Ladder Rack Holders

Ladder rack holders provide added flexibility for compatible utility or trade use.

Any ladder rack or long item must be correctly fitted and secured before towing.

ADR Standard Coupling and Safety Chain

The trailer includes a 50mm ADR standard quick release coupling and 10mm ADR safety chain.

The towing vehicle and towbar must be rated for the trailer’s actual loaded weight.

LED Combination Tail Lights

The trailer includes LED combination tail lights with protective covering.

Lights and wiring should be checked before each trip.

What's Included

KKT-S75750 premium single axle tilting box trailer
750kg ATM configuration
Fully welded hot-dip galvanised body and chassis
2.5mm checker plate floor
Two fully welded checker plate floor pieces
One-piece folded checker plate side and floor design
50mm × 50mm RHS horizontal chassis frames
40mm × 40mm RHS vertical support
1500mm drawbar
Removable front drop-down gate
Removable rear drop-down gate
32mm tie rail bar
Tilting function
4 locking points on drawbar
Ladder rack holders
Compliance plate / VIN number
Mudflaps
40mm round solid axle
7-leaf, 6mm eye-to-eye springs
Brand new Sunraysia 185/14 inch rims with LT tyres
50mm ADR standard quick release coupling
6-inch swing-up jockey wheel
10mm ADR safety chain
LED combination tail lights with protective covering
7-pin flat trailer plug
Cage, other accessories, cargo, machinery, straps, registration and items not specifically listed in the selected configuration or quotation are not included.

The trailer has a maximum 750kg ATM.
The stated tare weight is 220kg excluding cage.
The stated load capacity is 530kg.
If a cage or additional accessories are fitted, the final tare weight may increase and available payload may decrease.
Final payload should be confirmed against the certified tare weight shown on the compliance plate.
Loads must be evenly distributed and properly secured before towing.
The trailer must be locked securely before towing after using the tilting function.
Cargo must be suitable for the trailer size, tilting function and legal loaded weight.
Front gate, rear gate and loose items must be fully secured before towing.
Lights, bearings, tyres, coupling, safety chain and tilting lock points should be checked regularly.
The towing vehicle and towbar must be rated for the trailer’s actual loaded weight.
Images may show optional equipment or a representative configuration.
Component appearance may vary slightly between production batches.

Warranty & Frequently Asked Questions

5-Year Structural Warranty Applies to the main structural construction of eligible brand-new King Kong Trailers.

1-Year Component Warranty Selected components including leaf springs, lights, wiring and jockey wheels are covered for one year.

Yes. Compatible cages, canvas covers, ladder racks, toolboxes, spare wheels, ramps and other options are shown in the configuration section above. Available options vary by product.

Registration is not automatically included unless it is selected in the configuration. Registration availability, administration charges and branch-related costs depend on the selected pickup location.

Where available, you can choose the deposit option in the purchase section. The remaining balance and payment requirements will be shown or confirmed before pickup.

Choose the branch that is most convenient for you. Product pricing, stock availability, registration services and transfer charges can vary between Sydney / Penrith, Central Coast / Gosford, Newcastle, Canberra / Queanbeyan and Dubbo.

Product images and interactive 3D models are provided for reference. Final details can vary depending on stock, production updates, selected accessories and the final configuration.

Eligible brand-new King Kong trailers include a five-year structural warranty. Selected components, including leaf springs, lights, wiring and jockey wheels, are covered for one year. Terms and conditions apply.

Need help choosing?

Confirm the right setup before you order.

Our team can help confirm the correct product, ATM rating, accessories, registration option, stock and pickup location for your requirements.

Review Configuration Call 1300 311 333

Model Comparison

Compare Similar Models

Compare key specifications across closely related models. The current product is highlighted so you can quickly review size, capacity and running-gear differences.

Swipe or scroll horizontally to compare all models.

Trailer Size

7×5

7×4

8×5

2400mm × 1530mm × 300mm internal area

ATM

750kg

1400kg

Payload

530kg

510kg

1160kg

Tare Weight

220kg

240kg

Axle

Single Axle Box Trailer

Brakes

Unbraked

Mechanical Braked

Best For

General cargo transport, Garden supply transport

Trade equipment transport, Landscaping work
