Price shown before selected options, registration and branch transfer costs.

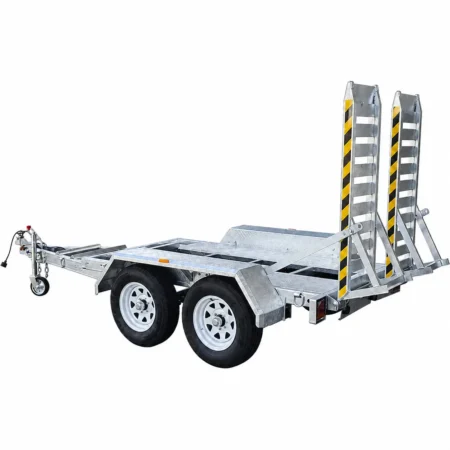

The KKT-PT84U3000 is a heavy-duty 8×4 tandem axle plant trailer with a 3000kg ATM, designed for transporting mini excavators, trenchers, skid steers and other compact machinery. It features a fully welded hot-dip galvanised monocoque chassis, checker plate floor, rocker roller suspension, 10-inch electric brakes and two heavy-duty aluminium loading ramps.
CONFIGURE YOUR TRAILER
Choose your pickup location, accessories and registration options below.
YOUR TRAILER CONFIGURATION
Order summary
TRAILER MODEL
KKT-PT84U3000 – 8 x 4 Galvanized Plant Trailer 3000KG ATM – Monocoque Chassis
PICKUP BRANCH
Select a pickup branch
Selected add-ons
0 items
OPTIONSELECTIONPRICE
No optional accessories selected.
Flexible finance options
Buy now and choose a repayment option that suits you.
Compare the product overview, features,
specifications, construction, towing setup,
available options, warranty and common questions.
3000kgATM Rating
Approx. 2430kgApprox. Payload
Approx. 570kgTare Weight
2400mm × 1235mm usable deckTrailer Size
5 YearsStructural Warranty
Product Overview
Heavy-duty 8×4 plant transport with a galvanised monocoque chassis and 3000kg ATM.
The KKT-PT84U3000 is a tandem axle plant trailer designed for transporting compact machinery in trade, landscaping, construction and property-maintenance applications.
It features a 2400mm × 1235mm usable deck, a fully welded hot-dip galvanised steel structure and a monocoque chassis design. The checker plate floor provides a durable loading surface for tracked and wheeled equipment.
With an approximate tare weight of 570kg and a 3000kg ATM, the trailer provides an estimated payload of approximately 2430kg, subject to the final certified tare weight shown on the compliance plate.
The dual axle running gear uses rocker roller suspension, parallel bearings and 10-inch electric brakes. Two heavy-duty aluminium ramps provide loading access for mini excavators, trenchers, skid steers and similar compact machinery.
Features & Recommended Uses
Key Features
3000kg ATM
Approximate 570kg tare weight
Approximate 2430kg payload
2400mm × 1235mm usable deck
Tandem axle configuration
Monocoque chassis design
Fully welded hot-dip galvanised steel construction
Checker plate floor
120mm × 50mm × 4mm drawbar
Rocker roller suspension
10-inch electric brakes
Parallel bearings
Two heavy-duty aluminium loading ramps
Ramp dimensions: 1500mm × 460mm each
Ramp load capacity up to 2000kg
Swing-up jockey wheel
LED lighting
7-pin trailer plug
Heavy-duty hammerlock-connected safety chains
Optional attachment brackets
Suitable for compact plant and machinery
Recommended Uses
Mini excavators
Trenchers
Skid steers
Compact loaders
Small rollers
Landscaping machinery
Construction and maintenance equipment
Technical Specifications
Trailer Type
Plant Trailer
Size
8×4
ATM
ATM 3000KG
Axle Type
Tandem Axle
Body Finish
Hot Dip Galvanised
Brake Type
Mechanical Braked
Build, Capacity & Towing
3000kgATM
Approx. 570kgTare
Approx. 2430kgApprox. Payload
Axle Type
Tandem Axle
Body Finish
Hot Dip Galvanised
Brake Type
Mechanical Braked
Brakes
Mechanical Braked
Axle
Tandem Axle
Actual carrying capacity can change when
cages, ramps, toolboxes, spare wheels or
other accessories are fitted. Always confirm
the final trailer setup and your vehicle's
towing capacity before use.
Options & Included Equipment
Attachment Brackets
Optional attachment brackets can provide additional mounting or restraint points for compatible machinery and equipment.
The required bracket position and intended use should be confirmed before purchase.
Registration and Collection Options
Available registration and collection selections are displayed in the product configurator.
Final availability and pricing may vary depending on the selected pickup branch and product configuration.
Compatible options are shown in the product
configuration section above.
What's Included
Fully welded hot-dip galvanised plant trailer
Monocoque chassis structure
Checker plate floor
Dual axle running gear
Rocker roller suspension
10-inch electric brakes
Parallel bearings
Two aluminium loading ramps
Swing-up jockey wheel
LED lighting system
7-pin trailer plug
Heavy-duty safety chains
Optional attachment brackets and other items are only included when selected in the product configuration or shown on the final quotation.
The trailer has a maximum 3000kg ATM.
Approximate tare weight is 570kg.
Approximate payload is 2430kg, calculated from ATM minus the stated approximate tare weight.
Final payload must be confirmed using the certified tare weight on the trailer’s compliance plate.
The loading ramps are rated up to 2000kg and must be positioned and used correctly.
Ramp capacity does not increase the trailer’s ATM or payload.
Machinery must be securely restrained using appropriate rated tie-down equipment.
Load position and weight distribution must be checked before towing.
Electric brake controller requirements should be confirmed for the towing vehicle.
Images may show optional equipment or a representative configuration.
Product appearance and component details may vary slightly between production batches.
Warranty & Frequently Asked Questions
5-Year Structural Warranty
Applies to the main structural
construction of eligible brand-new
King Kong Trailers.
1-Year Component Warranty
Selected components including leaf
springs, lights, wiring and jockey
wheels are covered for one year.
Yes. Compatible cages, canvas covers, ladder racks, toolboxes, spare wheels, ramps and other options are shown in the configuration section above. Available options vary by product.
Registration is not automatically included unless it is selected in the configuration. Registration availability, administration charges and branch-related costs depend on the selected pickup location.
Where available, you can choose the deposit option in the purchase section. The remaining balance and payment requirements will be shown or confirmed before pickup.
Choose the branch that is most convenient for you. Product pricing, stock availability, registration services and transfer charges can vary between Sydney / Penrith, Central Coast / Gosford, Newcastle, Canberra / Queanbeyan and Dubbo.
Product images and interactive 3D models are provided for reference. Final details can vary depending on stock, production updates, selected accessories and the final configuration.
Eligible brand-new King Kong trailers include a five-year structural warranty. Selected components, including leaf springs, lights, wiring and jockey wheels, are covered for one year. Terms and conditions apply.
