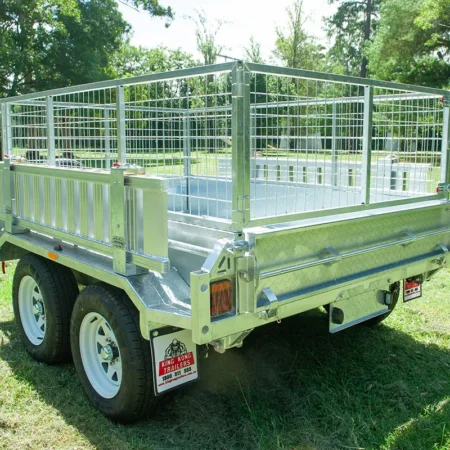

The KKT-TP85L3200 is a heavy-duty 8×5 tandem axle hydraulic tipper box trailer with a 3200kg ATM, 820kg tare weight excluding cage and 2380kg load capacity. It features a fully welded hot-dip galvanised body and chassis, checker plate floor, 300mm fully welded sides, removable front and rear drop-down gates, tie-down rails, aluminium toolbox, 4.5T hydraulic tipping system, deep cycle battery system, electric brakes on all four wheels and rocker roller suspension.
CONFIGURE YOUR TRAILER
Choose your pickup location, accessories and registration options below.
YOUR TRAILER CONFIGURATION
Order summary
KKT-TP85L3200
TRAILER MODEL
KKT-TP85L3200 - 8×5 Tandem Axle Hydraulic Tipper Galvanised Box Trailer 3200kg ATM
PICKUP BRANCH
Select a pickup branch
Selected add-ons
0 items
OPTIONSELECTIONPRICE
No optional accessories selected.
Flexible finance options
Buy now and choose a repayment option that suits you.
Compare the product overview, features,
specifications, construction, towing setup,
available options, warranty and common questions.
3200kgATM Rating
2380kgApprox. Payload
820kgTare Weight
2400mm × 1530mm × 300mm internal areaTrailer Size
5 YearsStructural Warranty
Product Overview
Compact heavy-duty 8×5 hydraulic tipper trailer with 3200kg ATM, deep cycle battery system and hot-dip galvanised construction.
The KKT-TP85L3200 is a tandem axle hydraulic tipper box trailer with a 3200kg ATM, 820kg tare weight excluding cage and 2380kg load capacity.
Its internal loading area measures approximately 2400mm × 1530mm × 300mm, providing a practical 8×5 body size for trade, landscaping, farm and worksite transport applications.
The trailer combines a fully welded hot-dip galvanised body and chassis with checker plate flooring, 300mm high fully welded sides, removable front and rear drop-down gates, tie-down rails and an aluminium toolbox.
A 4.5T, 1.2m hydraulic cylinder with hydraulic power pack supports tipping operation, while the deep cycle battery system supports practical hydraulic use.
The tandem axle running gear includes dual 50mm solid round axles, 7-leaf rocker roller suspension, 10-inch electric drum brakes on all four wheels, 14-inch wheels and 185/R14C tyres.
Features & Recommended Uses
Key Features
3200kg ATM
820kg tare weight excluding cage
2380kg load capacity
Approximate 8×5 trailer size
Internal dimensions: 2400mm × 1530mm × 300mm
1600mm drawbar length
120mm × 50mm RHS drawbar section
Fully welded body and chassis
Hot-dip galvanised construction
Checker plate floor
300mm high fully welded sides
Hydraulic tipping system
4.5T, 1.2m hydraulic cylinder
Hydraulic power pack
Deep cycle battery system included
Removable front drop-down gate
Removable rear drop-down gate
Tie-down rails
Aluminium toolbox included
User manual included
Dual 50mm round solid axles
7-leaf rocker roller suspension
10-inch electric drum brakes
Braking on all four wheels
14-inch wheels
185/R14C tyres
50mm coupling rated to 3500kg
8-inch swing-up jockey wheel
12V–24V LED tail lights
7-pin trailer plug
Compatible with flat, small round and large round connections
Recommended Uses
Landscaping work
Construction use
Farm and acreage use
Soil, mulch and gravel transport
Green waste transport
Property maintenance
Trade equipment transport
General cargo transport
Worksite material transport
Commercial transport use
Technical Specifications
Model / SKU
KKT-TP85L3200
3D URL
hydraulic_tipper
Trailer Type
Hydraulic Tipper Trailer
Size
8x5
ATM
ATM 3200kg
Axle Type
Tandem Axle
Brake Type
Electric Braked
Body Finish
Hot Dip Galvanised
Tipper Type
Hydraulic Tipper
Build, Capacity & Towing
3200kgATM
820kgTare
2380kgApprox. Payload
Axle Type
Tandem Axle
Brake Type
Electric Braked
Body Finish
Hot Dip Galvanised
Brakes
Electric Braked
Axle
Tandem Axle
Actual carrying capacity can change when
cages, ramps, toolboxes, spare wheels or
other accessories are fitted. Always confirm
the final trailer setup and your vehicle's
towing capacity before use.
Options & Included Equipment
Hydraulic Tipping System
The hydraulic tipping system includes a 4.5T, 1.2m hydraulic cylinder and hydraulic power pack.
It is designed to assist with unloading suitable bulk materials such as soil, mulch, gravel and green waste.
The trailer must be positioned on firm, stable and level ground before tipping.
Deep Cycle Battery System
The deep cycle battery system supports the hydraulic tipping function.
It should be charged, maintained and inspected according to the supplied user manual.
300mm Fully Welded Sides
The 300mm fully welded sides provide a practical lower body structure for loose materials, tools and compatible cargo.
All cargo must be properly secured before transport.
Removable Drop-Down Gates
The removable front and rear drop-down gates provide improved access to the trailer body.
All gates must be correctly closed and secured before transport.
Checker Plate Floor
The checker plate floor provides a durable loading base for materials, equipment and general cargo.
Regular cleaning and inspection are recommended, especially after carrying soil, gravel, green waste or wet materials.
Tie-Down Rails
Tie-down rails provide practical restraint points for compatible cargo and equipment.
Only appropriately rated restraint equipment should be used.
Aluminium Toolbox
An aluminium toolbox is included for storing tools, trailer accessories or small equipment.
The toolbox should be closed and secured before towing.
Electric Brakes
The trailer is fitted with 10-inch electric drum brakes on all four wheels.
A compatible electric brake controller is required in the towing vehicle.
Rocker Roller Suspension
The trailer uses 7-leaf rocker roller suspension.
This setup is designed for tandem axle trailer applications requiring stable load support and practical towing performance.
Compatible options are shown in the product
configuration section above.
What's Included
KKT-TP85L3200 hydraulic tipper trailer
3200kg ATM configuration
Fully welded hot-dip galvanised body and chassis
Checker plate floor
300mm high fully welded sides
Removable front drop-down gate
Removable rear drop-down gate
Tie-down rails
4.5T, 1.2m hydraulic cylinder
Hydraulic power pack
Deep cycle battery system
Aluminium toolbox
User manual
Tandem axle running gear
Dual 50mm solid round axles
Rocker roller suspension
10-inch electric drum brakes on all four wheels
14-inch wheels
185/R14C tyres
50mm coupling rated to 3500kg
8-inch swing-up jockey wheel
12V–24V LED lighting system
7-pin trailer plug
Flat, small round and large round plug compatibility
Cage, cargo, machinery, straps, registration and items not specifically listed in the selected configuration or quotation are not included.
The trailer has a maximum 3200kg ATM.
The stated tare weight is 820kg excluding cage.
The stated load capacity is 2380kg.
If a cage or additional accessories are fitted, the final tare weight may increase and available payload may decrease.
Final payload should be confirmed against the certified tare weight shown on the compliance plate.
Loads must be evenly distributed and properly secured before towing.
The hydraulic tipping system must only be operated on firm, stable and level ground.
Do not tip the trailer with an uneven, unsecured or overloaded load.
Front gate, rear gate, toolbox and loose items must be fully secured before towing.
A compatible electric brake controller is required in the towing vehicle.
The towing vehicle and towbar must be rated for the trailer’s actual loaded weight.
Images may show optional equipment or a representative configuration.
Component appearance may vary slightly between production batches.
Warranty & Frequently Asked Questions
5-Year Structural Warranty
Applies to the main structural
construction of eligible brand-new
King Kong Trailers.
1-Year Component Warranty
Selected components including leaf
springs, lights, wiring and jockey
wheels are covered for one year.
Yes. Compatible cages, canvas covers, ladder racks, toolboxes, spare wheels, ramps and other options are shown in the configuration section above. Available options vary by product.
Registration is not automatically included unless it is selected in the configuration. Registration availability, administration charges and branch-related costs depend on the selected pickup location.
Where available, you can choose the deposit option in the purchase section. The remaining balance and payment requirements will be shown or confirmed before pickup.
Choose the branch that is most convenient for you. Product pricing, stock availability, registration services and transfer charges can vary between Sydney / Penrith, Central Coast / Gosford, Newcastle, Canberra / Queanbeyan and Dubbo.
Product images and interactive 3D models are provided for reference. Final details can vary depending on stock, production updates, selected accessories and the final configuration.
Eligible brand-new King Kong trailers include a five-year structural warranty. Selected components, including leaf springs, lights, wiring and jockey wheels, are covered for one year. Terms and conditions apply.
