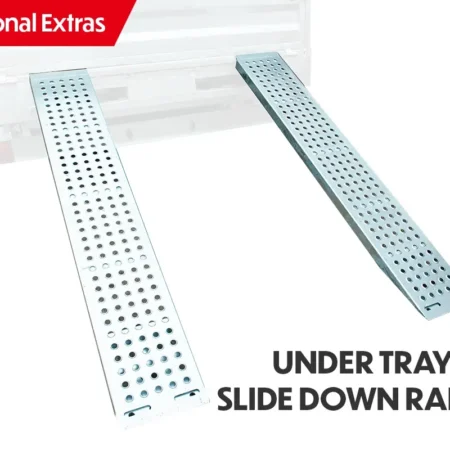

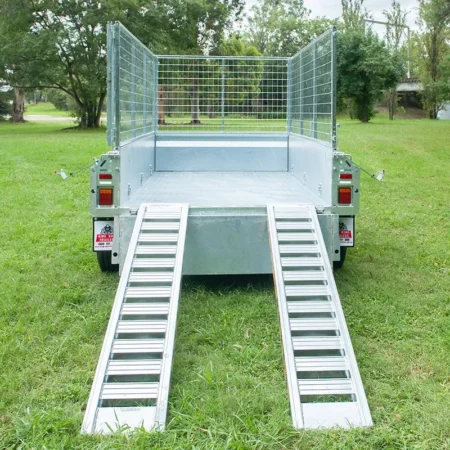

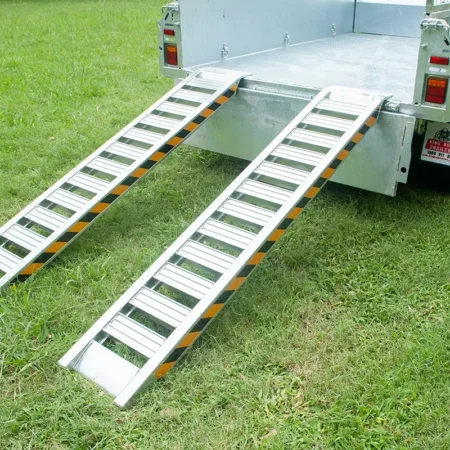

Heavy Duty Aluminium Loading Ramps

Aluminium Loading Ramps Holder

Solar Panel

On-Site Administration Fee

Blueslip or Registration

Product price:	$8,500.00
Total options:
Order total:

Pay Deposit (10%)
Pay in Full

Pay a 10% deposit per item

Request a Quote

YOUR TRAILER CONFIGURATION

Order summary

KKT-TP105H3500

TRAILER MODEL KKT-TP105H3500 - 10×5 Tandem Axle Hydraulic Tipper Galvanised Box Trailer 3500kg ATM

PICKUP BRANCH Select a pickup branch

Selected add-ons 0 items

OPTION SELECTION PRICE

No optional accessories selected.

Flexible finance options Buy now and choose a repayment option that suits you.

Apply with FASTR Repayments Calculator

PRODUCT INFORMATION

KKT-TP105H3500 - 10×5 Tandem Axle Hydraulic Tipper Galvanised Box Trailer 3500kg ATM

Compare the product overview, features, specifications, construction, towing setup, available options, warranty and common questions.

3500kg ATM Rating

2480kg Approx. Payload

1020kg Tare Weight

3040mm × 1530mm × 425mm internal area Trailer Size

5 Years Structural Warranty

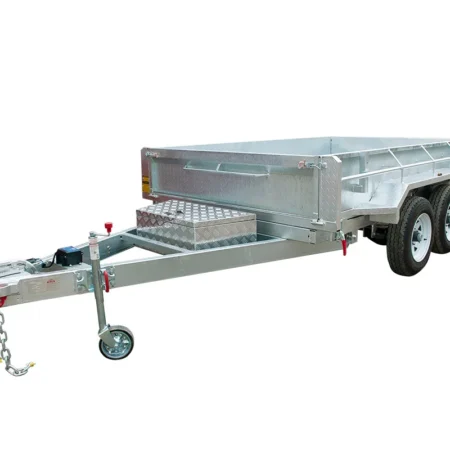

Product Overview

Heavy-duty 10×5 hydraulic tipper trailer with 3500kg ATM, aluminium toolbox, 35 AMP battery system and hot-dip galvanised construction.

The KKT-TP105H3500 is a tandem axle hydraulic tipper box trailer with a 3500kg ATM, 1020kg tare weight excluding cage and 2480kg load capacity.

Its internal loading area measures approximately 3040mm × 1530mm × 425mm, providing a practical 10×5 body size for trade, landscaping, farm and worksite transport applications.

The trailer combines a fully welded hot-dip galvanised body and chassis with checker plate flooring, removable front and rear drop-down gates, tie-down rails and an aluminium toolbox.

A 4.5T, 1.2m hydraulic cylinder with hydraulic power pack supports tipping operation, while the 35 AMP battery system supports practical hydraulic use.

The tandem axle running gear includes dual 50mm solid round axles, rocker roller suspension, 12-inch electric drum brakes on all four wheels, 15-inch wheels and 195/R15C tyres.

Features & Recommended Uses

Key Features

3500kg ATM
1020kg tare weight excluding cage
2480kg load capacity
Approximate 10×5 trailer size
Internal dimensions: 3040mm × 1530mm × 425mm
1800mm drawbar length
150mm × 50mm drawbar section
Fully welded body and chassis
Hot-dip galvanised construction
Checker plate floor
Hydraulic tipping system
4.5T, 1.2m hydraulic cylinder
Hydraulic power pack
35 AMP battery system
Australia-wide battery warranty
Removable front drop-down gate
Removable rear drop-down gate
Tie-down rails
Aluminium toolbox included
User manual included
Dual 50mm round solid axles
60mm rocker roller suspension
7-leaf, 7mm spring setup
12-inch electric drum brakes
Braking on all four wheels
15-inch wheels
195/R15C tyres
50mm coupling rated to 3500kg
8-inch swing-up jockey wheel
12V–24V LED tail lights
7-pin flat trailer plug

Recommended Uses

Landscaping work
Construction use
Farm and acreage use
Soil, mulch and gravel transport
Green waste transport
Property maintenance
Trade equipment transport
General cargo transport
Worksite material transport
Commercial transport use

Technical Specifications

Model / SKU	KKT-TP105H3500
3D URL	hydraulic_tipper
Trailer Type	Hydraulic Tipper Trailer
Size	10x5
ATM	ATM 3500kg
Axle Type	Tandem Axle
Brake Type	Electric Braked
Body Finish	Hot Dip Galvanised
Tipper Type	Hydraulic Tipper

Build, Capacity & Towing

3500kg ATM

1020kg Tare

2480kg Approx. Payload

Axle Type

Tandem Axle

Brake Type

Electric Braked

Body Finish

Hot Dip Galvanised

Brakes	Electric Braked
Axle	Tandem Axle

Actual carrying capacity can change when cages, ramps, toolboxes, spare wheels or other accessories are fitted. Always confirm the final trailer setup and your vehicle's towing capacity before use.

Options & Included Equipment

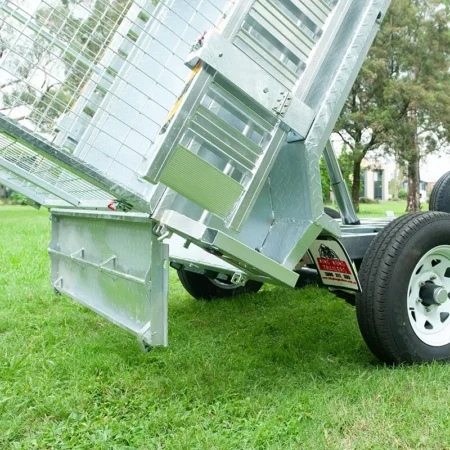

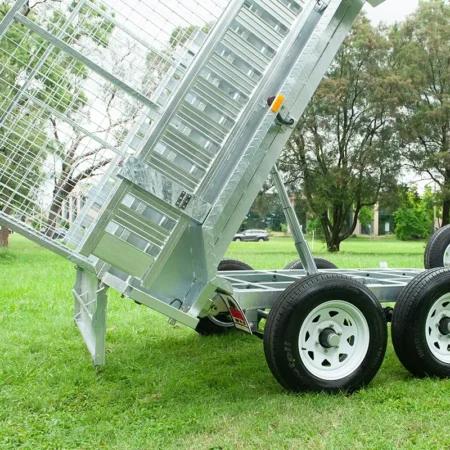

Hydraulic Tipping System

The hydraulic tipping system includes a 4.5T, 1.2m hydraulic cylinder and hydraulic power pack.

It is designed to assist with unloading suitable bulk materials such as soil, mulch, gravel and green waste.

The trailer must be positioned on firm, stable and level ground before tipping.

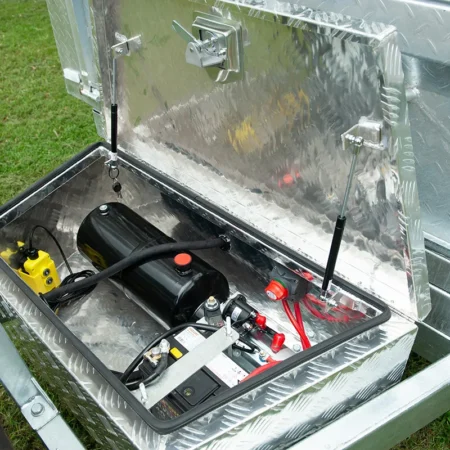

35 AMP Battery System

The 35 AMP battery system supports the hydraulic tipping system.

The battery system includes Australia-wide warranty support and should be maintained according to the supplied user manual.

Removable Drop-Down Gates

The removable front and rear drop-down gates provide improved access to the trailer body.

All gates must be correctly closed and secured before transport.

Checker Plate Floor

The checker plate floor provides a durable loading base for materials, equipment and general cargo.

Regular cleaning and inspection are recommended, especially after carrying soil, gravel, green waste or wet materials.

Tie-Down Rails

Tie-down rails provide practical restraint points for compatible cargo and equipment.

Only appropriately rated restraint equipment should be used.

Aluminium Toolbox

An aluminium toolbox is included for storing tools, trailer accessories or small equipment.

The toolbox should be closed and secured before towing.

Electric Brakes

The trailer is fitted with 12-inch electric drum brakes on all four wheels.

A compatible electric brake controller is required in the towing vehicle.

Rocker Roller Suspension

The trailer uses 60mm, 7-leaf, 7mm rocker roller suspension.

This setup is designed for heavy-duty tandem axle trailer applications.

What's Included

KKT-TP105H3500 hydraulic tipper trailer
3500kg ATM configuration
Fully welded hot-dip galvanised body and chassis
Checker plate floor
Removable front drop-down gate
Removable rear drop-down gate
Tie-down rails
4.5T, 1.2m hydraulic cylinder
Hydraulic power pack
35 AMP battery system
Aluminium toolbox
User manual
Tandem axle running gear
Dual 50mm solid round axles
Rocker roller suspension
12-inch electric drum brakes on all four wheels
15-inch wheels
195/R15C tyres
50mm coupling rated to 3500kg
8-inch swing-up jockey wheel
12V–24V LED lighting system
7-pin flat trailer plug
Cage, cargo, machinery, straps, registration and items not specifically listed in the selected configuration or quotation are not included.

The trailer has a maximum 3500kg ATM.
The stated tare weight is 1020kg excluding cage.
The stated load capacity is 2480kg.
If a cage or additional accessories are fitted, the final tare weight may increase and available payload may decrease.
Final payload should be confirmed against the certified tare weight shown on the compliance plate.
Loads must be evenly distributed and properly secured before towing.
The hydraulic tipping system must only be operated on firm, stable and level ground.
Do not tip the trailer with an uneven, unsecured or overloaded load.
Front gate, rear gate, toolbox and loose items must be fully secured before towing.
A compatible electric brake controller is required in the towing vehicle.
The towing vehicle and towbar must be rated for the trailer’s actual loaded weight.
Images may show optional equipment or a representative configuration.
Component appearance may vary slightly between production batches.

Warranty & Frequently Asked Questions

5-Year Structural Warranty Applies to the main structural construction of eligible brand-new King Kong Trailers.

1-Year Component Warranty Selected components including leaf springs, lights, wiring and jockey wheels are covered for one year.

Yes. Compatible cages, canvas covers, ladder racks, toolboxes, spare wheels, ramps and other options are shown in the configuration section above. Available options vary by product.

Registration is not automatically included unless it is selected in the configuration. Registration availability, administration charges and branch-related costs depend on the selected pickup location.

Where available, you can choose the deposit option in the purchase section. The remaining balance and payment requirements will be shown or confirmed before pickup.

Choose the branch that is most convenient for you. Product pricing, stock availability, registration services and transfer charges can vary between Sydney / Penrith, Central Coast / Gosford, Newcastle, Canberra / Queanbeyan and Dubbo.

Product images and interactive 3D models are provided for reference. Final details can vary depending on stock, production updates, selected accessories and the final configuration.

Eligible brand-new King Kong trailers include a five-year structural warranty. Selected components, including leaf springs, lights, wiring and jockey wheels, are covered for one year. Terms and conditions apply.

Need help choosing?

Confirm the right setup before you order.

Our team can help confirm the correct product, ATM rating, accessories, registration option, stock and pickup location for your requirements.

Review Configuration Call 1300 311 333

Model Comparison

Compare Similar Models

Compare key specifications across closely related models. The current product is highlighted so you can quickly review size, capacity and running-gear differences.

Swipe or scroll horizontally to compare all models.

Trailer Size

3040mm × 1530mm × 425mm internal area

3040mm × 1830mm × 425mm internal area

ATM

3500kg

Payload

2480kg

2420kg

Tare Weight

1020kg

1080kg

Axle

Tandem Axle

Brakes

Electric Braked

Tipping System

hydraulic_tipper

Best For

Landscaping work, Construction use

Construction material transport, Landscaping supply transport

Build Details

Built better where it counts.

A closer look at the construction details commonly found across the King Kong Trailers range. Select a feature to explore the materials, structure and practical finishing behind the build.

Selected build detail

Universal Trailer Details

01 / 06

Purchase Experience

From choosing the right setup to collecting with confidence.

A trailer purchase should feel clear from the beginning. Our role is to help remove uncertainty around product choice, final setup and collection, so you know what you are ordering before you arrive.

Three stages. One clear process.

This section focuses only on the buying and handover experience, without repeating specifications, warranty, finance or branch information shown elsewhere.

Choose with clarity

Review the selected model, intended use and compatible equipment before placing an order or requesting a quote.

→

Confirm before collection

Our team can verify the final setup and collection requirements before you travel, reducing last-minute changes and uncertainty.

→

Leave ready to tow

Receive a practical handover and clear guidance on the trailer setup, followed by ongoing support when questions arise after collection.

→

Customer Reviews

Trusted by customers who rely on their trailers.

Fifteen selected five-star customer reviews and ratings. On desktop, the carousel moves three reviews at a time so visitors can browse more feedback with fewer transitions.

Auto playing · 3 reviews per slide

“

Shawn and the team were great to deal with. This is the second trailer I’ve purchased from them. Needless to say, good quality.

Keegan Byrnes Google Review

“

Great service and availability. Shawn helped make sure we had everything we needed with the trailer. Easy to communicate with and super friendly.

PHYLLi Designs Google Review

“

Exceptionally quick service and a very well-manufactured trailer. I bought an 8×5 trailer with a ramp, high sides, spare wheel and toolbox and got good value for money.

Connect3 Pabbly Connect Google Review

“

Highly recommended to everyone. Good price with fantastic service.

Dave Lee Google Review

“

Very helpful service and awesome build quality. The trailers are heavy duty.

William Thomson Google Review

“

Great service. Will definitely be using these guys again in the future.

Alex Fuller Google Review

“

The product is great and the team are very helpful.

Kevin Fraser Google Review

“

Excellent service and great products. Highly recommended.

Rong Li Google Review

“

Thank you to the team for their excellent service.

Giorgios Siailis Google Review

“

Excellent business to deal with. Fred and Shawn were very helpful.

Corey Dennis Google Review

“

Easy to deal with.

Dean Rixon Google Review

“

Very good service. Thank you.

Geoff Nagle Google Review

“

Great service.

Brodie Anderson Google Review

★

Five-star rating shared on Google.

Luke Newcombe 5-Star Google Rating

★

Five-star rating shared on Google.

Inma Vassar 5-Star Google Rating

KKT-TP105H3500 – 10×5 Tandem Axle Hydraulic Tipper Galvanised Box Trailer 3500kg ATM

CONFIGURE YOUR TRAILER

Choose your pickup location, accessories and registration options below.

Choose your preferred pickup location(branches):

Mesh Cage

Canvas Cover

Ladder Racks

195R15 Spare Wheel

Spare Wheel Bracket

Side Wall Tie Down Points

Trapezoid Tool Box

Heavy Duty Aluminium Loading Ramps

Aluminium Loading Ramps Holder

Solar Panel

On-Site Administration Fee

Blueslip or Registration

KKT-TP105H3500 - 10×5 Tandem Axle Hydraulic Tipper Galvanised Box Trailer 3500kg ATM

Product Overview

Features & Recommended Uses

Key Features

Recommended Uses

Technical Specifications

Build, Capacity & Towing

Axle Type

Brake Type

Body Finish

Options & Included Equipment

Hydraulic Tipping System

The hydraulic tipping system includes a 4.5T, 1.2m hydraulic cylinder and hydraulic power pack.

It is designed to assist with unloading suitable bulk materials such as soil, mulch, gravel and green waste.

The trailer must be positioned on firm, stable and level ground before tipping.

35 AMP Battery System

The 35 AMP battery system supports the hydraulic tipping system.

The battery system includes Australia-wide warranty support and should be maintained according to the supplied user manual.

Removable Drop-Down Gates

The removable front and rear drop-down gates provide improved access to the trailer body.

All gates must be correctly closed and secured before transport.

Checker Plate Floor

The checker plate floor provides a durable loading base for materials, equipment and general cargo.

Regular cleaning and inspection are recommended, especially after carrying soil, gravel, green waste or wet materials.

Tie-Down Rails

Tie-down rails provide practical restraint points for compatible cargo and equipment.

Only appropriately rated restraint equipment should be used.

Aluminium Toolbox

An aluminium toolbox is included for storing tools, trailer accessories or small equipment.

The toolbox should be closed and secured before towing.

Electric Brakes

The trailer is fitted with 12-inch electric drum brakes on all four wheels.

A compatible electric brake controller is required in the towing vehicle.

Rocker Roller Suspension

The trailer uses 60mm, 7-leaf, 7mm rocker roller suspension.

This setup is designed for heavy-duty tandem axle trailer applications.

What's Included

Warranty & Frequently Asked Questions

Confirm the right setup before you order.

Compare Similar Models

KKT-TP105H3500 - 10×5 Tandem Axle Hydraulic Tipper Galvanised Box Trailer 3500kg ATM

KKT-TP105H3500RP - 10×5 Tandem Axle Hydraulic Tipper Galvanised Box Trailer 3500kg ATM WITH RAMPS AND RAMP HOLDER

KKT-TP106H3500 - 10×6 Tandem Axle Hydraulic Tipper Galvanised Box Trailer 3500kg ATM

KKT-TP106H3500RP - 10×6 Tandem Axle Hydraulic Tipper Galvanised Box Trailer 3500kg ATM WITH RAMPS AND RAMP HOLDER

Built better where it counts.

Explore the range around this model.

KKT-SP85H1800 - 8×5 Hydraulic Tipper Galvanised Box Trailer 1800kg ATM with Electric Brake

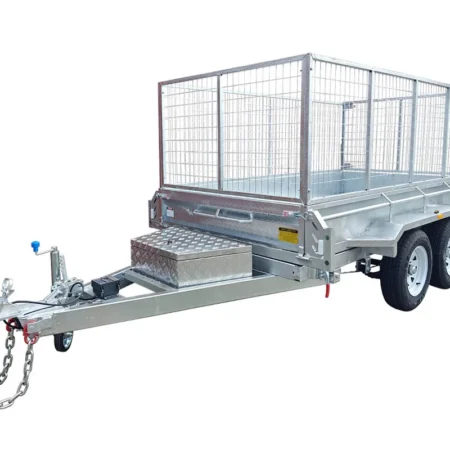

KKT-TP105L3200 - 10×5 Tandem Axle Hydraulic Tipper Galvanised Box Trailer 3200kg ATM

KKT-FT147TP1-4500 - 14×7 Hydraulic Tipper Galvanised Flat Top Trailer 4500kg ATM WITH 900mm CAGE

From choosing the right setup to collecting with confidence.

Choose with clarity

Confirm before collection

Leave ready to tow

Trusted by customers who rely on their trailers.

By Categories
