Compare the product overview, features,
specifications, construction, towing setup,
available options, warranty and common questions.
3500kgATM Rating
2420kgApprox. Payload
1080kgTare Weight
3040mm × 1830mm × 425mm internal areaTrailer Size
5 YearsStructural Warranty
Product Overview
Heavy-duty 10×6 hydraulic tipper galvanised box trailer with 3500kg ATM, 425mm sides, hydraulic power pack and 2420kg calculated payload before cage or accessory weight.
The KKT-TP106H3500 is a heavy-duty tandem axle hydraulic tipper box trailer designed for compatible construction materials, landscaping supplies, farm use, trade equipment and general transport applications.
It has a 3500kg ATM, 1080kg tare weight excluding cage and 2420kg calculated payload before cage or accessory weight, with an internal size of approximately 3040mm × 1830mm × 425mm.
The trailer combines a fully welded hot-dip galvanised body and chassis with checker plate flooring, removable front and rear drop-down gates, tie-down rails, aluminium toolbox and user manual.
The hydraulic system includes a 4.5T 1.2m hydraulic cylinder with hydraulic power pack, supported by a 35 AMP battery system with Australia wide warranty.
The running gear includes dual 50mm round solid axles, 12-inch electric drum brakes on all four wheels, 60mm 7-leaf rocker roller suspension, 15-inch wheels, 195/R15C tyres, a 50mm 3500kg coupling, 8-inch swing-up jockey wheel, 12V–24V LED lights and a 7-pin flat plug.
Features & Recommended Uses
Key Features
3500kg ATM
1080kg tare weight excluding cage
2420kg calculated payload before cage or accessory weight
10×6 tandem axle hydraulic tipper box trailer
Internal dimensions: 3040mm × 1830mm × 425mm
Hot-dip galvanised body material
Fully welded body and chassis
Checker plate floor
1800mm drawbar length
150mm × 50mm drawbar section
Removable front drop-down gate
Removable rear drop-down gate
4.5T 1.2m hydraulic cylinder
Hydraulic power pack
35 AMP battery system
Australia wide battery warranty
Tie-down rails
Aluminium toolbox
User manual included
Dual 50mm round solid axles
12-inch electric drum brakes
Braking on all four wheels
60mm rocker roller suspension
7-leaf, 7mm spring setup
15-inch wheels
195/R15C tyres
50mm coupling rated to 3500kg
8-inch swing-up jockey wheel
12V–24V LED tail lights
7-pin flat trailer plug
Recommended Uses
Construction material transport
Landscaping supply transport
Farm and rural property use
Trade equipment transport
Soil, mulch and gravel transport
Green waste transport
Building supply transport
Worksite material transport
General cargo transport
General heavy-duty towing
Technical Specifications
Model / SKU
KKT-TP106H3500
3D URL
hydraulic_tipper
Trailer Type
Hydraulic Tipper Trailer
Size
10x6
ATM
ATM 3500kg
Axle Type
Tandem Axle
Brake Type
Electric Braked
Body Finish
Hot Dip Galvanised
Tipper Type
Hydraulic Tipper
Build, Capacity & Towing
3500kgATM
1080kgTare
2420kgApprox. Payload
Axle Type
Tandem Axle
Brake Type
Electric Braked
Body Finish
Hot Dip Galvanised
Brakes
Electric Braked
Axle
Tandem Axle
Actual carrying capacity can change when
cages, ramps, toolboxes, spare wheels or
other accessories are fitted. Always confirm
the final trailer setup and your vehicle's
towing capacity before use.
Options & Included Equipment
Hydraulic Tipping Function
The hydraulic tipping function helps improve unloading efficiency for suitable loose materials and compatible cargo.
The trailer must be fully lowered and secured before towing.
4.5T 1.2m Hydraulic Cylinder
The trailer includes a 4.5T 1.2m hydraulic cylinder with hydraulic power pack.
The hydraulic system should be inspected and maintained regularly.
35 AMP Battery System
The 35 AMP battery system supports operation of the hydraulic tipping system.
The battery should be maintained and charged as required.
Removable Front and Rear Drop-Down Gates
The removable front and rear drop-down gates provide practical access for loading, unloading and cleaning.
All gates must be fully closed and secured before towing.
Checker Plate Floor
The checker plate floor provides a durable loading surface for compatible materials, equipment and cargo.
The floor should be kept clean and inspected regularly, especially after carrying soil, gravel, wet materials or abrasive loads.
Tie-Down Rails
Tie-down rails provide practical restraint points for compatible cargo and equipment.
Only appropriately rated restraint equipment should be used.

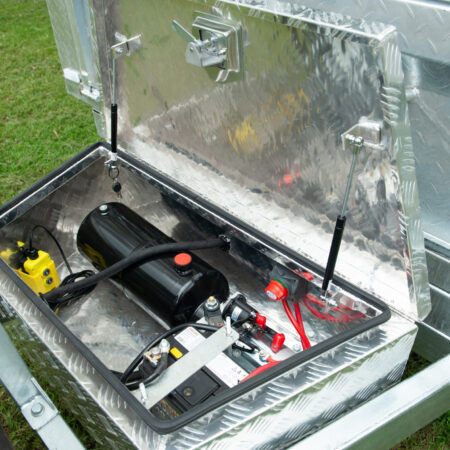

Aluminium Toolbox
The aluminium toolbox provides practical storage for tools, straps and trailer accessories.
The toolbox must be closed and secured before towing.
Electric Brakes
The trailer is fitted with 12-inch electric drum brakes on all four wheels.
A compatible electric brake controller is required in the towing vehicle.
Rocker Roller Suspension
The 60mm, 7-leaf, 7mm rocker roller suspension is designed for tandem axle trailer applications.
It supports stable load handling and practical towing performance.
3500kg Coupling
The trailer includes a 50mm coupling rated to 3500kg.
The towing vehicle and towbar must be rated for the trailer’s actual loaded weight.
Compatible options are shown in the product
configuration section above.
What's Included
KKT-TP106H3500 hydraulic tipper box trailer
3500kg ATM configuration
1080kg tare weight excluding cage
2420kg calculated payload before cage or accessory weight
Fully welded hot-dip galvanised body and chassis
Checker plate floor
3040mm × 1830mm × 425mm internal trailer size
1800mm drawbar
150mm × 50mm drawbar section
Removable front drop-down gate
Removable rear drop-down gate
4.5T 1.2m hydraulic cylinder
Hydraulic power pack
35 AMP battery system with Australia wide warranty
Tie-down rails
Aluminium toolbox
User manual
Dual 50mm round solid axles
12-inch electric drum brakes on all four wheels
60mm, 7-leaf, 7mm rocker roller suspension
15-inch wheels
195/R15C tyres
50mm coupling rated to 3500kg
8-inch swing-up jockey wheel
12V–24V LED tail lights
7-pin flat trailer plug
Cage, ramps, ramp holder, cargo, machinery, straps, registration and items not specifically listed in the selected configuration or quotation are not included.
The trailer has a maximum 3500kg ATM.
The stated tare weight is 1080kg excluding cage.
The calculated payload is 2420kg before cage or accessory weight.
If a cage or additional accessories are fitted, the final tare weight may increase and available payload may decrease.
Final payload should be confirmed against the certified tare weight shown on the compliance plate.
Loads must be suitable for the trailer size, tipping function and legal loaded weight.
Loads must be evenly distributed and properly secured before towing.
The trailer must be fully lowered and secured before towing.
Front gate, rear gate, toolbox and loose items must be fully secured before towing.
A compatible electric brake controller is required in the towing vehicle.
The towing vehicle and towbar must be rated for the trailer’s actual loaded weight.
The user manual should be read before operating the trailer and hydraulic tipping system.
Lights, brakes, bearings, tyres, hydraulic system, battery, coupling and suspension should be checked regularly.
Images may show optional equipment or a representative configuration.
Component appearance may vary slightly between production batches.
Warranty & Frequently Asked Questions
5-Year Structural Warranty
Applies to the main structural
construction of eligible brand-new
King Kong Trailers.
1-Year Component Warranty
Selected components including leaf
springs, lights, wiring and jockey
wheels are covered for one year.
Yes. Compatible cages, canvas covers, ladder racks, toolboxes, spare wheels, ramps and other options are shown in the configuration section above. Available options vary by product.
Registration is not automatically included unless it is selected in the configuration. Registration availability, administration charges and branch-related costs depend on the selected pickup location.
Where available, you can choose the deposit option in the purchase section. The remaining balance and payment requirements will be shown or confirmed before pickup.
Choose the branch that is most convenient for you. Product pricing, stock availability, registration services and transfer charges can vary between Sydney / Penrith, Central Coast / Gosford, Newcastle, Canberra / Queanbeyan and Dubbo.
Product images and interactive 3D models are provided for reference. Final details can vary depending on stock, production updates, selected accessories and the final configuration.
Eligible brand-new King Kong trailers include a five-year structural warranty. Selected components, including leaf springs, lights, wiring and jockey wheels, are covered for one year. Terms and conditions apply.
