KKT-TP106H3500RP – 10×6 Tandem Axle Hydraulic Tipper Galvanised Box Trailer 3500kg ATM WITH RAMPS AND RAMP HOLDER
$10,100.00
Price shown before selected options, registration and branch transfer costs.
The KKT-TP106H3500RP is a heavy-duty 10×6 tandem axle hydraulic tipper box trailer with a 3500kg ATM, 1512kg tare weight and 1988kg load capacity. It features a fully welded hot-dip galvanised body and chassis, checker plate floor, removable front and rear drop-down gates, ramps with ramp holder, 4.5T hydraulic tipping system, 35 AMP battery system, tie-down rails, aluminium toolbox and electric brakes on all four wheels.
CONFIGURE YOUR TRAILER
Choose your pickup location, accessories and registration options below.
YOUR TRAILER CONFIGURATION
Order summary
KKT-TP106H3500RP
TRAILER MODEL
KKT-TP106H3500RP - 10×6 Tandem Axle Hydraulic Tipper Galvanised Box Trailer 3500kg ATM WITH RAMPS AND RAMP HOLDER
PICKUP BRANCH
Select a pickup branch
Selected add-ons
0 items
OPTIONSELECTIONPRICE
No optional accessories selected.
Flexible finance options
Buy now and choose a repayment option that suits you.
KKT-TP106H3500RP - 10×6 Tandem Axle Hydraulic Tipper Galvanised Box Trailer 3500kg ATM WITH RAMPS AND RAMP HOLDER
Compare the product overview, features,
specifications, construction, towing setup,
available options, warranty and common questions.
3500kgATM Rating
1988kgApprox. Payload
1512kgTare Weight
3040mm × 1830mm × 425mm internal areaTrailer Size
5 YearsStructural Warranty
Product Overview
Heavy-duty 10×6 hydraulic tipper trailer with 3500kg ATM, ramps, ramp holder, aluminium toolbox and 4.5T hydraulic system.
The KKT-TP106H3500RP is a tandem axle hydraulic tipper box trailer with a 3500kg ATM, 1512kg tare weight and 1988kg load capacity.
Its internal loading area measures approximately 3040mm × 1830mm × 425mm, providing a practical 10×6 body size for trade, landscaping, farm and worksite transport applications.
The trailer combines a fully welded hot-dip galvanised body and chassis with checker plate flooring, removable front and rear drop-down gates, tie-down rails and an aluminium toolbox.
A 4.5T, 1.2m hydraulic cylinder with hydraulic power pack supports tipping operation, while the 35 AMP battery system supports practical hydraulic use.
Ramps with a ramp holder provide added loading flexibility for compatible equipment, and the tandem axle running gear includes dual 50mm solid round axles, rocker roller suspension, 12-inch electric drum brakes on all four wheels and 195/R15C tyres.
Features & Recommended Uses
Key Features
3500kg ATM
1512kg tare weight
1988kg load capacity
Approximate 10×6 trailer size
Internal dimensions: 3040mm × 1830mm × 425mm
1800mm drawbar length
150mm × 50mm drawbar section
Fully welded body and chassis
Hot-dip galvanised construction
Checker plate floor
Hydraulic tipping system
4.5T, 1.2m hydraulic cylinder
Hydraulic power pack
35 AMP battery system
Australia-wide battery warranty
Removable front drop-down gate
Removable rear drop-down gate
Ramps included
Ramp holder included
Tie-down rails
Aluminium toolbox included
User manual included
Dual 50mm round solid axles
60mm rocker roller suspension
7-leaf, 7mm spring setup
12-inch electric drum brakes
Braking on all four wheels
15-inch wheels
195/R15C tyres
50mm coupling rated to 3500kg
8-inch swing-up jockey wheel
12V–24V LED tail lights
7-pin flat trailer plug
Recommended Uses
Landscaping work
Construction use
Farm and acreage use
Soil, mulch and gravel transport
Green waste transport
Property maintenance
Trade equipment transport
Compatible machinery loading
General cargo transport
Worksite material transport
Technical Specifications
Model / SKU
KKT-TP106H3500RP
3D URL
hydraulic_tipper
Trailer Type
Plant Trailer
Size
10x6
ATM
ATM 3500kg
Axle Type
Tandem Axle
Brake Type
Electric Braked
Body Finish
Hot Dip Galvanised
Tipper Type
Hydraulic Tipper
Build, Capacity & Towing
3500kgATM
1512kgTare
1988kgApprox. Payload
Axle Type
Tandem Axle
Brake Type
Electric Braked
Body Finish
Hot Dip Galvanised
Brakes
Electric Braked
Axle
Tandem Axle
Actual carrying capacity can change when
cages, ramps, toolboxes, spare wheels or
other accessories are fitted. Always confirm
the final trailer setup and your vehicle's
towing capacity before use.
Options & Included Equipment

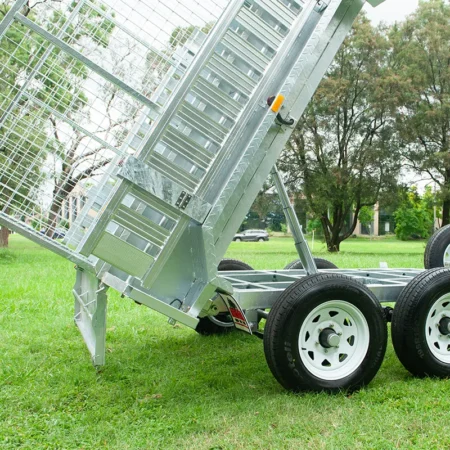

Hydraulic Tipping System
The hydraulic tipping system includes a 4.5T, 1.2m hydraulic cylinder and hydraulic power pack.
It is designed to assist with unloading suitable bulk materials such as soil, mulch, gravel and green waste.
The trailer must be positioned on firm, stable and level ground before tipping.
35 AMP Battery System
The 35 AMP battery system supports the hydraulic tipping system.
The battery system includes Australia-wide warranty support and should be maintained according to the supplied user manual.

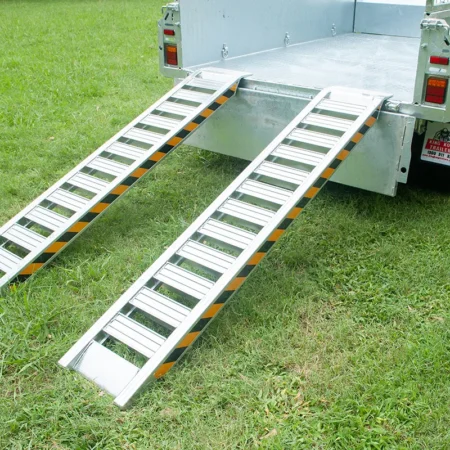

Ramps
Ramps are included with this model.
They provide additional loading flexibility for compatible machinery and equipment.
Ramps must be correctly positioned and secured before use, and the loaded equipment must remain within the trailer and ramp capacity.
Ramp Holder
The ramp holder allows the loading ramps to be stored securely when not in use.
The ramps must be fully secured in the holder before towing.

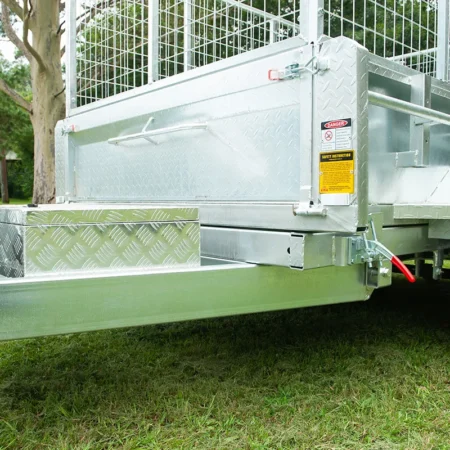

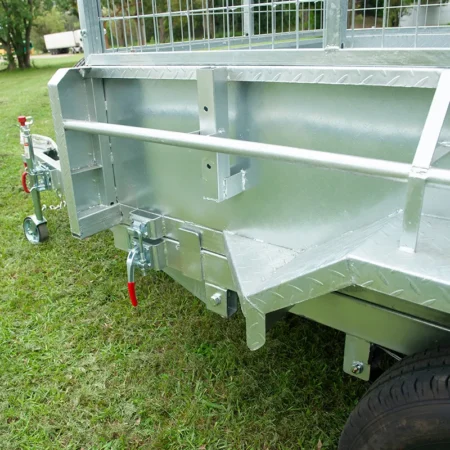

Removable Drop-Down Gates
The removable front and rear drop-down gates provide improved access to the trailer body.
All gates must be correctly closed and secured before transport.

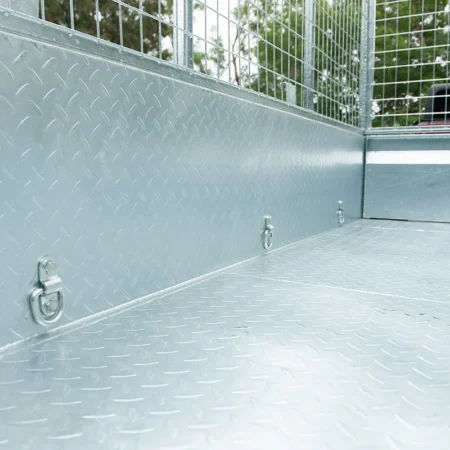

Checker Plate Floor
The checker plate floor provides a durable loading base for materials, equipment and general cargo.
Regular cleaning and inspection are recommended, especially after carrying soil, gravel, green waste or wet materials.
Tie-Down Rails
Tie-down rails provide practical restraint points for compatible cargo and equipment.
Only appropriately rated restraint equipment should be used.

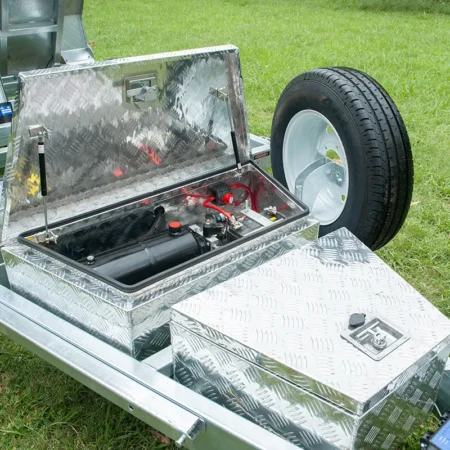

Aluminium Toolbox
An aluminium toolbox is included for storing tools, trailer accessories or small equipment.
The toolbox should be closed and secured before towing.
Compatible options are shown in the product
configuration section above.
What's Included
KKT-TP106H3500RP hydraulic tipper trailer
Fully welded hot-dip galvanised body and chassis
Checker plate floor
Removable front drop-down gate
Removable rear drop-down gate
Tie-down rails
4.5T, 1.2m hydraulic cylinder
Hydraulic power pack
35 AMP battery system
Ramps
Ramp holder
Aluminium toolbox
User manual
Tandem axle running gear
Dual 50mm solid round axles
Rocker roller suspension
12-inch electric drum brakes on all four wheels
15-inch wheels
195/R15C tyres
50mm coupling rated to 3500kg
8-inch swing-up jockey wheel
12V–24V LED lighting system
7-pin flat trailer plug
Cargo, machinery, straps, registration and items not specifically listed in the selected configuration or quotation are not included.
The trailer has a maximum 3500kg ATM.
The stated tare weight is 1512kg.
The stated load capacity is 1988kg.
Final payload should be confirmed against the certified tare weight shown on the compliance plate.
Loads must be evenly distributed and properly secured before towing.
The hydraulic tipping system must only be operated on firm, stable and level ground.
Do not tip the trailer with an uneven, unsecured or overloaded load.
Ramps must be correctly positioned and secured before loading or unloading.
Ramp use must be suitable for the weight and type of equipment being loaded.
Gates, ramps, toolbox and all loose items must be fully secured before towing.

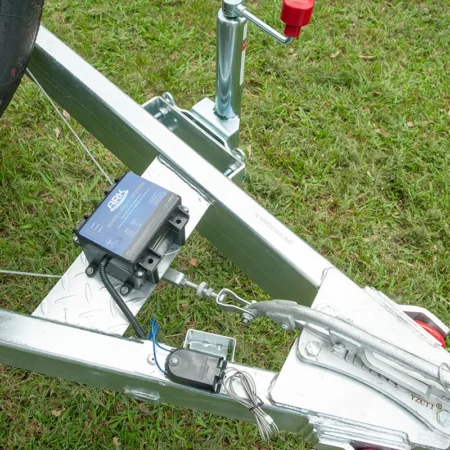

A compatible electric brake controller is required in the towing vehicle.
The towing vehicle and towbar must be rated for the trailer’s actual loaded weight.
Images may show optional equipment or a representative configuration.
Component appearance may vary slightly between production batches.
Warranty & Frequently Asked Questions
5-Year Structural Warranty
Applies to the main structural
construction of eligible brand-new
King Kong Trailers.
1-Year Component Warranty
Selected components including leaf
springs, lights, wiring and jockey
wheels are covered for one year.
Yes. Compatible cages, canvas covers, ladder racks, toolboxes, spare wheels, ramps and other options are shown in the configuration section above. Available options vary by product.
Registration is not automatically included unless it is selected in the configuration. Registration availability, administration charges and branch-related costs depend on the selected pickup location.
Where available, you can choose the deposit option in the purchase section. The remaining balance and payment requirements will be shown or confirmed before pickup.
Choose the branch that is most convenient for you. Product pricing, stock availability, registration services and transfer charges can vary between Sydney / Penrith, Central Coast / Gosford, Newcastle, Canberra / Queanbeyan and Dubbo.
Product images and interactive 3D models are provided for reference. Final details can vary depending on stock, production updates, selected accessories and the final configuration.
Eligible brand-new King Kong trailers include a five-year structural warranty. Selected components, including leaf springs, lights, wiring and jockey wheels, are covered for one year. Terms and conditions apply.
Need help choosing?
Confirm the right setup before you order.
Our team can help confirm the correct product,
ATM rating, accessories, registration option,
stock and pickup location for your requirements.
Compare key specifications across closely
related models. The current product is
highlighted so you can quickly review size,
capacity and running-gear differences.
Swipe or scroll horizontally to compare all models.
Compare
4 Models
Current Model
KKT-TP106H3500RP - 10×6 Tandem Axle Hydraulic Tipper Galvanised Box Trailer 3500kg ATM WITH RAMPS AND RAMP HOLDER
SKU:
KKT-TP106H3500RP
$10,100.00
Current Model
Same Size
KKT-TP105H3500RP - 10×5 Tandem Axle Hydraulic Tipper Galvanised Box Trailer 3500kg ATM WITH RAMPS AND RAMP HOLDER
SKU:
KKT-TP105H3500RP
$9,900.00Original price was: $9,900.00.$9,100.00Current price is: $9,100.00.
A closer look at the construction details commonly found
across the King Kong Trailers range. Select a feature to
explore the materials, structure and practical finishing
behind the build.
01
Selected build detail
Universal Trailer Details
01
/
06
Compare Your Options
Explore the range around this model.
Three relevant alternatives selected from the
current product range, helping customers compare
size, ATM and axle configuration before deciding.
Currently Viewing
KKT-TP106H3500RP - 10×6 Tandem Axle Hydraulic Tipper Galvanised Box Trailer 3500kg ATM WITH RAMPS AND RAMP HOLDER ·
10×6 · 3500kg ATM · Tandem Axle
Smaller & Lighter
KKT-SP851800 - 8×5 Hydraulic Tipper Galvanised Box Trailer 1800kg ATM with Electric Brake
A more compact or lower-rated option for lighter everyday use.
8×5
1800kg ATM
Single Axle
$6,730.00Original price was: $6,730.00.$6,199.00Current price is: $6,199.00.
From choosing the right setup to collecting with confidence.
A trailer purchase should feel clear from the beginning.
Our role is to help remove uncertainty around
product choice, final setup and collection, so you know what
you are ordering before you arrive.
Three stages. One clear process.
This section focuses only on the buying and handover
experience, without repeating specifications, warranty,
finance or branch information shown elsewhere.
01
Choose with clarity
Review the selected model, intended use and compatible
equipment before placing an order or requesting a quote.
→02
Confirm before collection
Our team can verify the final setup and collection
requirements before you travel, reducing last-minute
changes and uncertainty.
→03
Leave ready to tow
Receive a practical handover and clear guidance on the
trailer setup, followed by ongoing support when questions
arise after collection.
→
Customer Reviews
Trusted by customers who rely on their trailers.
Fifteen selected five-star customer reviews and ratings.
On desktop, the carousel moves three reviews at a time so
visitors can browse more feedback with fewer transitions.
Auto playing · 3 reviews per slide
“
Shawn and the team were great to deal with. This is the
second trailer I’ve purchased from them. Needless to say,
good quality.
Keegan ByrnesGoogle Review
“
Great service and availability. Shawn helped make sure
we had everything we needed with the trailer. Easy to
communicate with and super friendly.
PHYLLi DesignsGoogle Review
“
Exceptionally quick service and a very well-manufactured
trailer. I bought an 8×5 trailer with a ramp, high sides,
spare wheel and toolbox and got good value for money.
Connect3 Pabbly ConnectGoogle Review
“
Highly recommended to everyone. Good price with
fantastic service.
Dave LeeGoogle Review
“
Very helpful service and awesome build quality.
The trailers are heavy duty.
William ThomsonGoogle Review
“
Great service. Will definitely be using these guys
again in the future.
Alex FullerGoogle Review
“
The product is great and the team are very helpful.
Kevin FraserGoogle Review
“
Excellent service and great products. Highly recommended.
Rong LiGoogle Review
“
Thank you to the team for their excellent service.
Giorgios SiailisGoogle Review
“
Excellent business to deal with. Fred and Shawn were
very helpful.
Corey DennisGoogle Review
“
Easy to deal with.
Dean RixonGoogle Review
“
Very good service. Thank you.
Geoff NagleGoogle Review
“
Great service.
Brodie AndersonGoogle Review
★
Five-star rating shared on Google.
Luke Newcombe5-Star Google Rating
★
Five-star rating shared on Google.
Inma Vassar5-Star Google Rating
Final StepConfigure · Quote · Collect
Ready when you are
Choose the setup. We’ll help with the rest.
Currently Viewing

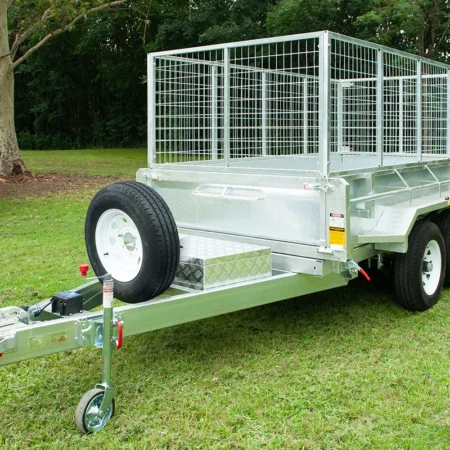

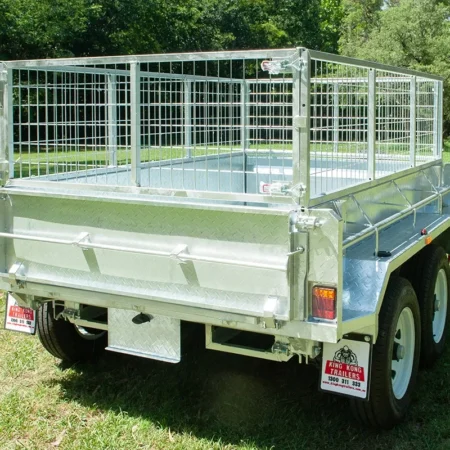

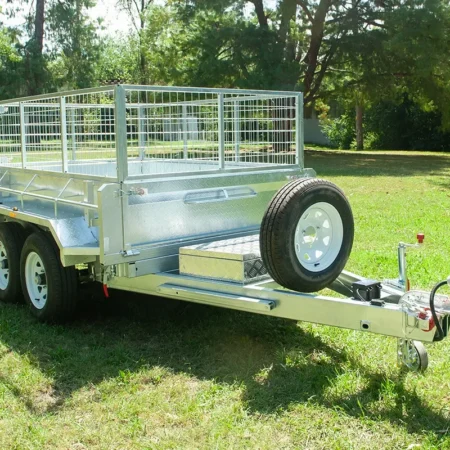

KKT-TP106H3500RP - 10×6 Tandem Axle Hydraulic Tipper Galvanised Box Trailer 3500kg ATM WITH RAMPS AND RAMP HOLDER
KKT-TP106H3500RP
Take the next step
Return to the configuration, review the selected
options or speak with our team before proceeding.
