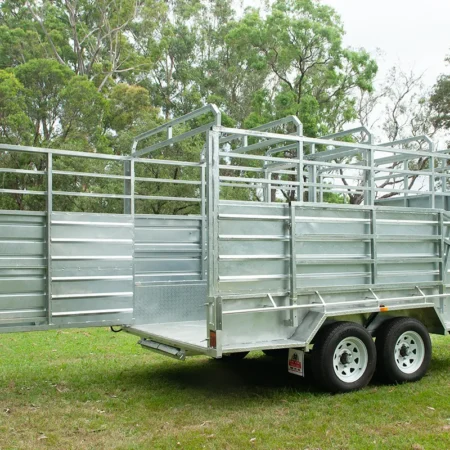

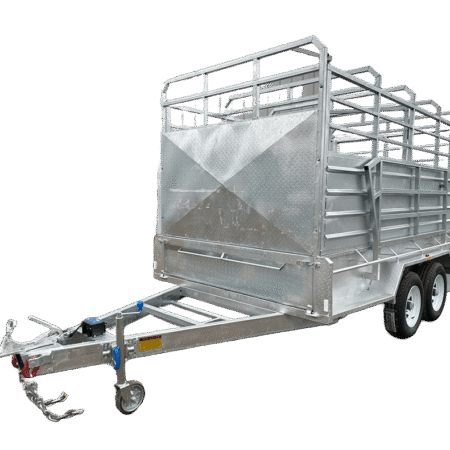

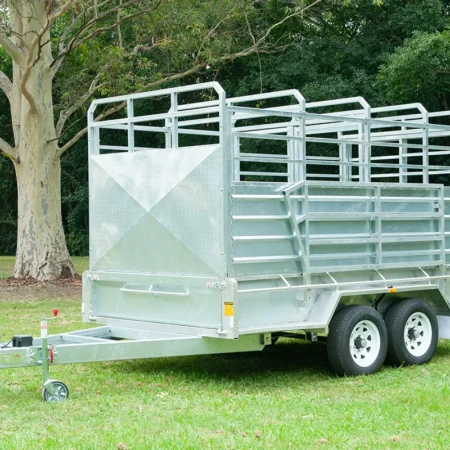

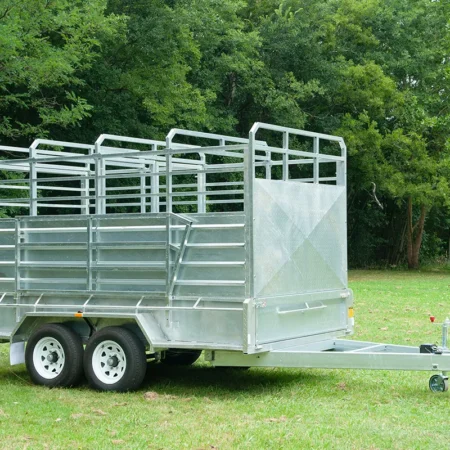

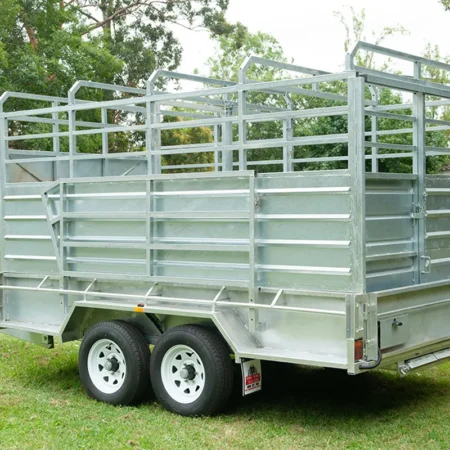

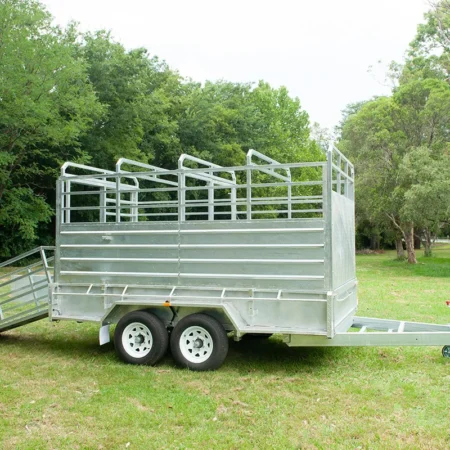

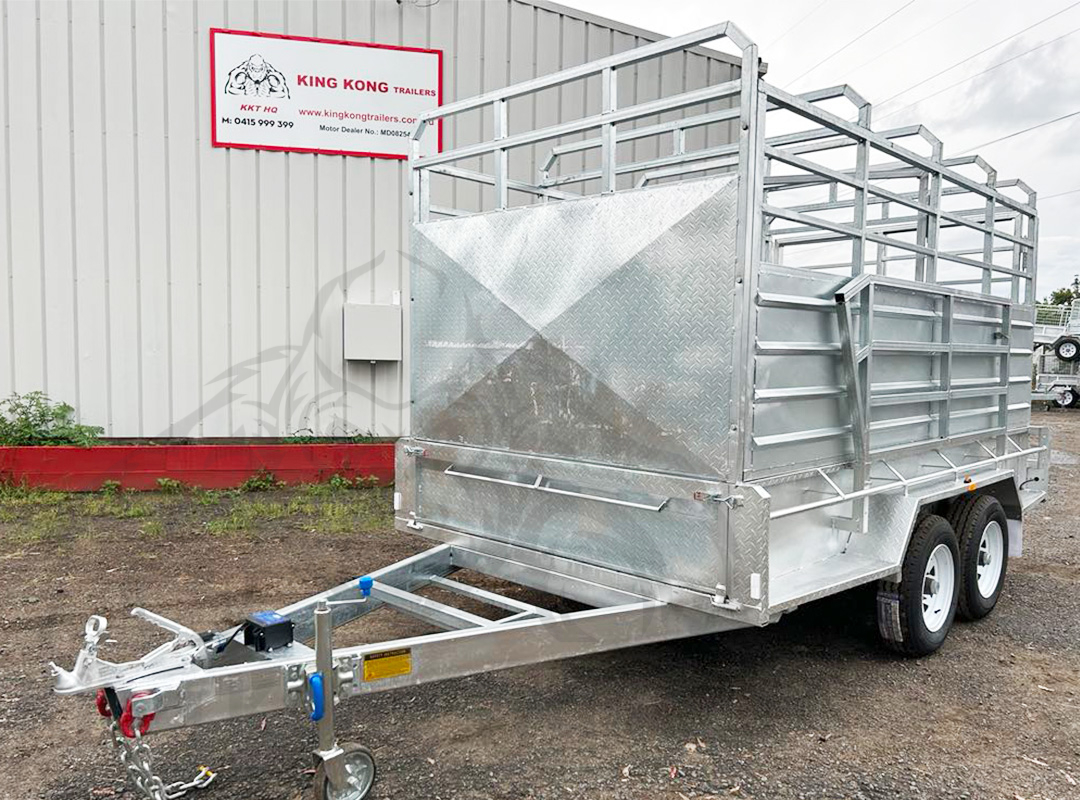

Heavy-duty 12×6 hot-dip galvanised livestock trailer with aluminium side rails, steel ramps, 3500kg ATM and 2060kg load capacity.
The KKT-T126U-CATTLE is a heavy-duty livestock trailer designed for compatible livestock, farm transport, rural property use and agricultural applications.
It has a 3500kg ATM, 1440kg tare weight and 2060kg load capacity, with an internal size of approximately 3505mm × 1830mm × 1833mm.
The trailer combines a fully welded hot-dip galvanised body and chassis with a checker plate floor, removable crate cage, aluminium side rails, removable front and rear gates, 2m multi-functional steel ramps with two rails and tie-down rails.
The running gear includes dual 50mm round solid axles, 12-inch electric drum brakes on all four wheels, 60mm 7-leaf rocker roller suspension, 195/R15C tyres, a 50mm 3500kg coupling, 8-inch swing-up jockey wheel, 12V–24V LED lighting and a 7-pin flat plug.
Features & Recommended Uses
Key Features
3500kg ATM
1440kg tare weight
2060kg load capacity
12×6 livestock trailer design
Internal dimensions: 3505mm × 1830mm × 1833mm
Hot-dip galvanised body material
Fully welded body and chassis
Checker plate floor
Removable crate cage
Aluminium side rails
Removable front gate
Removable rear gate
2m multi-functional steel ramps
Two-rail ramp design
Tie-down rails

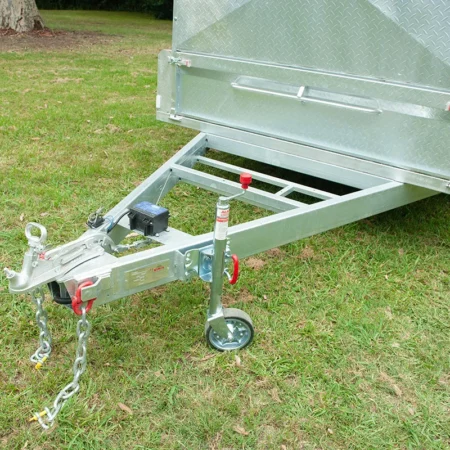

1900mm drawbar length
120mm × 52mm drawbar structure
Dual 50mm round solid axles
12-inch electric drum brakes
Braking on all four wheels
60mm rocker roller suspension
7-leaf, 7mm spring setup
195/R15C tyres
50mm coupling rated to 3500kg
8-inch swing-up jockey wheel
12V–24V LED tail lights
7-pin flat trailer plug
Recommended Uses
Livestock transport
Farm and rural property use
Agricultural transport
Small cattle transport
Sheep and goat transport
Farm supply transport
Rural equipment transport
Paddock-to-yard transport
Property maintenance use
General farm cargo transport
Technical Specifications
Model / SKU
KKT-T126U-CATTLE
3D URL
cattle_trailer
Trailer Type
Cattle Trailer
Size
12x6
Axle Type
Tandem Axle
Brake Type
Electric Braked
Body Finish
Hot Dip Galvanised
Build, Capacity & Towing
3500kgATM
1440kgTare
2060kgApprox. Payload
Axle Type
Tandem Axle
Brake Type
Electric Braked
Body Finish
Hot Dip Galvanised
Brakes
Electric Braked
Axle
Tandem Axle
Actual carrying capacity can change when
cages, ramps, toolboxes, spare wheels or
other accessories are fitted. Always confirm
the final trailer setup and your vehicle's
towing capacity before use.
Options & Included Equipment

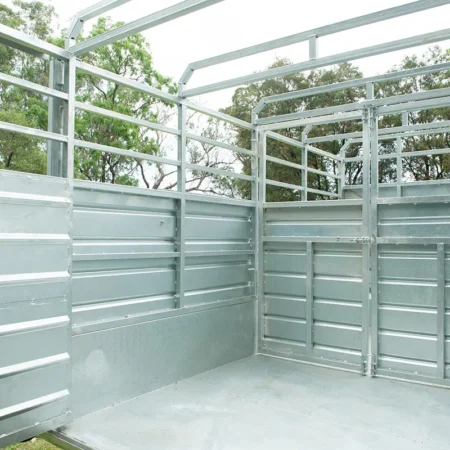

Removable Crate Cage
The removable crate cage provides containment for compatible livestock during transport.
All cage sections must be correctly fitted and secured before towing.
Aluminium Side Rails
The aluminium side rails provide practical side containment while helping reduce unnecessary trailer weight compared with heavier steel rail setups.
Rails should be checked regularly for secure fitment and condition.

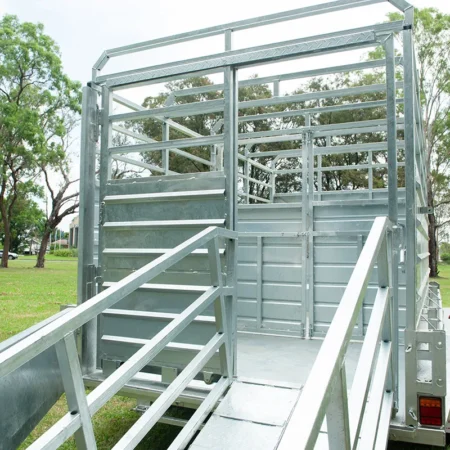

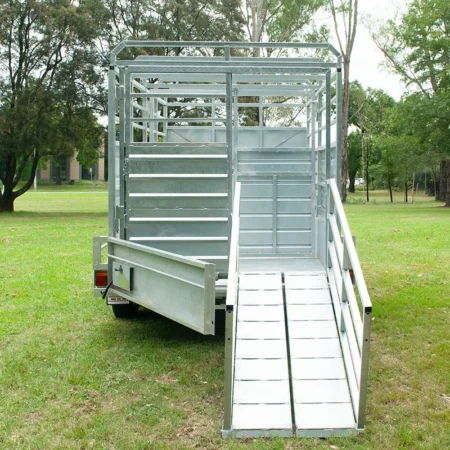

2m Multi-Functional Steel Ramps
The trailer includes 2m multi-functional steel ramps with two rails.
The ramps must be correctly positioned and secured before loading or unloading.

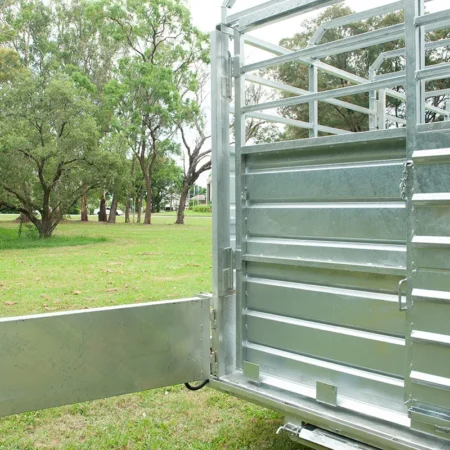

Removable Front and Rear Gates
The removable front and rear gates provide practical access for loading, unloading and cleaning.
All gates must be fully closed and secured before towing.
Checker Plate Floor
The checker plate floor provides a durable base for livestock, farm cargo and rural transport use.
The floor should be cleaned and inspected regularly, especially after carrying livestock or wet materials.
Tie-Down Rails
Tie-down rails provide practical restraint points for compatible cargo and equipment.
Only appropriately rated restraint equipment should be used.
Fully Welded Galvanised Construction
The fully welded body and chassis provide a strong structure for farm and livestock transport.
The hot-dip galvanised finish helps protect the trailer against corrosion and outdoor exposure.
Electric Brakes
The trailer is fitted with 12-inch electric drum brakes on all four wheels.
A compatible electric brake controller is required in the towing vehicle.
Rocker Roller Suspension
The 60mm, 7-leaf, 7mm rocker roller suspension is designed for tandem axle trailer applications.
It supports stable load handling and practical towing performance.
3500kg Coupling
The trailer includes a 50mm coupling rated to 3500kg.
The towing vehicle and towbar must be rated for the trailer’s actual loaded weight.
Compatible options are shown in the product
configuration section above.
What's Included
KKT-T126U-CATTLE livestock trailer
3500kg ATM configuration
Fully welded hot-dip galvanised body and chassis
Checker plate floor
3505mm × 1830mm × 1833mm internal trailer size
1900mm drawbar
120mm × 52mm drawbar structure
Removable crate cage
Aluminium side rails
Removable front gate
Removable rear gate
2m multi-functional steel ramps with two rails
Tie-down rails
Dual 50mm round solid axles
12-inch electric drum brakes on all four wheels
60mm, 7-leaf, 7mm rocker roller suspension
195/R15C tyres
50mm coupling rated to 3500kg
8-inch swing-up jockey wheel
12V–24V LED tail lights
7-pin flat trailer plug
Livestock, feed, water containers, straps, registration and items not specifically listed in the selected configuration or quotation are not included.
The trailer has a maximum 3500kg ATM.
The stated tare weight is 1440kg.
The stated load capacity is 2060kg.
Final payload should be confirmed against the certified tare weight shown on the trailer’s compliance plate.
Livestock must be suitable for the trailer size, crate setup and legal loaded weight.
Animals must be transported safely and in accordance with relevant livestock transport requirements.
Loads must be evenly distributed and properly secured before towing.
Ramps must be correctly positioned and secured before loading or unloading.
Ramps, gates, crate cage and loose items must be fully secured before towing.
A compatible electric brake controller is required in the towing vehicle.
The towing vehicle and towbar must be rated for the trailer’s actual loaded weight.
Lights, brakes, bearings, tyres, ramps, gates, cage and coupling should be checked regularly.
The trailer should be cleaned after livestock transport to maintain hygiene and reduce corrosion risk.
Images may show optional equipment or a representative configuration.
Component appearance may vary slightly between production batches.
Warranty & Frequently Asked Questions
5-Year Structural Warranty
Applies to the main structural
construction of eligible brand-new
King Kong Trailers.
1-Year Component Warranty
Selected components including leaf
springs, lights, wiring and jockey
wheels are covered for one year.
Yes. Compatible cages, canvas covers, ladder racks, toolboxes, spare wheels, ramps and other options are shown in the configuration section above. Available options vary by product.
Registration is not automatically included unless it is selected in the configuration. Registration availability, administration charges and branch-related costs depend on the selected pickup location.
Where available, you can choose the deposit option in the purchase section. The remaining balance and payment requirements will be shown or confirmed before pickup.
Choose the branch that is most convenient for you. Product pricing, stock availability, registration services and transfer charges can vary between Sydney / Penrith, Central Coast / Gosford, Newcastle, Canberra / Queanbeyan and Dubbo.
Product images and interactive 3D models are provided for reference. Final details can vary depending on stock, production updates, selected accessories and the final configuration.
Eligible brand-new King Kong trailers include a five-year structural warranty. Selected components, including leaf springs, lights, wiring and jockey wheels, are covered for one year. Terms and conditions apply.
