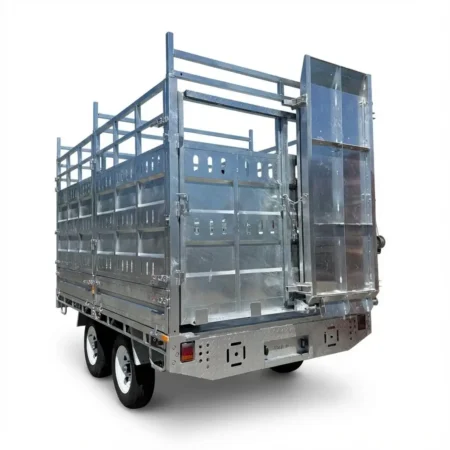

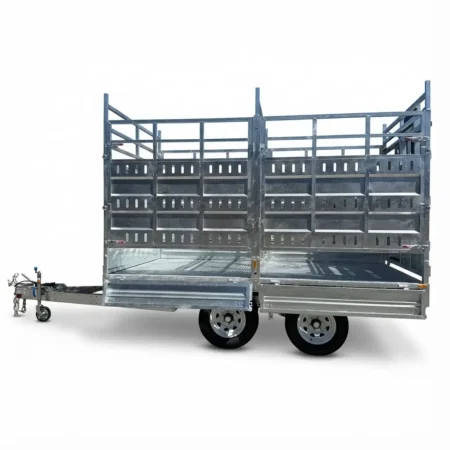

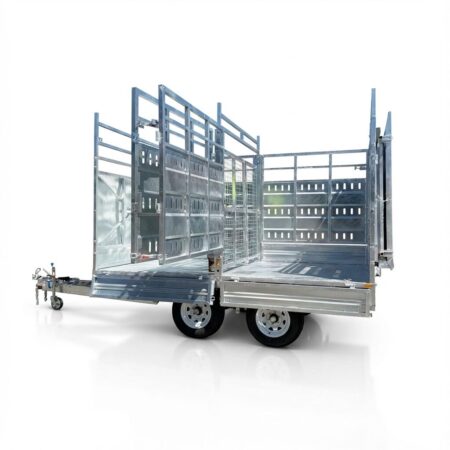

KKT-FT127-CATTLE 12×7 Livestock Trailer 3500kg ATM with Side Rails and Dropdown Aluminium Ramps
$13,300.00Original price was: $13,300.00.$12,700.00Current price is: $12,700.00.
Price shown before selected options, registration and branch transfer costs.
The KKT-FT127-CATTLE is a heavy-duty 12×7 tandem axle livestock trailer with a 3500kg ATM, 1420kg tare weight and calculated 2080kg payload. It features a fully welded hot-dip galvanised body and chassis, removable livestock crate, swing-action gates, rubber-covered checker plate flooring and 2.5m aluminium loading ramps with dual safety rails.
CONFIGURE YOUR TRAILER
Choose your pickup location, accessories and registration options below.
YOUR TRAILER CONFIGURATION
Order summary
KKT-FT127-CATTLE
TRAILER MODEL
KKT-FT127-CATTLE 12×7 Livestock Trailer 3500kg ATM with Side Rails and Dropdown Aluminium Ramps
PICKUP BRANCH
Select a pickup branch
Selected add-ons
0 items
OPTIONSELECTIONPRICE
No optional accessories selected.
Flexible finance options
Buy now and choose a repayment option that suits you.
Heavy-duty 12×7 livestock transport with removable crate, rubber flooring and aluminium loading ramps.
The KKT-FT127-CATTLE is a tandem axle livestock trailer with a 3500kg ATM, 1420kg tare weight and calculated 2080kg payload.
Its internal loading area measures approximately 3505mm × 2130mm × 1833mm, providing a large enclosed space for compatible livestock and agricultural transport tasks.
The trailer combines a fully welded hot-dip galvanised body and chassis with a removable livestock crate, removable swing-action gates, checker plate flooring and heavy-duty rubber matting.
Two 2.5m aluminium loading ramps with dual safety rails support livestock loading, while integrated side rails provide additional restraint flexibility for compatible equipment and cargo.
The tandem axle running gear includes dual 50mm solid round axles, rocker roller suspension, 12-inch electric drum brakes on all four wheels and 195/R15C commercial tyres.
Features & Recommended Uses
Key Features
3500kg ATM
1420kg tare weight
2080kg calculated payload
Approximate 12×7 trailer size
Internal dimensions: 3505mm × 2130mm × 1833mm
1900mm drawbar length
120mm × 52mm drawbar section
Fully welded body and chassis
Hot-dip galvanised construction
Checker plate floor
Heavy-duty removable livestock crate
Removable front and rear gates
Swing-action gate design
Two 2.5m aluminium loading ramps
Dual safety rails on loading ramps
Heavy-duty rubber floor matting
Integrated side tie-down rails
Dual 50mm round solid axles
60mm rocker roller suspension
7-leaf, 7mm spring setup
12-inch electric drum brakes
Braking on all four wheels
195/R15C commercial tyres
50mm coupling rated to 3500kg
8-inch swing-up jockey wheel
12V–24V LED tail lights
7-pin trailer plug
Recommended Uses
Livestock transport
Agricultural use
Farm-to-farm movement
Property and acreage use
Compatible farm equipment
Suitable general cargo
Rural maintenance applications
Technical Specifications
Model / SKU
KKT-FT127-CATTLE
Trailer Type
Cattle Trailer
Size
12x7
ATM
ATM 3500kg
Axle Type
Tandem Axle
Brake Type
Electric Braked
Body Finish
Hot Dip Galvanised
Build, Capacity & Towing
3500kgATM
1420kgTare
2080kgApprox. Payload
Axle Type
Tandem Axle
Brake Type
Electric Braked
Body Finish
Hot Dip Galvanised
Brakes
Electric Braked
Axle
Tandem Axle
Actual carrying capacity can change when
cages, ramps, toolboxes, spare wheels or
other accessories are fitted. Always confirm
the final trailer setup and your vehicle's
towing capacity before use.
Options & Included Equipment
Removable Livestock Crate
The heavy-duty crate can be removed when the trailer is required for compatible non-livestock loads.
Removal and refitting must be completed safely, and the crate must be correctly secured before transport.
Swing-Action Gates
The removable front and rear gates use a swing-action design to support easier livestock access and loading control.
All gates must be fully closed and secured before towing.

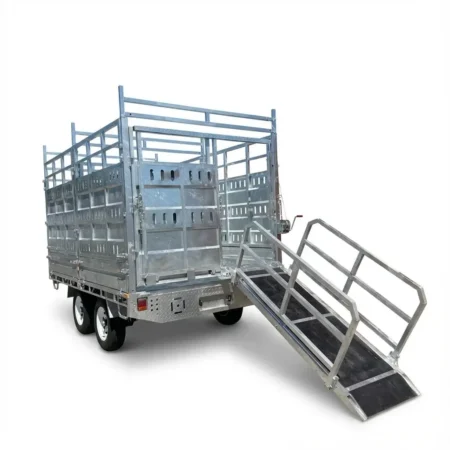

Aluminium Loading Ramps
Two 2.5m lightweight aluminium loading ramps are included.
The dual safety rails provide a more defined loading path, but the ramps must be correctly positioned on firm, level ground before use.
Rubber Floor Matting
Heavy-duty rubber matting provides additional grip, comfort and noise reduction over the checker plate floor.
The matting should be cleaned and inspected regularly for contamination, movement or wear.
Integrated Side Tie-Down Rails
Integrated side rails provide restraint locations for compatible cargo and livestock equipment.
All restraints must be appropriately rated and suitable for the intended use.
Compatible options are shown in the product
configuration section above.
What's Included
KKT-FT127-CATTLE livestock trailer
Fully welded hot-dip galvanised body and chassis
Checker plate floor
Heavy-duty removable livestock crate
Removable front gate
Removable rear gate
Swing-action gate hardware
Two 2.5m aluminium loading ramps
Dual ramp safety rails
Heavy-duty rubber floor matting
Integrated side tie-down rails
Tandem axle running gear
Dual 50mm solid round axles
Rocker roller suspension
12-inch electric drum brakes on all four wheels
195/R15C commercial tyres
50mm coupling rated to 3500kg
8-inch swing-up jockey wheel
12V–24V LED lighting system
7-pin trailer plug
Livestock, internal partitions, restraint equipment and items not specifically listed in the selected configuration or quotation are not included.
The trailer has a maximum 3500kg ATM.
The stated tare weight is 1420kg.
The calculated payload is 2080kg.
Final payload should be confirmed against the certified tare weight shown on the compliance plate.
Livestock numbers and loading density must suit the trailer dimensions, payload and applicable animal-welfare requirements.
Animals must be loaded and unloaded on stable ground using correctly positioned ramps.
Gates, crate panels and ramps must be fully secured before towing.
Rubber matting should be cleaned and inspected regularly.
Livestock and cargo must be appropriately contained or restrained.
A compatible electric brake controller is required in the towing vehicle.
The towing vehicle and towbar must be rated for the trailer’s actual loaded weight.
Images may show optional equipment or a representative configuration.
Component appearance may vary slightly between production batches.
Warranty & Frequently Asked Questions
5-Year Structural Warranty
Applies to the main structural
construction of eligible brand-new
King Kong Trailers.
1-Year Component Warranty
Selected components including leaf
springs, lights, wiring and jockey
wheels are covered for one year.

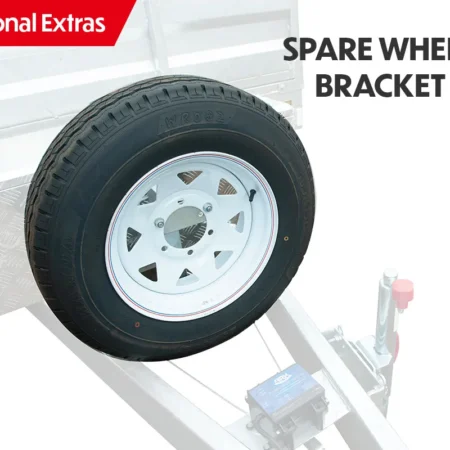

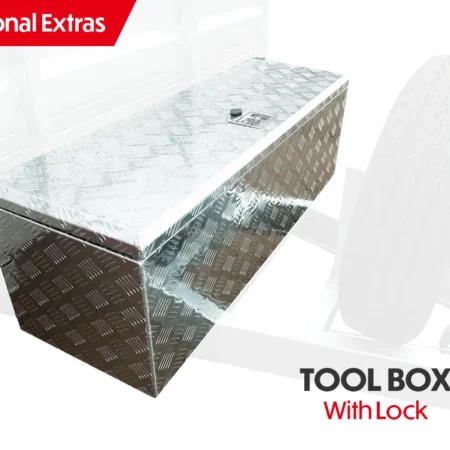

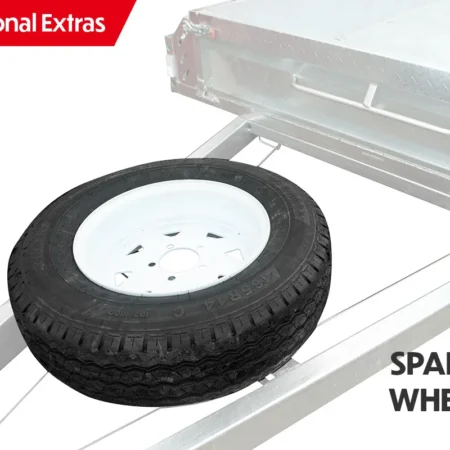

Yes. Compatible cages, canvas covers, ladder racks, toolboxes, spare wheels, ramps and other options are shown in the configuration section above. Available options vary by product.
Registration is not automatically included unless it is selected in the configuration. Registration availability, administration charges and branch-related costs depend on the selected pickup location.
Where available, you can choose the deposit option in the purchase section. The remaining balance and payment requirements will be shown or confirmed before pickup.
Choose the branch that is most convenient for you. Product pricing, stock availability, registration services and transfer charges can vary between Sydney / Penrith, Central Coast / Gosford, Newcastle, Canberra / Queanbeyan and Dubbo.
Product images and interactive 3D models are provided for reference. Final details can vary depending on stock, production updates, selected accessories and the final configuration.
Eligible brand-new King Kong trailers include a five-year structural warranty. Selected components, including leaf springs, lights, wiring and jockey wheels, are covered for one year. Terms and conditions apply.
Need help choosing?
Confirm the right setup before you order.
Our team can help confirm the correct product,
ATM rating, accessories, registration option,
stock and pickup location for your requirements.
Compare key specifications across closely
related models. The current product is
highlighted so you can quickly review size,
capacity and running-gear differences.
Swipe or scroll horizontally to compare all models.
Compare
4 Models
Current Model
KKT-FT127-CATTLE 12×7 Livestock Trailer 3500kg ATM with Side Rails and Dropdown Aluminium Ramps
SKU:
KKT-FT127-CATTLE
$13,300.00Original price was: $13,300.00.$12,700.00Current price is: $12,700.00.
Current Model
Capacity Upgrade

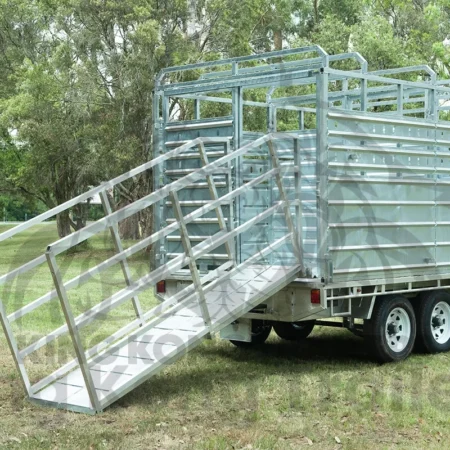

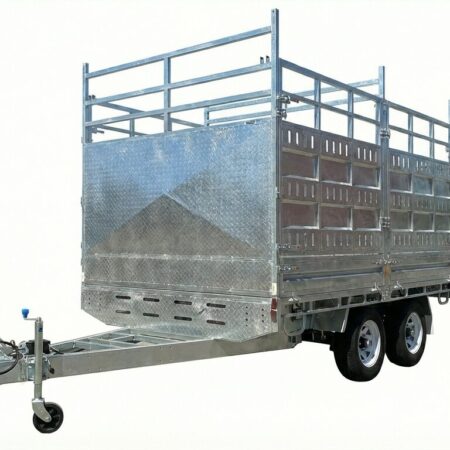

KKT-FT127-CATTLE - 12×7 Livestock Trailer 4500kg ATM with Side Rails and Drop-Down Aluminium Ramps
SKU:
KKT-FT127RP-CATTLE-4500
$14,800.00Original price was: $14,800.00.$14,200.00Current price is: $14,200.00.
A closer look at the construction details commonly found
across the King Kong Trailers range. Select a feature to
explore the materials, structure and practical finishing
behind the build.
01
Selected build detail
Universal Trailer Details
01
/
06
Compare Your Options
Explore the range around this model.
Three relevant alternatives selected from the
current product range, helping customers compare
size, ATM and axle configuration before deciding.
Currently Viewing
KKT-FT127-CATTLE 12×7 Livestock Trailer 3500kg ATM with Side Rails and Dropdown Aluminium Ramps ·
12×7 · 3500kg ATM · Tandem Axle
Smaller & Lighter

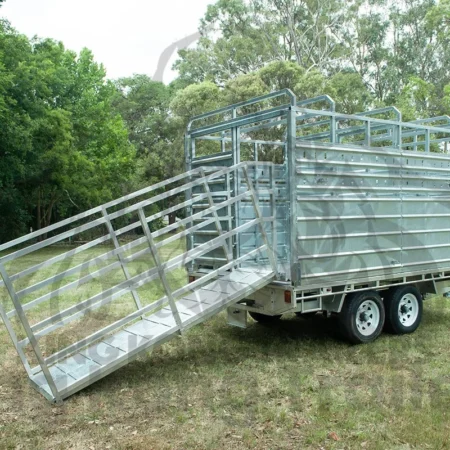

KKT-T126U-CATTLE - 12×6 Livestock Trailer 3500kg ATM with Aluminium Side Rails and Steel Ramps
