KKT-FT127RP-CATTLE - 12×7 Livestock Trailer 3500kg ATM with Side Rails and Ramps

01 / 10

Availability: 7 in stock

SKU KKT-FT127RP-CATTLE Category Cattle Trailers

KKT-FT127RP-CATTLE – 12×7 Livestock Trailer 3500kg ATM with Side Rails and Ramps

Original price was: $12,600.00.Current price is: $11,700.00.

Price shown before selected options, registration and branch transfer costs.

CONFIGURE YOUR TRAILER

Choose your pickup location, accessories and registration options below.

Availability: 7 in stock

Choose your preferred pickup location(branches):

Sydney

Gosford (+$150.00)

Newcastle (+$350.00)

Queanbeyan (+$350.00)

Dubbo (+$1,100.00)

Livestock Trailer Jacks

195R15 Spare Wheel

Spare Wheel Bracket

On-Site Administration Fee

Blueslip or Registration

Product price:	$11,700.00
Total options:
Order total:

Choose your payment option

Pay Deposit
Pay in Full

Pay a 10% deposit per item

Request a Quote

YOUR TRAILER CONFIGURATION

Order summary

KKT-FT127RP-CATTLE

TRAILER MODEL KKT-FT127RP-CATTLE - 12×7 Livestock Trailer 3500kg ATM with Side Rails and Ramps

PICKUP BRANCH Select a pickup branch

Selected add-ons 0 items

OPTION SELECTION PRICE

No optional accessories selected.

Flexible finance options Buy now and choose a repayment option that suits you.

Apply with FASTR Repayments Calculator

PRODUCT INFORMATION

KKT-FT127RP-CATTLE - 12×7 Livestock Trailer 3500kg ATM with Side Rails and Ramps

Compare the product overview, features, specifications, construction, towing setup, available options, warranty and common questions.

3500kg ATM Rating

TBC Approx. Payload

TBC Tare Weight

3505mm × 2130mm × 1833mm internal area Trailer Size

5 Years Structural Warranty

Product Overview

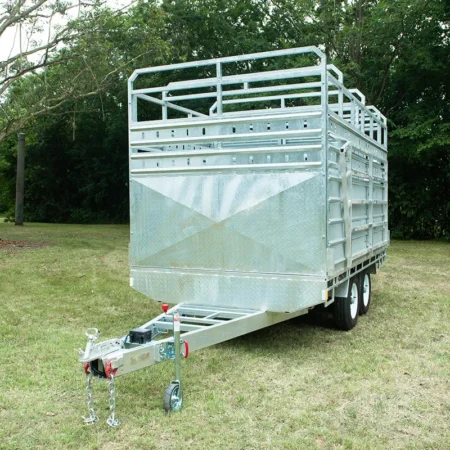

Heavy-duty 12×7 galvanised livestock trailer with removable crate cage, side rails, 2.5m ramps and 3500kg ATM.

The KKT-FT127RP-CATTLE is a heavy-duty livestock trailer designed for compatible livestock, rural and farm transport applications.

It has a 3500kg ATM and an internal area of approximately 3505mm × 2130mm × 1833mm.

The trailer combines a fully welded hot-dip galvanised body and chassis with checker plate flooring, removable crate cage, side rails, removable front and rear gates, 2.5m multi-functional ramps with two rails and tie-down rails.

The tandem axle running gear includes dual 50mm round solid axles, 12-inch electric drum brakes on all four wheels, 60mm 7-leaf rocker roller suspension, 195/R15C tyres, 50mm 3500kg coupling, LED lighting and a 7-pin plug compatible with flat, small round and large round connections.

Technical Specifications

Model / SKU	KKT-FT127RP-CATTLE
3D URL	cattle_trailer
Trailer Type	Cattle Trailer
Size	12x7
ATM	ATM 3500kg
Axle Type	Tandem Axle
Brake Type	Electric Braked
Body Finish	Hot Dip Galvanised

Build, Capacity & Towing

3500kg ATM

TBC Tare

TBC Approx. Payload

Axle Type

Tandem Axle

Brake Type

Electric Braked

Body Finish

Hot Dip Galvanised

Brakes	Electric Braked
Axle	Tandem Axle

Actual carrying capacity can change when cages, ramps, toolboxes, spare wheels or other accessories are fitted. Always confirm the final trailer setup and your vehicle's towing capacity before use.

Options & Included Equipment

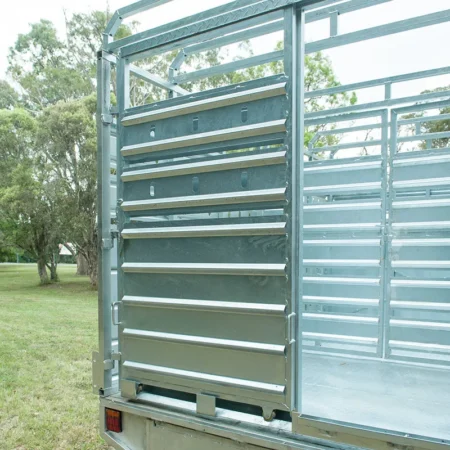

Removable Crate Cage

The removable crate cage provides practical containment for compatible livestock and bulky rural cargo.

The cage must be correctly fitted and secured before towing.

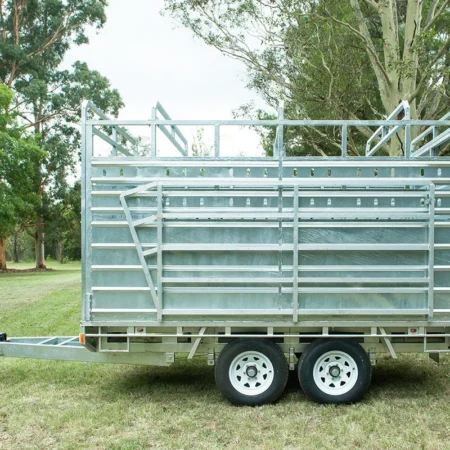

Side Rails

The side rails provide added containment for compatible livestock and rural cargo.

Rails should be checked regularly and secured before transport.

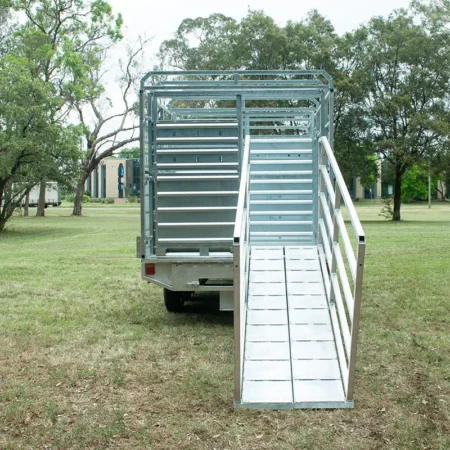

2.5m Multi-Functional Ramps

The 2.5m multi-functional ramps provide loading access for compatible livestock, equipment and cargo.

The ramps must be correctly positioned and secured before loading or unloading.

Removable Front and Rear Gates

The removable front and rear gates improve access for loading, unloading and cleaning.

All gates must be fully closed and secured before towing.

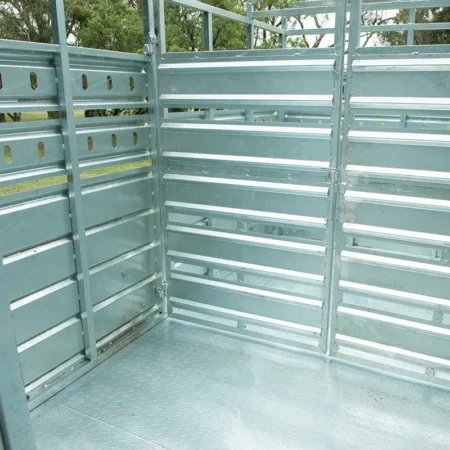

Checker Plate Floor

The checker plate floor provides a durable loading surface for compatible livestock and farm cargo.

The floor should be cleaned and inspected regularly, especially after livestock or wet material use.

Tie-Down Rails

Tie-down rails provide practical restraint points for compatible cargo and equipment.

Only appropriately rated restraint equipment should be used.

Electric Brakes

The trailer is fitted with 12-inch electric drum brakes on all four wheels.

A compatible electric brake controller is required in the towing vehicle.

Rocker Roller Suspension

The 60mm, 7-leaf, 7mm rocker roller suspension is designed for tandem axle trailer applications.

It supports stable load handling and practical towing performance.

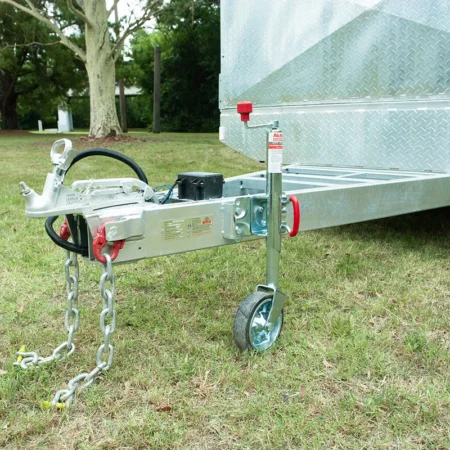

3500kg Coupling

The trailer includes a 50mm coupling rated to 3500kg.

The towing vehicle and towbar must be rated for the trailer’s actual loaded weight.

What's Included

KKT-FT127RP-CATTLE livestock trailer
3500kg ATM configuration
Fully welded hot-dip galvanised body and chassis
Checker plate floor
Removable crate cage
Side rails
Removable front gate
Removable rear gate
2.5m multi-functional ramps
Two-rail ramp design
Tie-down rails
1900mm drawbar
120mm × 52mm drawbar structure
Dual 50mm round solid axles
12-inch electric drum brakes on all four wheels
60mm, 7-leaf, 7mm rocker roller suspension
195/R15C tyres
50mm coupling rated to 3500kg
8-inch swing-up jockey wheel
12V–24V LED tail lights
7-pin trailer plug
Flat, small round and large round plug compatibility
Livestock, feed, cargo, straps, registration and items not specifically listed in the selected configuration or quotation are not included.

The trailer has a maximum 3500kg ATM.
The tare weight for this model has not been provided.
The load capacity for this model has not been provided.
Final payload should be confirmed against the certified tare weight shown on the compliance plate.
Livestock must be suitable for the trailer size, loading setup and legal loaded weight.
Loads must be evenly distributed and properly secured before towing.
Livestock transport must comply with applicable animal welfare and road safety requirements.
Ramps must be correctly positioned and secured before loading or unloading.
Crate cage, side rails, front gate, rear gate, ramps and loose items must be fully secured before towing.
A compatible electric brake controller is required in the towing vehicle.
The towing vehicle and towbar must be rated for the trailer’s actual loaded weight.
Lights, brakes, bearings, tyres, ramps and gates should be checked regularly.
Images may show optional equipment or a representative configuration.
Component appearance may vary slightly between production batches.

Warranty & Frequently Asked Questions

5-Year Structural Warranty Applies to the main structural construction of eligible brand-new King Kong Trailers.

1-Year Component Warranty Selected components including leaf springs, lights, wiring and jockey wheels are covered for one year.

Yes. Compatible cages, canvas covers, ladder racks, toolboxes, spare wheels, ramps and other options are shown in the configuration section above. Available options vary by product.

Registration is not automatically included unless it is selected in the configuration. Registration availability, administration charges and branch-related costs depend on the selected pickup location.

Where available, you can choose the deposit option in the purchase section. The remaining balance and payment requirements will be shown or confirmed before pickup.

Choose the branch that is most convenient for you. Product pricing, stock availability, registration services and transfer charges can vary between Sydney / Penrith, Central Coast / Gosford, Newcastle, Canberra / Queanbeyan and Dubbo.

Product images and interactive 3D models are provided for reference. Final details can vary depending on stock, production updates, selected accessories and the final configuration.

Eligible brand-new King Kong trailers include a five-year structural warranty. Selected components, including leaf springs, lights, wiring and jockey wheels, are covered for one year. Terms and conditions apply.

Need help choosing?

Confirm the right setup before you order.

Our team can help confirm the correct product, ATM rating, accessories, registration option, stock and pickup location for your requirements.

Review Configuration Call 1300 311 333

Model Comparison

Compare Similar Models

Compare key specifications across closely related models. The current product is highlighted so you can quickly review size, capacity and running-gear differences.

Swipe or scroll horizontally to compare all models.

Capacity Upgrade

KKT-FT127-CATTLE - 12×7 Livestock Trailer 4500kg ATM with Side Rails and Drop-Down Aluminium Ramps

SKU: KKT-FT127RP-CATTLE-4500

View This Model

Trailer Size

3505mm × 2130mm × 1833mm internal area

3505mm × 1830mm × 1833mm internal trailer size

3505mm × 2130mm × 1833mm internal area

ATM

3500kg

4500kg

Payload

TBC

2060kg

2080kg

3080kg

Tare Weight

TBC

1440kg

1420kg

Axle

Tandem Axle

Brakes

Electric Braked

Best For

Livestock transport, Farm animal transport

Livestock transport, Farm and rural property use

Livestock transport, Agricultural use

Build Details

Built better where it counts.

A closer look at the construction details commonly found across the King Kong Trailers range. Select a feature to explore the materials, structure and practical finishing behind the build.

Selected build detail

Universal Trailer Details

01 / 06

Purchase Experience

From choosing the right setup to collecting with confidence.

A trailer purchase should feel clear from the beginning. Our role is to help remove uncertainty around product choice, final setup and collection, so you know what you are ordering before you arrive.

Three stages. One clear process.

This section focuses only on the buying and handover experience, without repeating specifications, warranty, finance or branch information shown elsewhere.

Choose with clarity

Review the selected model, intended use and compatible equipment before placing an order or requesting a quote.

→

Confirm before collection

Our team can verify the final setup and collection requirements before you travel, reducing last-minute changes and uncertainty.

→

Leave ready to tow

Receive a practical handover and clear guidance on the trailer setup, followed by ongoing support when questions arise after collection.

→

Customer Reviews

Trusted by customers who rely on their trailers.

Fifteen selected five-star customer reviews and ratings. On desktop, the carousel moves three reviews at a time so visitors can browse more feedback with fewer transitions.

Auto playing · 3 reviews per slide

“

Shawn and the team were great to deal with. This is the second trailer I’ve purchased from them. Needless to say, good quality.

Keegan Byrnes Google Review

“

Great service and availability. Shawn helped make sure we had everything we needed with the trailer. Easy to communicate with and super friendly.

PHYLLi Designs Google Review

“

Exceptionally quick service and a very well-manufactured trailer. I bought an 8×5 trailer with a ramp, high sides, spare wheel and toolbox and got good value for money.

Connect3 Pabbly Connect Google Review

“

Highly recommended to everyone. Good price with fantastic service.

Dave Lee Google Review

“

Very helpful service and awesome build quality. The trailers are heavy duty.

William Thomson Google Review

“

Great service. Will definitely be using these guys again in the future.

Alex Fuller Google Review

“

The product is great and the team are very helpful.

Kevin Fraser Google Review

“

Excellent service and great products. Highly recommended.

Rong Li Google Review

“

Thank you to the team for their excellent service.

Giorgios Siailis Google Review

“

Excellent business to deal with. Fred and Shawn were very helpful.

Corey Dennis Google Review

“

Easy to deal with.

Dean Rixon Google Review

“

Very good service. Thank you.

Geoff Nagle Google Review

“

Great service.

Brodie Anderson Google Review

★

Five-star rating shared on Google.

Luke Newcombe 5-Star Google Rating

★

Five-star rating shared on Google.

Inma Vassar 5-Star Google Rating

KKT-FT127RP-CATTLE – 12×7 Livestock Trailer 3500kg ATM with Side Rails and Ramps

CONFIGURE YOUR TRAILER

Choose your pickup location, accessories and registration options below.

Choose your preferred pickup location(branches):

Livestock Trailer Jacks

195R15 Spare Wheel

Spare Wheel Bracket

On-Site Administration Fee

Blueslip or Registration

KKT-FT127RP-CATTLE - 12×7 Livestock Trailer 3500kg ATM with Side Rails and Ramps

Product Overview

Features & Recommended Uses

Key Features

Recommended Uses

Technical Specifications

Build, Capacity & Towing

Axle Type

Brake Type

Body Finish

Options & Included Equipment

Removable Crate Cage

The removable crate cage provides practical containment for compatible livestock and bulky rural cargo.

The cage must be correctly fitted and secured before towing.

Side Rails

The side rails provide added containment for compatible livestock and rural cargo.

Rails should be checked regularly and secured before transport.

2.5m Multi-Functional Ramps

The 2.5m multi-functional ramps provide loading access for compatible livestock, equipment and cargo.

The ramps must be correctly positioned and secured before loading or unloading.

Removable Front and Rear Gates

The removable front and rear gates improve access for loading, unloading and cleaning.

All gates must be fully closed and secured before towing.

Checker Plate Floor

The checker plate floor provides a durable loading surface for compatible livestock and farm cargo.

The floor should be cleaned and inspected regularly, especially after livestock or wet material use.

Tie-Down Rails

Tie-down rails provide practical restraint points for compatible cargo and equipment.

Only appropriately rated restraint equipment should be used.

Electric Brakes

The trailer is fitted with 12-inch electric drum brakes on all four wheels.

A compatible electric brake controller is required in the towing vehicle.

Rocker Roller Suspension

The 60mm, 7-leaf, 7mm rocker roller suspension is designed for tandem axle trailer applications.

It supports stable load handling and practical towing performance.

3500kg Coupling

The trailer includes a 50mm coupling rated to 3500kg.

The towing vehicle and towbar must be rated for the trailer’s actual loaded weight.

What's Included

Warranty & Frequently Asked Questions

Confirm the right setup before you order.

Compare Similar Models

KKT-FT127RP-CATTLE - 12×7 Livestock Trailer 3500kg ATM with Side Rails and Ramps

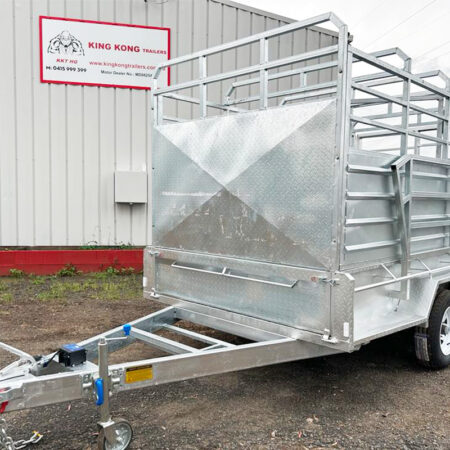

KKT-T126U-CATTLE - 12×6 Livestock Trailer 3500kg ATM with Aluminium Side Rails and Steel Ramps

KKT-FT127-CATTLE 12×7 Livestock Trailer 3500kg ATM with Side Rails and Dropdown Aluminium Ramps

KKT-FT127-CATTLE - 12×7 Livestock Trailer 4500kg ATM with Side Rails and Drop-Down Aluminium Ramps

Built better where it counts.

Explore the range around this model.

KKT-T126U-CATTLE - 12×6 Livestock Trailer 3500kg ATM with Aluminium Side Rails and Steel Ramps

KKT-FT127-CATTLE - 12×7 Livestock Trailer 4500kg ATM with Side Rails and Drop-Down Aluminium Ramps

KKT-FT127-CATTLE 12×7 Livestock Trailer 3500kg ATM with Side Rails and Dropdown Aluminium Ramps

From choosing the right setup to collecting with confidence.

Choose with clarity

Confirm before collection

Leave ready to tow

Trusted by customers who rely on their trailers.

By Categories
