KKT-TP105U4500 - 10×5 Tandem Axle Hydraulic Tipper Galvanised Box Trailer 4500kg ATM

01 / 17

SKU KKT-TP105U4200 Category Hydraulic Tipper Trailers

KKT-TP105U4500 – 10×5 Tandem Axle Hydraulic Tipper Galvanised Box Trailer 4500kg ATM

$10,000.00

Price shown before selected options, registration and branch transfer costs.

CONFIGURE YOUR TRAILER

Choose your pickup location, accessories and registration options below.

Choose your preferred pickup location(branches):

Sydney

Gosford (+$150.00)

Newcastle (+$350.00)

Queanbeyan (+$350.00)

Dubbo (+$1,400.00)

Mesh Cage

Canvas Cover

Ladder Racks

195R15 Spare Wheel

Spare Wheel Bracket

Side Wall Tie Down Points

Trapezoid Tool Box

Heavy Duty Aluminium Loading Ramps

Aluminium Loading Ramps Holder

Solar Panel

Blue Slip

Product price:	$10,000.00
Total options:
Order total:

Pay Deposit (10%)
Pay in Full

Pay a 10% deposit per item

Request a Quote

YOUR TRAILER CONFIGURATION

Order summary

KKT-TP105U4200

TRAILER MODEL KKT-TP105U4500 - 10×5 Tandem Axle Hydraulic Tipper Galvanised Box Trailer 4500kg ATM

PICKUP BRANCH Select a pickup branch

Selected add-ons 0 items

OPTION SELECTION PRICE

No optional accessories selected.

Flexible finance options Buy now and choose a repayment option that suits you.

Apply with FASTR Repayments Calculator

PRODUCT INFORMATION

KKT-TP105U4500 - 10×5 Tandem Axle Hydraulic Tipper Galvanised Box Trailer 4500kg ATM

Compare the product overview, features, specifications, construction, towing setup, available options, warranty and common questions.

4500kg ATM Rating

3480kg Approx. Payload

1020kg Tare Weight

3040mm × 1530mm × 425mm internal area Trailer Size

5 Years Structural Warranty

Product Overview

Heavy-duty 10×5 hydraulic tipper trailer with 4500kg ATM, aluminium toolbox, 35 AMP battery system and hot-dip galvanised construction.

The KKT-TP105U4500 is a tandem axle hydraulic tipper box trailer with a 4500kg ATM, 1020kg tare weight and calculated 3480kg payload.

Its internal loading area measures approximately 3040mm × 1530mm × 425mm, providing a practical 10×5 body size for trade, landscaping, farm and worksite transport applications.

The trailer combines a fully welded hot-dip galvanised body and chassis with checker plate flooring, removable front and rear drop-down gates, tie-down rails and an aluminium toolbox.

A 4.5T, 1.2m hydraulic cylinder with hydraulic power pack supports tipping operation, while the 35 AMP battery system supports practical hydraulic use.

The tandem axle running gear includes dual 50mm solid round axles, rocker roller suspension, 12-inch electric drum brakes on all four wheels, 15-inch wheels and 225R15C tyres.

Features & Recommended Uses

Key Features

4500kg ATM
1020kg tare weight
3480kg calculated payload
Approximate 10×5 trailer size
Internal dimensions: 3040mm × 1530mm × 425mm
1800mm drawbar length
150mm × 50mm drawbar section
Fully welded body and chassis
Hot-dip galvanised construction
Checker plate floor
Hydraulic tipping system
4.5T, 1.2m hydraulic cylinder
Hydraulic power pack
35 AMP battery system
Australia-wide battery warranty
Removable front drop-down gate
Removable rear drop-down gate
Tie-down rails
Aluminium toolbox included
User manual included
Dual 50mm round solid axles
60mm rocker roller suspension
7-leaf, 7mm spring setup
12-inch electric drum brakes
Braking on all four wheels
15-inch wheels
225R15C tyres
70mm coupling rated to 4500kg

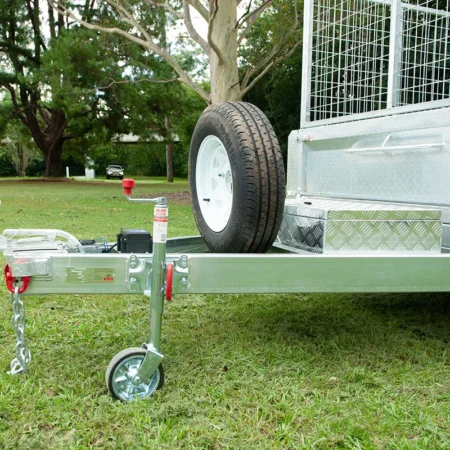

8-inch swing-up jockey wheel
12V–24V LED tail lights
7-pin flat trailer plug

Recommended Uses

Landscaping work
Construction use
Farm and acreage use
Soil, mulch and gravel transport
Green waste transport
Property maintenance
Trade equipment transport
General cargo transport
Worksite material transport
Commercial transport use

Technical Specifications

Model / SKU	KKT-TP105U4200
3D URL	hydraulic_tipper
Trailer Type	Hydraulic Tipper Trailer
Size	10x5
ATM	ATM 4500kg
Axle Type	Tandem Axle
Brake Type	Electric Braked
Body Finish	Hot Dip Galvanised
Tipper Type	Hydraulic Tipper

Build, Capacity & Towing

4500kg ATM

1020kg Tare

3480kg Approx. Payload

Axle Type

Tandem Axle

Brake Type

Electric Braked

Body Finish

Hot Dip Galvanised

Brakes	Electric Braked
Axle	Tandem Axle

Actual carrying capacity can change when cages, ramps, toolboxes, spare wheels or other accessories are fitted. Always confirm the final trailer setup and your vehicle's towing capacity before use.

Options & Included Equipment

Hydraulic Tipping System

The hydraulic tipping system includes a 4.5T, 1.2m hydraulic cylinder and hydraulic power pack.

It is designed to assist with unloading suitable bulk materials such as soil, mulch, gravel and green waste.

The trailer must be positioned on firm, stable and level ground before tipping.

35 AMP Battery System

The 35 AMP battery system supports the hydraulic tipping system.

The battery system includes Australia-wide warranty support and should be maintained according to the supplied user manual.

Removable Drop-Down Gates

The removable front and rear drop-down gates provide improved access to the trailer body.

All gates must be correctly closed and secured before transport.

Checker Plate Floor

The checker plate floor provides a durable loading base for materials, equipment and general cargo.

Regular cleaning and inspection are recommended, especially after carrying soil, gravel, green waste or wet materials.

Tie-Down Rails

Tie-down rails provide practical restraint points for compatible cargo and equipment.

Only appropriately rated restraint equipment should be used.

Aluminium Toolbox

An aluminium toolbox is included for storing tools, trailer accessories or small equipment.

The toolbox should be closed and secured before towing.

Electric Brakes

The trailer is fitted with 12-inch electric drum brakes on all four wheels.

A compatible electric brake controller is required in the towing vehicle.

70mm Coupling

The trailer is fitted with a 70mm coupling rated to 4500kg.

The towing vehicle and towbar must be suitable for the trailer’s actual loaded weight.

What's Included

KKT-TP105U4500 hydraulic tipper trailer
Fully welded hot-dip galvanised body and chassis
Checker plate floor
Removable front drop-down gate
Removable rear drop-down gate
Tie-down rails
4.5T, 1.2m hydraulic cylinder
Hydraulic power pack
35 AMP battery system
Aluminium toolbox
User manual
Tandem axle running gear
Dual 50mm solid round axles
Rocker roller suspension
12-inch electric drum brakes on all four wheels
15-inch wheels
225R15C tyres
70mm coupling rated to 4500kg
8-inch swing-up jockey wheel
12V–24V LED lighting system
7-pin flat trailer plug
Cargo, machinery, straps, registration and items not specifically listed in the selected configuration or quotation are not included.

The trailer has a maximum 4500kg ATM.
The stated tare weight is 1020kg.
The calculated payload is 3480kg.
Final payload should be confirmed against the certified tare weight shown on the compliance plate.
Loads must be evenly distributed and properly secured before towing.
The hydraulic tipping system must only be operated on firm, stable and level ground.
Do not tip the trailer with an uneven, unsecured or overloaded load.
Front gate, rear gate, toolbox and loose items must be fully secured before towing.
A compatible electric brake controller is required in the towing vehicle.
The towing vehicle and towbar must be rated for the trailer’s actual loaded weight.
Images may show optional equipment or a representative configuration.
Component appearance may vary slightly between production batches.

Warranty & Frequently Asked Questions

5-Year Structural Warranty Applies to the main structural construction of eligible brand-new King Kong Trailers.

1-Year Component Warranty Selected components including leaf springs, lights, wiring and jockey wheels are covered for one year.

Yes. Compatible cages, canvas covers, ladder racks, toolboxes, spare wheels, ramps and other options are shown in the configuration section above. Available options vary by product.

Registration is not automatically included unless it is selected in the configuration. Registration availability, administration charges and branch-related costs depend on the selected pickup location.

Where available, you can choose the deposit option in the purchase section. The remaining balance and payment requirements will be shown or confirmed before pickup.

Choose the branch that is most convenient for you. Product pricing, stock availability, registration services and transfer charges can vary between Sydney / Penrith, Central Coast / Gosford, Newcastle, Canberra / Queanbeyan and Dubbo.

Product images and interactive 3D models are provided for reference. Final details can vary depending on stock, production updates, selected accessories and the final configuration.

Eligible brand-new King Kong trailers include a five-year structural warranty. Selected components, including leaf springs, lights, wiring and jockey wheels, are covered for one year. Terms and conditions apply.
