The KKT-TP106U4500 is a heavy-duty 10×6 tandem axle hydraulic tipper box trailer with a 4500kg ATM, 1180kg tare weight and calculated 3320kg payload. It features a fully welded hot-dip galvanised body and chassis, checker plate floor, removable front and rear drop-down gates, tie-down rails, aluminium toolbox, 4.5T hydraulic tipping system, 35 AMP battery system, electric brakes on all four wheels, 70mm coupling and 225R15C tyres.
CONFIGURE YOUR TRAILER
Choose your pickup location, accessories and registration options below.
YOUR TRAILER CONFIGURATION
Order summary
KKT-TP106U4200
TRAILER MODEL
KKT-TP106U4500- 10×6 Tandem Axle Hydraulic Tipper Galvanised Box Trailer 4500kg ATM
PICKUP BRANCH
Select a pickup branch
Selected add-ons
0 items
OPTIONSELECTIONPRICE
No optional accessories selected.
Flexible finance options
Buy now and choose a repayment option that suits you.
Compare the product overview, features,
specifications, construction, towing setup,
available options, warranty and common questions.
4500kgATM Rating
3320kgApprox. Payload
1180kgTare Weight
3040mm × 1830mm × 425mm internal areaTrailer Size
5 YearsStructural Warranty
Product Overview
Heavy-duty 10×6 hydraulic tipper trailer with 4500kg ATM, aluminium toolbox, 35 AMP battery system and hot-dip galvanised construction.
The KKT-TP106U4500 is a tandem axle hydraulic tipper box trailer with a 4500kg ATM, 1180kg tare weight and calculated 3320kg payload.
Its internal loading area measures approximately 3040mm × 1830mm × 425mm, providing a practical 10×6 body size for trade, landscaping, farm and worksite transport applications.
The trailer combines a fully welded hot-dip galvanised body and chassis with checker plate flooring, removable front and rear drop-down gates, tie-down rails and an aluminium toolbox.
A 4.5T, 1.2m hydraulic cylinder with hydraulic power pack supports tipping operation, while the 35 AMP battery system supports practical hydraulic use.
The tandem axle running gear includes dual 50mm solid round axles, rocker roller suspension, 12-inch electric drum brakes on all four wheels, 15-inch wheels and 225R15C tyres.
Features & Recommended Uses
Key Features
4500kg ATM
1180kg tare weight
3320kg calculated payload
Approximate 10×6 trailer size
Internal dimensions: 3040mm × 1830mm × 425mm
1800mm drawbar length
150mm × 50mm drawbar section
Fully welded body and chassis
Hot-dip galvanised construction
Checker plate floor
Hydraulic tipping system
4.5T, 1.2m hydraulic cylinder
Hydraulic power pack
35 AMP battery system
Australia-wide battery warranty
Removable front drop-down gate
Removable rear drop-down gate
Tie-down rails
Aluminium toolbox included
User manual included
Dual 50mm round solid axles
60mm rocker roller suspension
7-leaf, 7mm spring setup
12-inch electric drum brakes
Braking on all four wheels
15-inch wheels
225R15C tyres
70mm coupling rated to 4500kg
8-inch swing-up jockey wheel
12V–24V LED tail lights
7-pin flat trailer plug
Recommended Uses
Landscaping work
Construction use
Farm and acreage use
Soil, mulch and gravel transport
Green waste transport
Property maintenance
Trade equipment transport
General cargo transport
Worksite material transport
Commercial transport use
Technical Specifications
Model / SKU
KKT-TP106U4200
3D URL
hydraulic_tipper
Trailer Type
Hydraulic Tipper Trailer
Size
10x6
ATM
ATM 4500kg
Axle Type
Tandem Axle
Brake Type
Electric Braked
Body Finish
Hot Dip Galvanised
Tipper Type
Hydraulic Tipper
Build, Capacity & Towing
4500kgATM
1180kgTare
3320kgApprox. Payload
Axle Type
Tandem Axle
Brake Type
Electric Braked
Body Finish
Hot Dip Galvanised
Brakes
Electric Braked
Axle
Tandem Axle
Actual carrying capacity can change when
cages, ramps, toolboxes, spare wheels or
other accessories are fitted. Always confirm
the final trailer setup and your vehicle's
towing capacity before use.
Options & Included Equipment

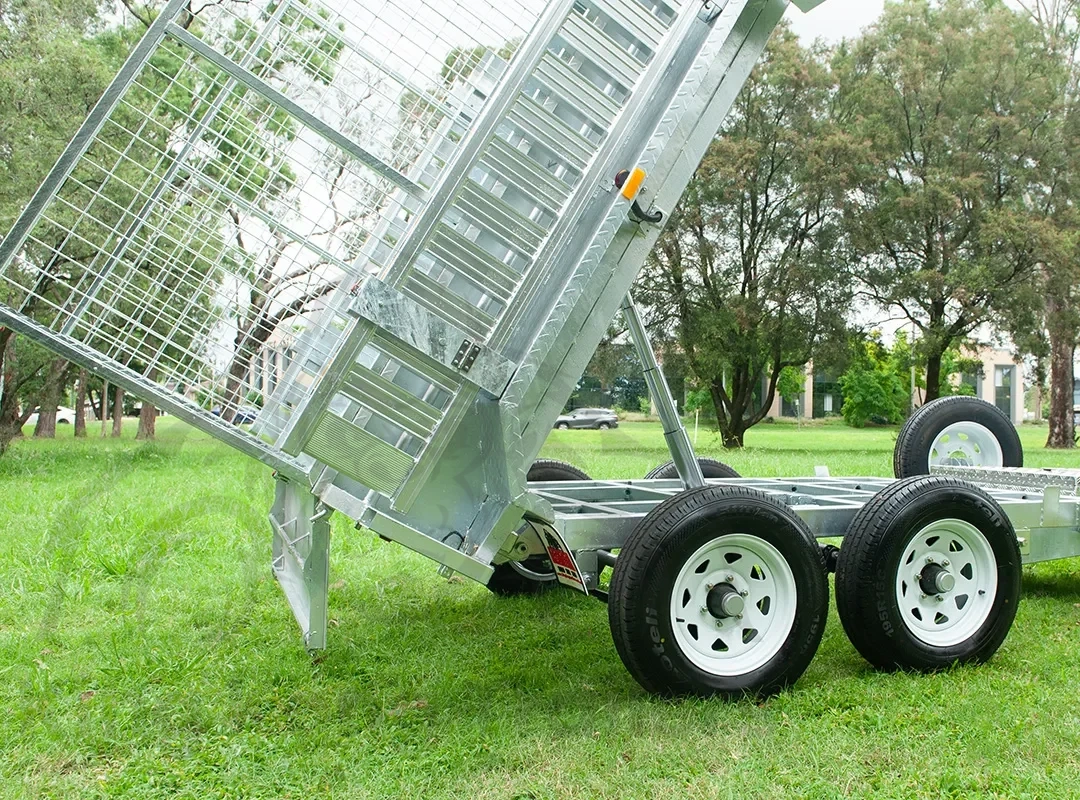

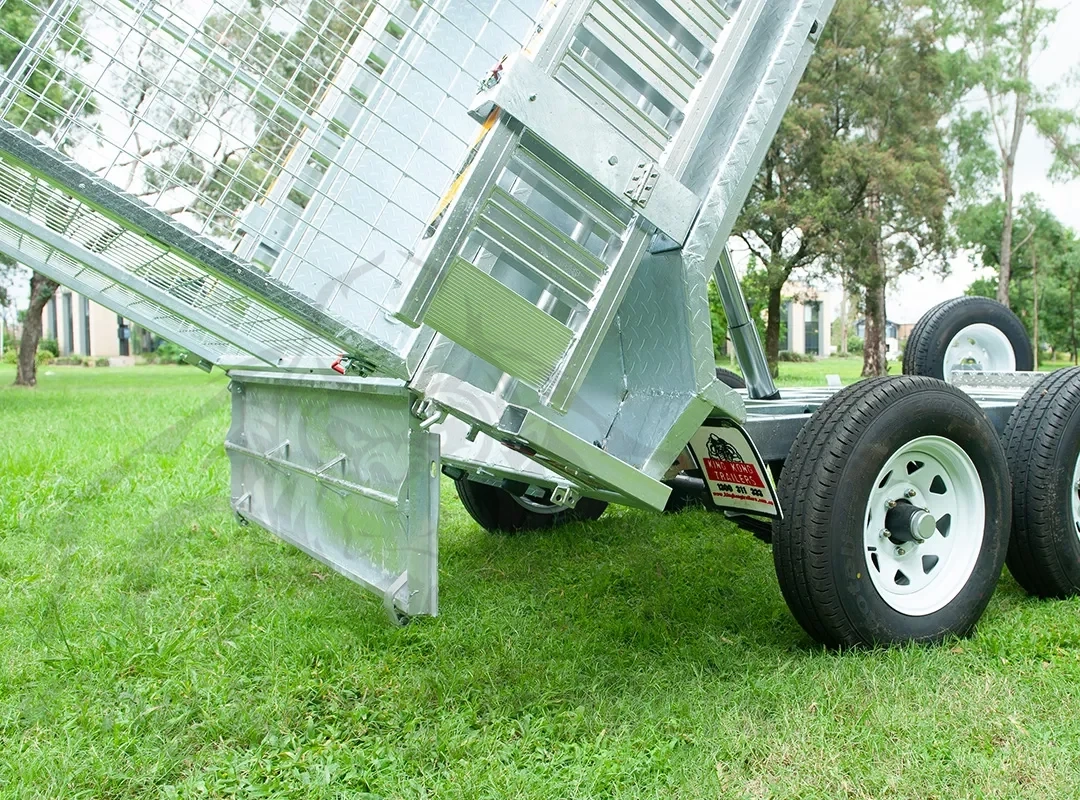

Hydraulic Tipping System
The hydraulic tipping system includes a 4.5T, 1.2m hydraulic cylinder and hydraulic power pack.
It is designed to assist with unloading suitable bulk materials such as soil, mulch, gravel and green waste.
The trailer must be positioned on firm, stable and level ground before tipping.
35 AMP Battery System
The 35 AMP battery system supports the hydraulic tipping system.
The battery system includes Australia-wide warranty support and should be maintained according to the supplied user manual.
Removable Drop-Down Gates
The removable front and rear drop-down gates provide improved access to the trailer body.
All gates must be correctly closed and secured before transport.
Checker Plate Floor
The checker plate floor provides a durable loading base for materials, equipment and general cargo.
Regular cleaning and inspection are recommended, especially after carrying soil, gravel, green waste or wet materials.
Tie-Down Rails
Tie-down rails provide practical restraint points for compatible cargo and equipment.
Only appropriately rated restraint equipment should be used.

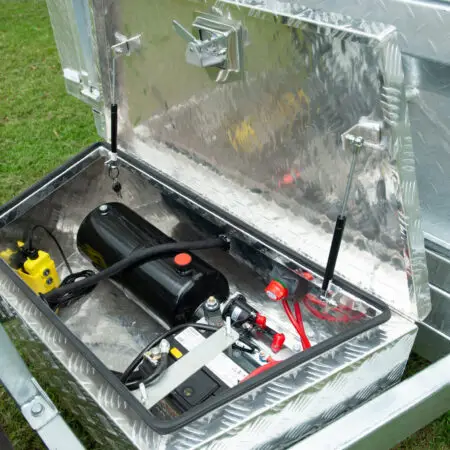

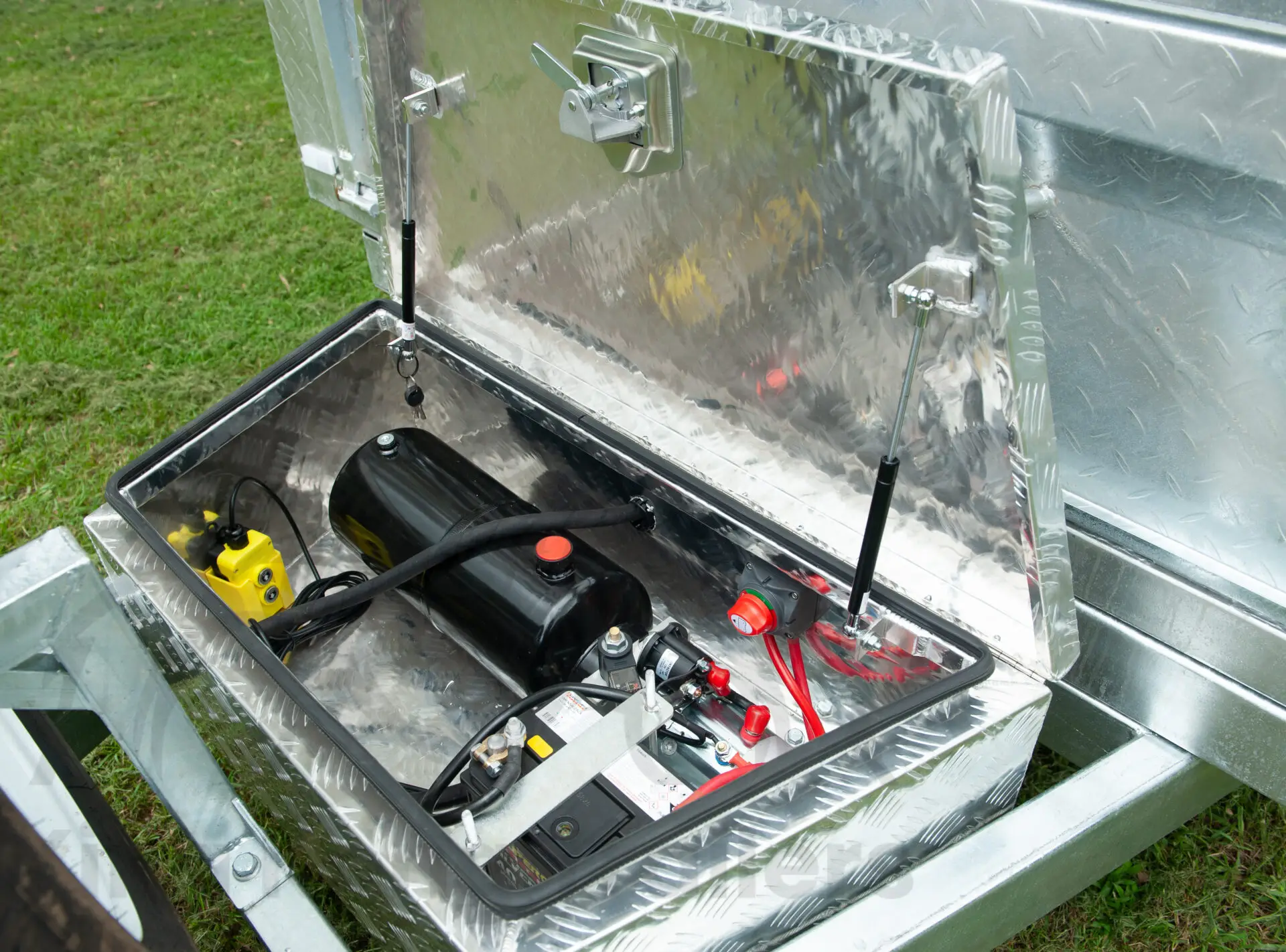

Aluminium Toolbox
An aluminium toolbox is included for storing tools, trailer accessories or small equipment.
The toolbox should be closed and secured before towing.
Electric Brakes
The trailer is fitted with 12-inch electric drum brakes on all four wheels.
A compatible electric brake controller is required in the towing vehicle.
70mm Coupling
The trailer is fitted with a 70mm coupling rated to 4500kg.
The towing vehicle and towbar must be suitable for the trailer’s actual loaded weight.
Compatible options are shown in the product
configuration section above.
What's Included
KKT-TP106U4500 hydraulic tipper trailer
Fully welded hot-dip galvanised body and chassis
Checker plate floor
Removable front drop-down gate
Removable rear drop-down gate
Tie-down rails
4.5T, 1.2m hydraulic cylinder
Hydraulic power pack
35 AMP battery system
Aluminium toolbox
User manual
Tandem axle running gear
Dual 50mm solid round axles
Rocker roller suspension
12-inch electric drum brakes on all four wheels
15-inch wheels
225R15C tyres
70mm coupling rated to 4500kg
8-inch swing-up jockey wheel
12V–24V LED lighting system
7-pin flat trailer plug
Cargo, machinery, straps, registration and items not specifically listed in the selected configuration or quotation are not included.
The trailer has a maximum 4500kg ATM.
The stated tare weight is 1180kg.
The calculated payload is 3320kg.
Final payload should be confirmed against the certified tare weight shown on the compliance plate.
Loads must be evenly distributed and properly secured before towing.
The hydraulic tipping system must only be operated on firm, stable and level ground.
Do not tip the trailer with an uneven, unsecured or overloaded load.
Front gate, rear gate, toolbox and loose items must be fully secured before towing.
A compatible electric brake controller is required in the towing vehicle.
The towing vehicle and towbar must be rated for the trailer’s actual loaded weight.
Images may show optional equipment or a representative configuration.
Component appearance may vary slightly between production batches.
